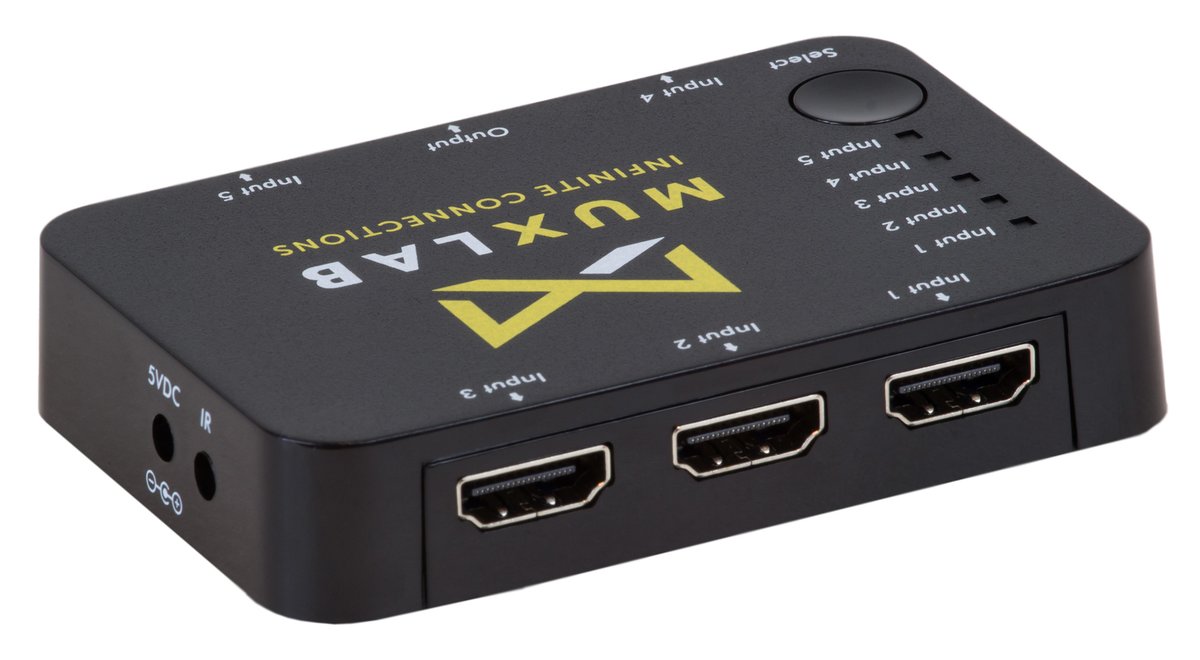

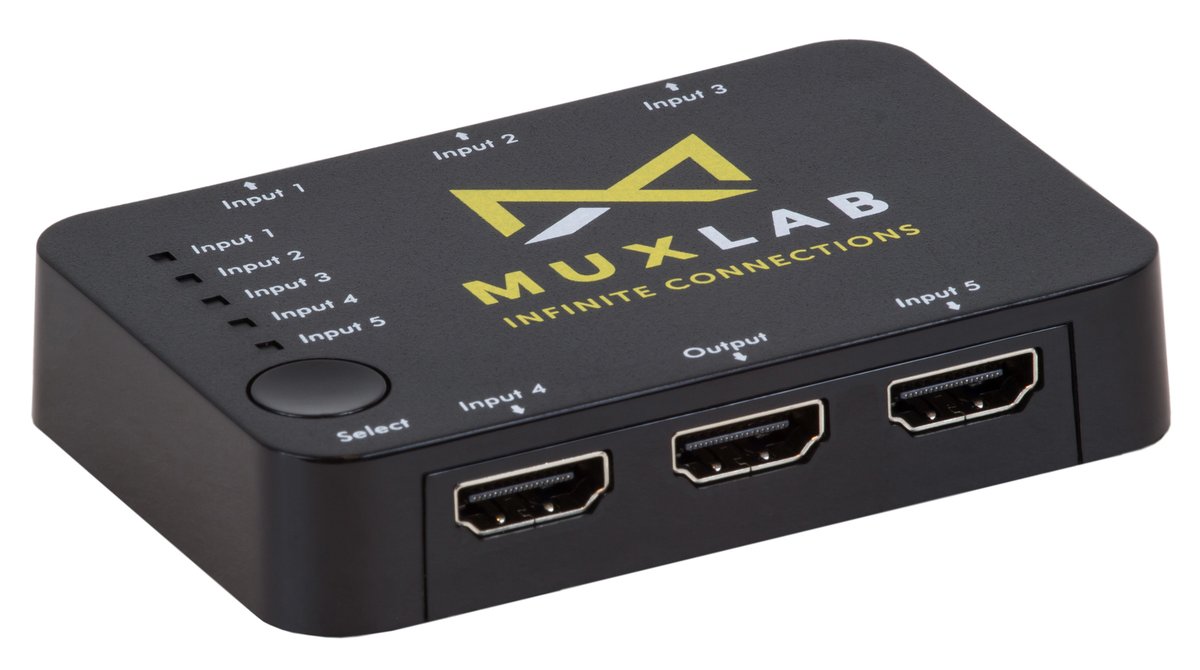

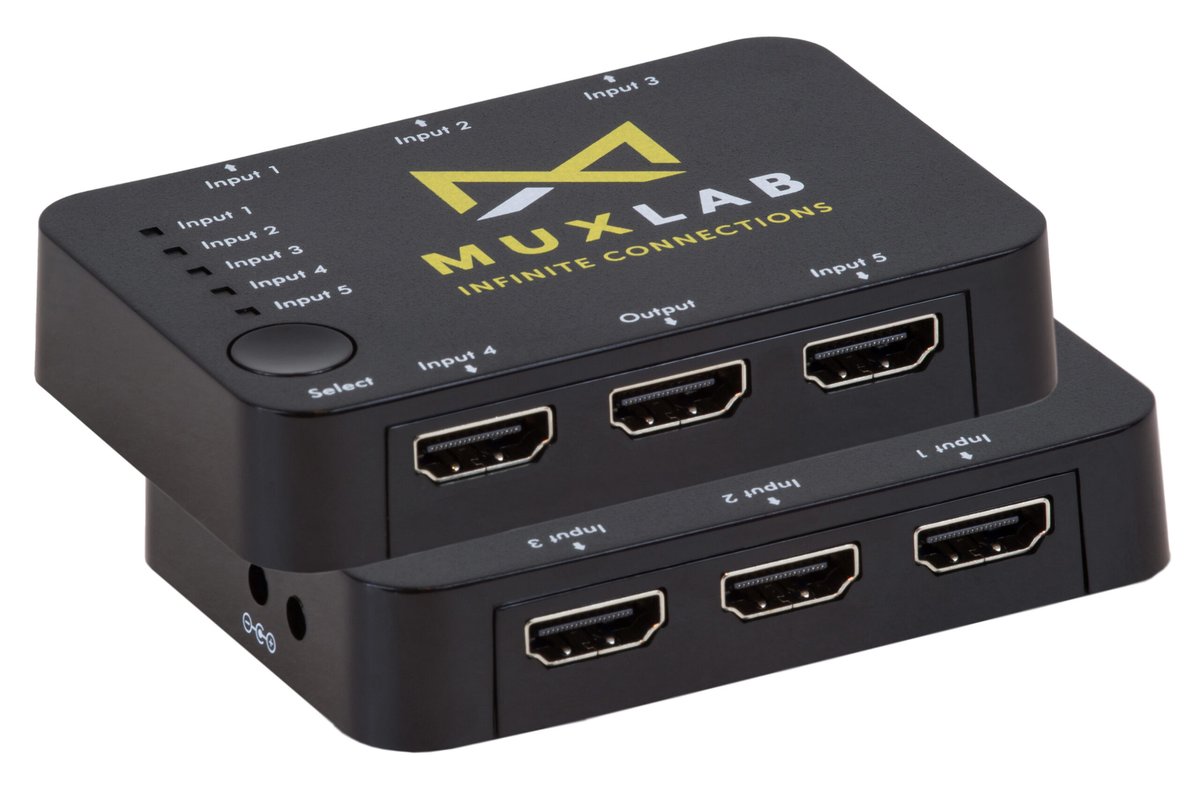

MuxLab 100526 HDMI 5x1 Switcher, 4K/60
The 100526 selects one of five HDMI inputs and sends it to a single display at up to 4K (3840 x 2160) at 60Hz 4:4:4, 8-bit color. HDR, HDR10, Dolby Vision, HLG, and all 3D video formats pass through, and the unit is HDCP 2.2/1.x and DVI 1.0 compliant.

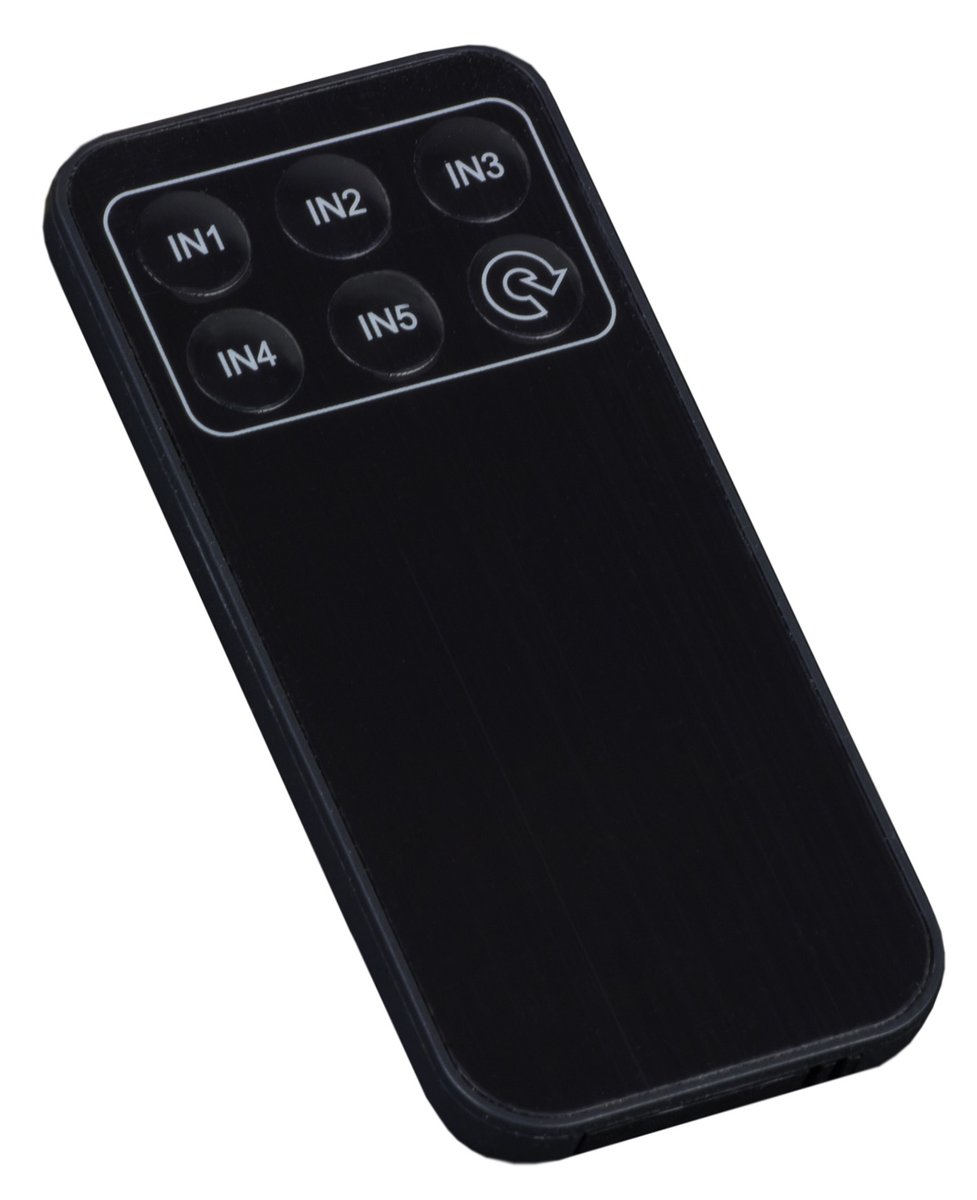

Switching is handled locally with a push button or remotely with the supplied IR remote, and power draw is low enough that the switcher can live behind a display without a fan. It suits a huddle room or classroom where several devices share one screen.
- Output Ports1xHDMI Type A (19-pin female)
- Video ResolutionUp to 4K/60Hz
- Power Consumption1.5W
- Video Bandwidth18Gbps
- Color Depth8-bit (4K/60Hz)
| Video Resolution | Up to 4K/60Hz |
|---|---|
| Video Bandwidth | 18Gbps |
| Color Depth | 8-bit (4K/60Hz) |
| Color | Space RGB, YCbCr 4:4:4 / . YUV 4:4:4 |
| Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio ESD Protection Human Body model: +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) |
| Output Ports | 1xHDMI Type A (19-pin female) |
| Connection | Input Ports 5xHDMI Type A (19-pin female) 1xIR IN [3.5mm Stereo Mini-jack] |
| Power Consumption | 1.5W |
