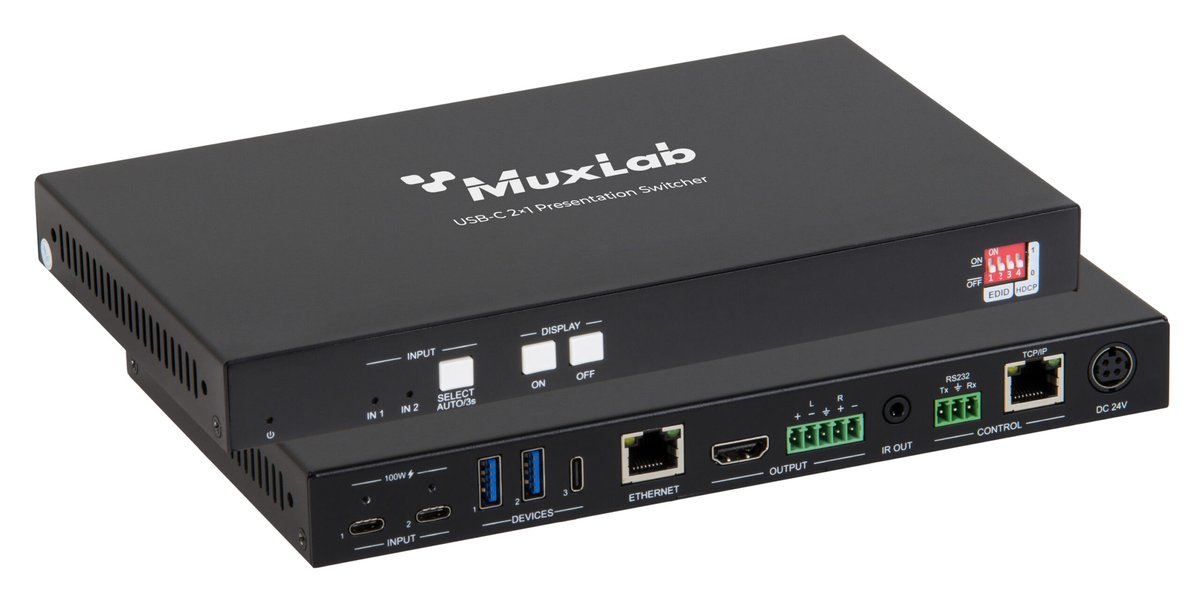

MuxLab 500531 USB-C 2x1 Presentation Switcher
The 500531 takes two USB-C laptops and switches either one to a single HDMI display at 4K/60 4:4:4, with automatic downscaling for displays limited to 1080p. Network pass-through keeps a laptop's Ethernet connection alive through the same cable.
Up to 100W of USB-C charging means a presenter's laptop tops up while connected instead of running down its battery, and control is available from the front panel, an auto-detect mode, or a control system over RS232 or TCP/IP.
- Dimensions0.85 H x 3.87 W in (9.84 × 2.17 cm)
- InputTwo USB-C inputs
- OutputOne HDMI output
- Signal FormatAutomatic 4K to 1080p downscaling; 1G network pass-through
- Resolution4K@60Hz 4:4:4
| HDMI Compliance | 2.0, 18Gbps |
|---|---|
| Signal Format | Automatic 4K to 1080p downscaling; 1G network pass-through |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP 2.2 |
| HDR | HDR10 |
| Audio | De-embedded to balanced analog |
| Input | Two USB-C inputs |
| Output | One HDMI output |
| Weight | 1.680 kg |
| Dimensions | 0.85 H x 3.87 W in (9.84 × 2.17 cm) |
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
