Marshall Cameras

PTZ Cameras:

Model Image Description Pricing
CV610-UB Marshall CV610-UB 10x HD30 USB2.0 PTZ Camera
  • 5 Megapixel 1/2.8-inch Sensor
  • USB2.0 video output
  • Full-HD Video: 1920x1080p, 1280x720p, 640x480p
  • Frames per Second: 30fps, 15fps, 8fps
  • 10x Optical Zoom 4.7~47mm (F1.8~14) - 12x Digital Zoom
  • Angle-of-View: 62.5° wide, 6.5° telephoto
  • Pan-Tilt Range: 340 degree Horizontal Pan Range - 120 degree Tilt Range
  • Control via common PC GUI software, IR Remote, RS232, RS485, USB2.0
  • Integrate into a variety of familiar UC video programs (UVC1.5 protocol)
  • USB2.0 and 12V Power Cord included with camera
  • Up to 128 presets
  • Please call or
    Email us for pricing
    CV610-U3-V2 Marshall CV610-U3-V2 10x HD60 USB/HDI PTZ Camera
  • 2-Megapixel HD Sensor
  • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
  • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
  • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
  • Full-HD resolutions: 1920x1080p, 1280x720p
  • Frame rates: 60, 50, 30, 25 fps
  • HDMI output resolution can be set independently of USB output resolutions
  • Onboard audio mic & 3.5mm TRS audio jack (optional input)
  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
  • Up to 128 presets with quiet, smooth transitions
  • Please call or
    Email us for pricing
    CV610-U3-V2 Marshall CV610-U3W-V2 10x HD60 USB/HDI PTZ Camera
    Same as CV610-U3-V2 but with WHITE finish
    Please call or
    Email us for pricing
    CV612HT-4K Marshall CV612HT-4K 12x UHD30 HDI/HDBT PTZ Camera
  • 1/2.3" 9MP UHD Sensor
  • 4K/UHD/HD: 3840x2160p(UHD), 1920x1080p(HD),
  • 1920x1080i(HD) & 1280x720p
  • High Speed: 59.94, 50, 29.97, 25fps (NTSC/PAL)
  • Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical - 12x digital
  • Wide Angle-of-View @ 3.9mm - 74° Panoramic AOV
  • Pan Range: -170° ~ +170°, Tilt Range: -30° ~ +90°
  • 128 preset locations with variable transition speeds
  • Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
  • HDBaseT (uncompressed), HDMI outputs
  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Please call or
    Email us for pricing
    CV620-BK4 Marshall CV620-BK4 20x HD60 3G/HDI PTZ Camera
  • 2-megapixel 1/2.8-inch HD sensor
  • HD output: 1920x1080i, 1920x1080p, 1280x720p
  • High speed: 60, 59.94, 50, 30, 29.97, and 25 fps
  • 20X optical zoom (5.3~110mm/ F1.6~3.8) with 12X digital zoom
  • 340° horizontal pan/ 120° vertical tilt
  • Smooth synchronous pan, tilt, zoom, and focus for professional transitions
  • 3G/HDSDI (BNC) and HDMI simultaneous video outputs
  • Variable Transition Speeds: 5~300° per second with optional motionless transition
  • Supports RS232/RS422 remote control interface
  • Please call or
    Email us for pricing
    CV620-WH4 Marshall CV-620-WH4 20x HD60 3G/HDI PTZ Camera
    Same as CV620-BK4 but with WHITE finish
    Please call or
    Email us for pricing
    CV630-IP Marshall CV-630-IP 30x UHD30 IP (HEVC) PTZ Camera
  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • 3GSDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • RTSP / RTMP / MPEG-TS / Haivision SRT
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Front tally light
  • Please call or
    Email us for pricing
    CV630-IPW Marshall CV-630-IPW 30x UHD30 IP (HEVC) PTZ Camera
    Same as CV-630-IP but with WHITE finish
    Please call or
    Email us for pricing
    CV630-NDI Marshall CV-630-NDI 30x UHD30 NDI® PTZ Camera
  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • Simultaneous 3GSDI and HDMI with NDI|HX plug and play
  • Simultaneous pan, tilt, and zoom
  • NDI|HX 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Simply Connect to any Ethernet Port - THAT'S IT
  • Video, Audio, Control, Tally, and Power (PoE+) over ONE ETHERNET CABLE
  • Please call or
    Email us for pricing
    CV630-NDIW Marshall CV630-NDIW 30x UHD30 NDI® PTZ Camera
    Same as CV630-NDI but in WHITE finish.
    Please call or
    Email us for pricing
    CV730-BK Marshall CV730-BK 30x UHD60 PTZ Camera
  • 8.5 Megapixel UHD Sensor (1/1.8")
  • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
  • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs
  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
  • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power Supply included and PoE++ (IEEE802.3bt)
  • Please call or
    Email us for pricing
    CV730-WH Marshall CV730-WH 30x UHD60 PTZ Camera

  • Same as CV730-BK but with WHITE finish
  • Please call or
    Email us for pricing
    CV730-NDI Marshall 30x UHD60 NDI® PTZ Camera
    CV730-NDI is the first UHD60 PTZ camera with NDI|HX.
  • 8.5 Megapixel UHD Sensor (1/1.8")
  • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
  • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and NDI|HX simultaneous outputs
  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
  • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power Supply included and PoE++ (IEEE802.3bt)
  • Please call or
    Email us for pricing
    CV730-NDIW Marshall 30x UHD60 NDI® PTZ Camera
    CV730-NDIW is the first UHD60 PTZ camera with NDI|HX.
  • Same as CV730-NDI but with WHITE finish
  • Please call or
    Email us for pricing
    Model Description Pricing
    Marshall CV610-UB 10x HD30 USB2.0 PTZ Camera
  • 5 Megapixel 1/2.8-inch Sensor
  • USB2.0 video output
  • Full-HD Video: 1920x1080p, 1280x720p, 640x480p
  • Frames per Second: 30fps, 15fps, 8fps
  • 10x Optical Zoom 4.7~47mm (F1.8~14) - 12x Digital Zoom
  • Angle-of-View: 62.5° wide, 6.5° telephoto
  • Pan-Tilt Range: 340 degree Horizontal Pan Range - 120 degree Tilt Range
  • Control via common PC GUI software, IR Remote, RS232, RS485, USB2.0
  • Integrate into a variety of familiar UC video programs (UVC1.5 protocol)
  • USB2.0 and 12V Power Cord included with camera
  • Up to 128 presets
  • Please call or
    Email us for pricing
    Marshall CV610-U3-V2 10x HD60 USB/HDI PTZ Camera
  • 2-Megapixel HD Sensor
  • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
  • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
  • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
  • Full-HD resolutions: 1920x1080p, 1280x720p
  • Frame rates: 60, 50, 30, 25 fps
  • HDMI output resolution can be set independently of USB output resolutions
  • Onboard audio mic & 3.5mm TRS audio jack (optional input)
  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
  • Up to 128 presets with quiet, smooth transitions
  • Please call or
    Email us for pricing
    Marshall CV610-U3W-V2 10x HD60 USB/HDI PTZ Camera
    Same as CV610-U3-V2 but with WHITE finish
    Please call or
    Email us for pricing
    Marshall CV612HT-4K 12x UHD30 HDI/HDBT PTZ Camera
  • 1/2.3" 9MP UHD Sensor
  • 4K/UHD/HD: 3840x2160p(UHD), 1920x1080p(HD),
  • 1920x1080i(HD) & 1280x720p
  • High Speed: 59.94, 50, 29.97, 25fps (NTSC/PAL)
  • Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical - 12x digital
  • Wide Angle-of-View @ 3.9mm - 74° Panoramic AOV
  • Pan Range: -170° ~ +170°, Tilt Range: -30° ~ +90°
  • 128 preset locations with variable transition speeds
  • Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
  • HDBaseT (uncompressed), HDMI outputs
  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Please call or
    Email us for pricing
    Marshall CV620-BK4 20x HD60 3G/HDI PTZ Camera
  • 2-megapixel 1/2.8-inch HD sensor
  • HD output: 1920x1080i, 1920x1080p, 1280x720p
  • High speed: 60, 59.94, 50, 30, 29.97, and 25 fps
  • 20X optical zoom (5.3~110mm/ F1.6~3.8) with 12X digital zoom
  • 340° horizontal pan/ 120° vertical tilt
  • Smooth synchronous pan, tilt, zoom, and focus for professional transitions
  • 3G/HDSDI (BNC) and HDMI simultaneous video outputs
  • Variable Transition Speeds: 5~300° per second with optional motionless transition
  • Supports RS232/RS422 remote control interface
  • Please call or
    Email us for pricing
    Marshall CV-620-WH4 20x HD60 3G/HDI PTZ Camera
    Same as CV620-BK4 but with WHITE finish
    Please call or
    Email us for pricing
    Marshall CV-630-IP 30x UHD30 IP (HEVC) PTZ Camera
  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • 3GSDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • RTSP / RTMP / MPEG-TS / Haivision SRT
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Front tally light
  • Please call or
    Email us for pricing
    Marshall CV-630-IPW 30x UHD30 IP (HEVC) PTZ Camera
    Same as CV-630-IP but with WHITE finish
    Please call or
    Email us for pricing
    Marshall CV-630-NDI 30x UHD30 NDI® PTZ Camera
  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • Simultaneous 3GSDI and HDMI with NDI|HX plug and play
  • Simultaneous pan, tilt, and zoom
  • NDI|HX 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Simply Connect to any Ethernet Port - THAT'S IT
  • Video, Audio, Control, Tally, and Power (PoE+) over ONE ETHERNET CABLE
  • Please call or
    Email us for pricing
    Marshall CV630-NDIW 30x UHD30 NDI® PTZ Camera
    Same as CV630-NDI but in WHITE finish.
    Please call or
    Email us for pricing
    Marshall CV730-BK 30x UHD60 PTZ Camera
  • 8.5 Megapixel UHD Sensor (1/1.8")
  • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
  • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs
  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
  • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power Supply included and PoE++ (IEEE802.3bt)
  • Please call or
    Email us for pricing
    Marshall CV730-WH 30x UHD60 PTZ Camera

  • Same as CV730-BK but with WHITE finish
  • Please call or
    Email us for pricing
    Marshall CV730-NDI 30x UHD60 NDI® PTZ Camera
  • 8.5 Megapixel UHD Sensor (1/1.8")
  • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
  • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and NDI|HX simultaneous outputs
  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
  • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power Supply included and PoE++ (IEEE802.3bt)
  • Please call or
    Email us for pricing
    Marshall CV730-NDIW 30x UHD60 NDI® PTZ Camera

  • Same as CV730-NDI but with WHITE finish
  • Please call or
    Email us for pricing


    PTZ Controllers:

    Model Image Description Pricing
    VS-PTC-200 Marshall VS-PTC-200 PTZ Controller
    Specifically designed for Marshall's CV620 & CV612 PTZ Cameras
  • 4D Joystick allows simultaneous control over Pan, Tilt, Zoom and Focus
  • 128 Preset locations with smooth adjustable transition speeds
  • One touch controls over Brightness, Back Light, Mirror/Flip, Freeze Capture
  • Full Duplex RS-232 & RS-422 Communication Interface
  • VISCA and PELCO Protocols
  • Please call or
    Email us for pricing
    VS-PTC-IP Marshall VS-PTC-IP PTZ Controller
    Works with all Marshall PTZ Cameras
  • Cross protocol mix-control with RS232/RS422 and IP
  • Protocol support: VISCA, PELCO D/P, ONVIF, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP cameras in a network and assign IP addresses easily
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB
  • Please call or
    Email us for pricing
    Model Description Pricing
    Marshall VS-PTC-200 PTZ Controller
    Specifically designed for Marshall's CV620 & CV612 PTZ Cameras
  • 4D Joystick allows simultaneous control over Pan, Tilt, Zoom and Focus
  • 128 Preset locations with smooth adjustable transition speeds
  • One touch controls over Brightness, Back Light, Mirror/Flip, Freeze Capture
  • Full Duplex RS-232 & RS-422 Communication Interface
  • VISCA and PELCO Protocols
  • Please call or
    Email us for pricing
    Marshall VS-PTC-IP PTZ Controller
    Works with all Marshall PTZ Cameras
  • Cross protocol mix-control with RS232/RS422 and IP
  • Protocol support: VISCA, PELCO D/P, ONVIF, and VISCA over IP
  • High-quality joystick allows for effortless, one-handed pan, tilt, and zoom adjustments
  • Tactile feel with professional rocker/seesaw switch for zoom control
  • Automatically search available IP cameras in a network and assign IP addresses easily
  • Tally Indicator: Includes Normal Tally/On-Air Tally/Contact Modes
  • Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed
  • Multi-color key/button illumination indicator directs operation to specific functions
  • Control firmware upgrade available via USB
  • Please call or
    Email us for pricing


    Broadcast and ProAV Cameras:

    Model Image Description Pricing
    CV420-30X-IP Marshall CV420-30X-IP 30X Zoom IP Camera
    Ideal for use in networked A/V installations, the CV420-30X-IP offers the convenience of triple-stream (H.264/H.265/MJPEG) and HDMI outputs with audio embedding.
  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 3840x2160, 1920x1080, and 1280x720p
  • Frame-rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant
  • Please call or
    Email us for pricing
    CV355-30X-IP Marshall CV355-30X-IP 30X Zoom IP Camera
    3G/HDSDI and HDMI simultaneous outputs with audio embedding.
  • 8.5 Megapixel (1/2.5") HD sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 1920x1080 and 1280x720p
  • Frame rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG), 3G/HDSDI, and HDMI 2.0 simultaneous outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant
  • Please call or
    Email us for pricing
    Model Description Pricing
    CV420-30X-IP
    30X Zoom IP Camera

    Ideal for use in networked A/V installations, the CV420-30X-IP offers the convenience of triple-stream (H.264/H.265/MJPEG) and HDMI outputs with audio embedding.
  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 3840x2160, 1920x1080, and 1280x720p
  • Frame-rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant
  • Please call or
    Email us for pricing
    CV355-30X-IP
    30X Zoom IP Camera

    3G/HDSDI and HDMI simultaneous outputs with audio embedding.
  • 8.5 Megapixel (1/2.5") HD sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 1920x1080 and 1280x720p
  • Frame rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG), 3G/HDSDI, and HDMI 2.0 simultaneous outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant
  • Please call or
    Email us for pricing


    Miniature Cameras:

    Model Image Description Pricing
    CV503 CV503 Miniature Full-HD Camera (3G/HDSDI)
  • 3G/HDSDI output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box
  • Please call or
    Email us for pricing

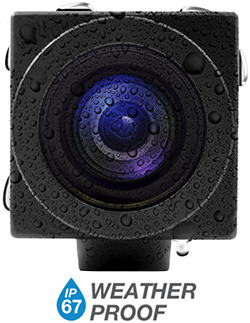

    CV503-WP CV503-WP All-Weather HD Miniature Camera (3G/HDSDI)
    The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses, remote adjustable settings, and protection from the elements in a compact IP67-rated housing.

  • Full-sized 3G/HDSDI (BNC) output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount includes stock 3.6mm lens (72°H. AOV)
  • IP67-rated weatherproof housing, wide lens cap for flexible wide shots
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjustable through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Please call or
    Email us for pricing
    CV506 CV506 Miniature Full-HD Camera (3G/HDSDI & HDMI)
  • 3G/HDSDI and HDMI simultaneous outputs
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV)
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box
  • Please call or
    Email us for pricing
    CV-506-H12 CV-506-H12 - Miniature High-Speed Camera
    The Marshall CV506-H12 is built for capturing high-speed action for detailed, high-definition slow-motion video but also able to deliver 60fps for clear crisp fast paced action.
  • HDMI output
  • 2 Megapixel (1/2.8") Sony sensor (4:2:2)
  • Interchangeable M12 Prime Lenses (3.6mm, 72° H. AOV)
  • HD (Progressive): 1080p / 720p @ 120, 100, 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps
  • TRS stereo audio inputs (mic & line level)
  • Please call or
    Email us for pricing
    CV565-MGB CV565-MGB - Miniature GENLOCK POV Camera with interchangeable 3.7mm HD Lens
    Marshall Electronics next generation Miniature GENLOCK CV565-MGB PRO-Series Camera adds the convenience of Signal Sync at camera level to ensure seamless switch transitions between cameras on location.
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Framerate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power
  • Captures sharp & vivid color images at 0.2lux (low light sensitive)
  • New WDR function adjusts automatically to bright and dark areas in FOV
  • Audio Mic/Line level audio embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Please call or
    Email us for pricing
    CV225-MB CV225-MB - Lipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)
    The CV225 lipstick camera from Marshall utilizes the latest sensor technology in a compact and sleek weatherproof design while maintaining broadcast standards.
  • END-OF-LIFE PRODUCT - Will be discontinued soon- call us for availability
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Framerate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power
  • Captures sharp & vivid color images at 0.2lux (low light sensitive)
  • New WDR function adjusts automatically to bright and dark areas in FOV
  • Audio Mic/Line level audio embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Please call or
    Email us for pricing
    CV225-M CV225-M - Lipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)
    Same as CV225-MB except:
  • 1080i60/50, 1080p60/50/30/25, 720p60/50/30/25 fps
  • END-OF-LIFE PRODUCT - Will be discontinued soon- call us for availability
  • Please call or
    Email us for pricing
    Model Description Pricing
    CV503
    Miniature Full-HD Camera (3G/HDSDI)

  • 3G/HDSDI output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box
  • Please call or
    Email us for pricing
    CV503-WP
    All-Weather HD Miniature Camera (3G/HDSDI)

    The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses, remote adjustable settings, and protection from the elements in a compact IP67-rated housing.

  • Full-sized 3G/HDSDI (BNC) output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount includes stock 3.6mm lens (72°H. AOV)
  • IP67-rated weatherproof housing, wide lens cap for flexible wide shots
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjustable through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Please call or
    Email us for pricing
    CV506
    Miniature Full-HD Camera (3G/HDSDI & HDMI)

  • 3G/HDSDI and HDMI simultaneous outputs
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV)
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box
  • Please call or
    Email us for pricing
    CV-506-H12
    Miniature High-Speed Camera

    The Marshall CV506-H12 is built for capturing high-speed action for detailed, high-definition slow-motion video but also able to deliver 60fps for clear crisp fast paced action.
  • HDMI output
  • 2 Megapixel (1/2.8") Sony sensor (4:2:2)
  • Interchangeable M12 Prime Lenses (3.6mm, 72° H. AOV)
  • HD (Progressive): 1080p / 720p @ 120, 100, 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps
  • TRS stereo audio inputs (mic & line level)
  • Please call or
    Email us for pricing
    CV565-MGB
    Miniature GENLOCK POV Camera with interchangeable 3.7mm HD Lens

    Marshall Electronics next generation Miniature GENLOCK CV565-MGB PRO-Series Camera adds the convenience of Signal Sync at camera level to ensure seamless switch transitions between cameras on location.
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Framerate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power
  • Captures sharp & vivid color images at 0.2lux (low light sensitive)
  • New WDR function adjusts automatically to bright and dark areas in FOV
  • Audio Mic/Line level audio embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Please call or
    Email us for pricing
    CV225-MB
    Lipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)

    The CV225 lipstick camera from Marshall utilizes the latest sensor technology in a compact and sleek weatherproof design while maintaining broadcast standards.
  • END-OF-LIFE PRODUCT - Will be discontinued soon- call us for availability
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras
  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)
  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p
  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps
  • Camera will adjust to Resolution & Framerate of Sync source
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS-485 connect, 12V power connector & TRS Mic/Line level (selectable) input with 2.5V power
  • Captures sharp & vivid color images at 0.2lux (low light sensitive)
  • New WDR function adjusts automatically to bright and dark areas in FOV
  • Audio Mic/Line level audio embedding w/ 2.5V power supplied
  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)
  • Free downloadable software to control camera settings via RS485 (requires USB to RS485 converter)
  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Please call or
    Email us for pricing
    CV225-MLipstick IP67 HD Camera (3G/HD-SDI) + Remote Adjust via RS485 (Visca)
    Same as CV225-MB except:
  • 1080i60/50, 1080p60/50/30/25, 720p60/50/30/25 fps
  • END-OF-LIFE PRODUCT - Will be discontinued soon- call us for availability
  • Please call or
    Email us for pricing


    M12 Mount Lens options for CV502, CV503, CV505, CV506, CV565, CV225 cameras listed above

    (longer lens cap needed for 5mm+ lenses on CV502-WP):


    Lens Notes:
    1) Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
    2) If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
    Model Image Description Pricing

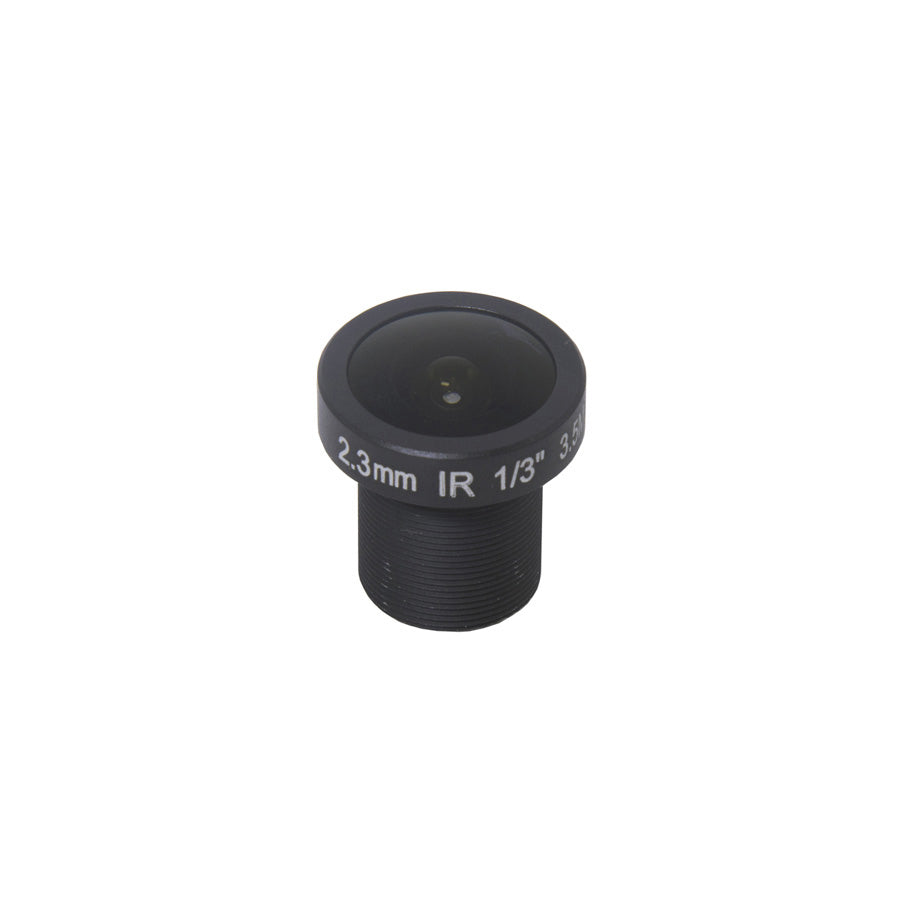

    CV-4702.3-3MP 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4702.8-3MP-IR 2.8mm F2.6 3MP M12 Lens, Horiz AOV = 100°, IR
    $29.99
    FREE UPS SHIPPING
    w/Camera Purchase

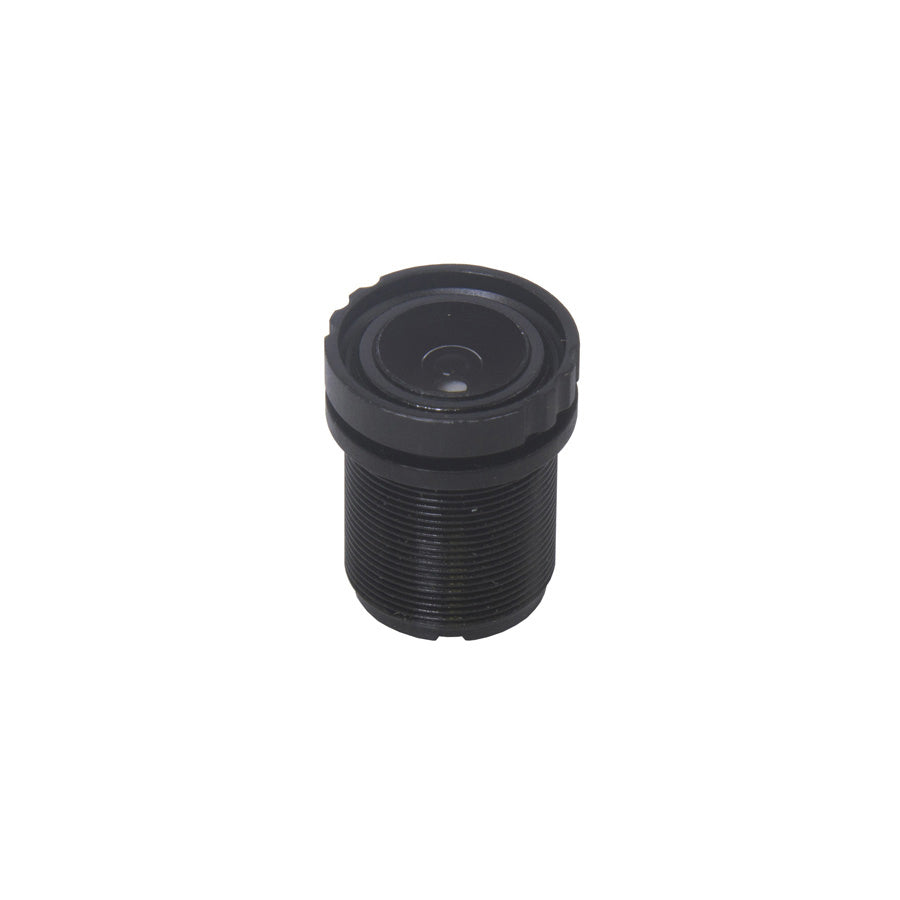

    CV-4703.6-3MP 3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase

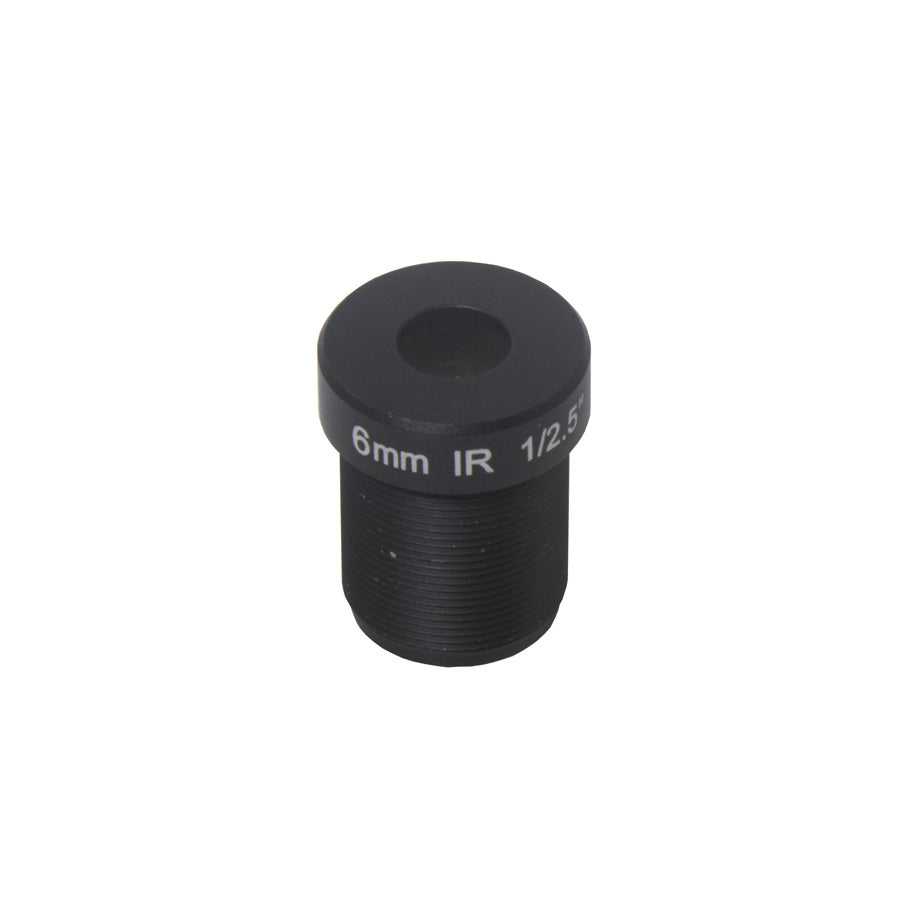

    CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°, IR
    $29.99
    FREE UPS SHIPPING
    w/Camera Purchase

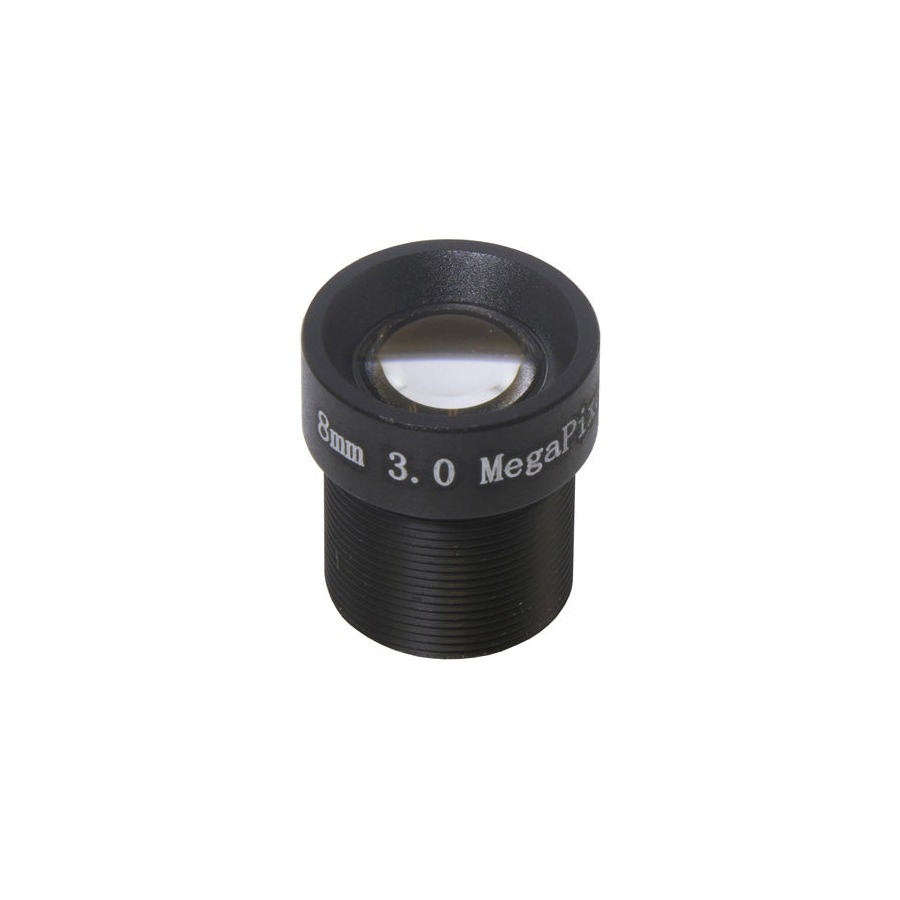

    CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase

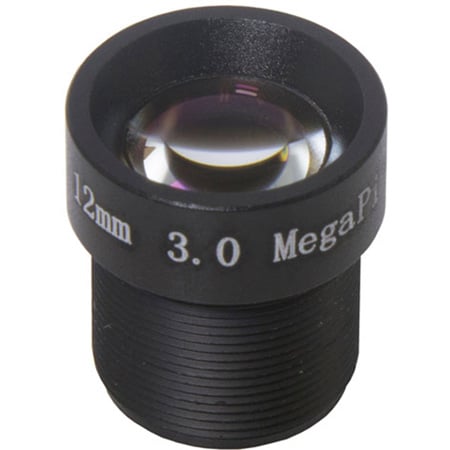

    CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase

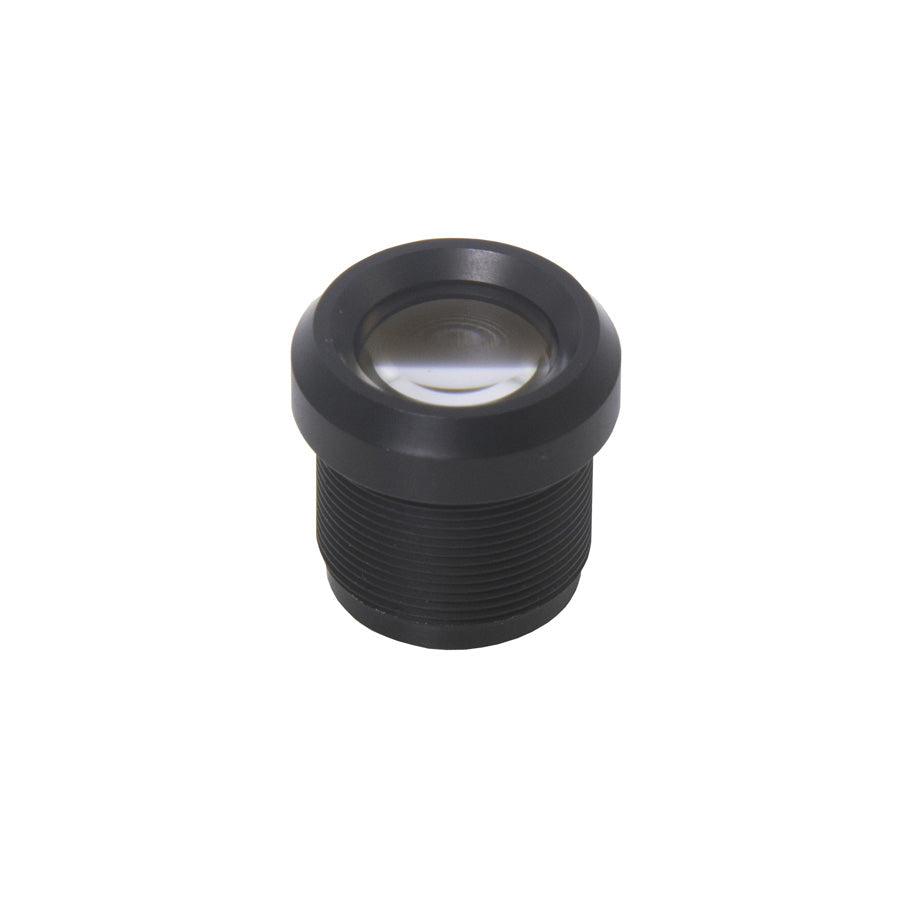

    CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    V-553.9-5MP-VIS-IR M12 3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    V-555.0-5MP-VIS-IR M12 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    V-557.6-5MP-VIS-IR M12 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    CV-2812-3MP 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~3°
    $19.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CV-0622-5MP 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
    $29.99
    FREE UPS SHIPPING
    w/$100 Purchase


    Model Description Pricing
    CV-4702.3-3MP
    2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4702.8-3MP-IR
    2.8mm F2.6 3MP M12 Lens, Horiz AOV = 100°, IR
    $29.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4703.6-3MP
    3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4706-3MP-IR
    6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°, IR
    $29.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4708.0-3MP
    8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4712.0-3MP
    12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    CV-4716.0-2MP
    16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°
    $39.99
    FREE UPS SHIPPING
    w/Camera Purchase


    V-553.9-5MP-VIS-IR M12
    3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    V-555.0-5MP-VIS-IR M12
    5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    V-557.6-5MP-VIS-IR M12
    7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")
    $59.99
    FREE UPS SHIPPING

    CV-2812-3MP
    2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~3°
    $19.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CV-0622-5MP6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
    $29.99
    FREE UPS SHIPPING
    w/$100 Purchase




    Accessories:

    Model Image Description Pricing
    CV-RCP-V2 Remote adjust, paint, and match Marshall Cameras without ever having to leave the convenience of a production room or broadcast truck. Match mini POV cameras without an OSD Menu to provide a seamless workflow and next level convenience on multi-view camera displays.
  • Seven cameras are selectable from ALL screen menus with intuitive navigation layout.
  • Global or individual camera adjustment capability without OSD (On-screen Display) Menu appearing on video stream.
  • Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.
  • Rugged machined aluminum enclosure provides durability while a larger 5-inch screen provides easier access to digital buttons.
  • Easy access USB port for field up-gradable firmware and memory saves using USB thumb drives (sold separately).
  • Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
  • Set up multiple cameras with one global preset or multiple presets that are savable on-board the RCP unit or external USB memory sticks.
  • Low power consumption requires 12V power at less than 12W (AC or battery packs).
  • Easily convert to fiber using common fiber media converters for much longer distances.
  • Please call or
    Email us for pricing
    CV-RCP-V2-RMK Top Rack Mount Bracket for CV-RCP-V2 RCP
    (mounts for CCU control board)
    $79.99
    FREE UPS SHIPPING
    w/CV-RCP-V2 Purchase


    CVM-12 CVM-12 Heavy Duty C-Clamp (1/4"-20 & 3/8" female)
  • Use with Marshall's CVM-7, CVM-11, or CVM-22 or any other compatible products
  • Attaches to tables, counters, pipes, etc.
  • $39.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CVM-7 CVM-7 7" Articulating Locking Arm
  • Durable construction, single point locking, 1/4"-20 male to 1/4"-20 male, 1/4"-20 female to 1/4"-20 male, adaptable position arm for each clamp/mount/grip, and shoe mount adapter
  • Use with CVM-10, CVM-12, or CVM-20 or any other compatible products.
  • $69.99
    FREE UPS SHIPPING

    CVM-11 CVM-11 11" Articulating Locking Arm
  • Durable construction, single point locking, 11/4"-20 male to 1/4"-20 male, 1/4"-20 female to 1/4"-20 male, adaptable position arm for each clamp/mount/grip, and shoe mount adapter
  • Use with CVM-10, CVM-12, or CVM-20 or any other compatible products.
  • $74.99
    FREE UPS SHIPPING

    CVM-13 CVM-13 10-inch Gooseneck Arm Mount, 360° Versatility
  • Flexible Gooseneck contains a 1/4"-20 (male) to a 1/4"-20 (male), perfect for mounting mini POV cameras.
  • Usable with CVM-12 C-Clamp, CVM-15 Wall Mount Plate, or other 1/4"-20 setups.
  • $19.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CVM-20 CVM-20 Heavy Duty Spring Clamp (1/4"-20)
  • Durable heavy duty steel, swivel head, spring clamp and pole adapter.
  • Attach to tables, counters, car windows, pipes.
  • $49.99
    FREE UPS SHIPPING
    w/$100 Purchase


    Model Description Pricing
    CV-RCP-V2
    Remote adjust, paint, and match Marshall Cameras without ever having to leave the convenience of a production room or broadcast truck. Match mini POV cameras without an OSD Menu to provide a seamless workflow and next level convenience on multi-view camera displays.
  • Seven cameras are selectable from ALL screen menus with intuitive navigation layout.
  • Global or individual camera adjustment capability without OSD (On-screen Display) Menu appearing on video stream.
  • Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more.
  • Rugged machined aluminum enclosure provides durability while a larger 5-inch screen provides easier access to digital buttons.
  • Easy access USB port for field up-gradable firmware and memory saves using USB thumb drives (sold separately).
  • Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access.
  • Set up multiple cameras with one global preset or multiple presets that are savable on-board the RCP unit or external USB memory sticks.
  • Low power consumption requires 12V power at less than 12W (AC or battery packs).
  • Easily convert to fiber using common fiber media converters for much longer distances.
  • Please call or
    Email us for pricing
    CV-RCP-V2-RMK
    Top Rack Mount Bracket for CV-RCP-V2 RCP
    (mounts for CCU control board)
    $79.99
    FREE UPS SHIPPING
    w/CV-RCP-V2 Purchase


    CVM-12
    CVM-12 Heavy Duty C-Clamp (1/4"-20 & 3/8" female)
  • Use with Marshall's CVM-7, CVM-11, or CVM-22 or any other compatible products
  • Attaches to tables, counters, pipes, etc.
  • $39.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CVM-7
    7" Articulating Locking Arm
  • Durable construction, single point locking, 1/4"-20 male to 1/4"-20 male, 1/4"-20 female to 1/4"-20 male, adaptable position arm for each clamp/mount/grip, and shoe mount adapter
  • Use with CVM-10, CVM-12, or CVM-20 or any other compatible products.
  • $69.99
    FREE UPS SHIPPING

    CVM-11
    11" Articulating Locking Arm
  • Durable construction, single point locking, 11/4"-20 male to 1/4"-20 male, 1/4"-20 female to 1/4"-20 male, adaptable position arm for each clamp/mount/grip, and shoe mount adapter
  • Use with CVM-10, CVM-12, or CVM-20 or any other compatible products.
  • $74.99
    FREE UPS SHIPPING

    CVM-13
    10-inch Gooseneck Arm Mount, 360° Versatility
  • Flexible Gooseneck contains a 1/4"-20 (male) to a 1/4"-20 (male), perfect for mounting mini POV cameras.
  • Usable with CVM-12 C-Clamp, CVM-15 Wall Mount Plate, or other 1/4"-20 setups.
  • $19.99
    FREE UPS SHIPPING
    w/$100 Purchase


    CVM-20
    Heavy Duty Spring Clamp (1/4"-20)
  • Durable heavy duty steel, swivel head, spring clamp and pole adapter.
  • Attach to tables, counters, car windows, pipes.
  • $49.99
    FREE UPS SHIPPING
    w/$100 Purchase






    G&G Technologies

    280 North Midland Avenue, Bldg. F, Suite 202

    Saddle Brook, NJ 07663

    800-422-2920 201-791-1400

    Send us email Sales Terms & Conditions Your Cart

    Better Business Bureau

    Not responsible for typographical errors.

    ©1988-2021 G&G Technologies, Inc. All rights reserved.
