Marshall Electronics CVM-26 Camera Housing
The CVM-26 is an all-metal housing with an integrated sun hood, built to protect Marshall's compact and miniature cameras in demanding, all-weather point-of-view positions. Its rugged shell shields the camera body while a three-position sun hood cuts glare and flare from changing light.

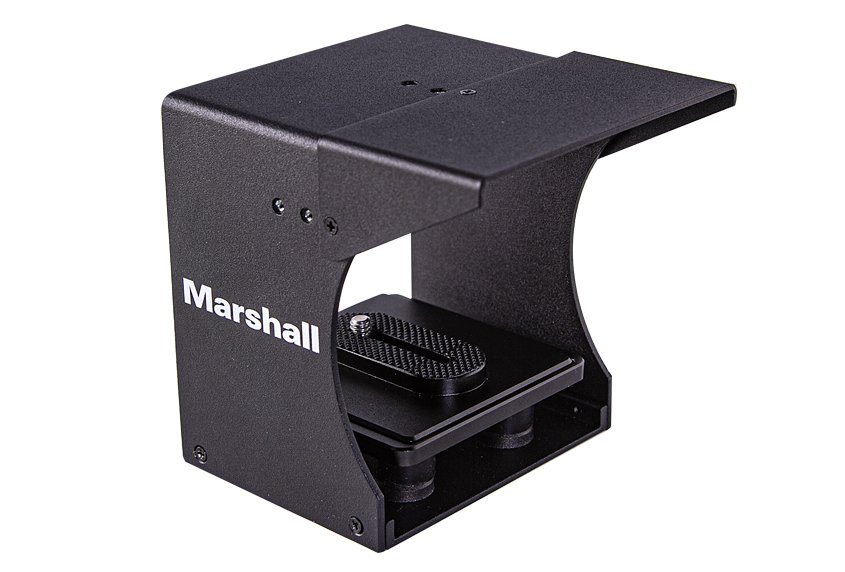

Inside, four rubber gasket shock mounts and a removable mounting plate isolate and secure the camera, which can weigh up to 5 pounds. A 1/4-inch thread on the base drops it onto standard mounts. It fits a wide range of Marshall bodies including the CV504, CV508, CV566, CV568, CV570, CV574, CV346, CV348, CV366, CV368, CV370, CV374, and CV380-CS.
| Construction | All-metal housing |
|---|---|
| Maximum Camera Weight | 5 lbs |
| Sun Hood | 3-position placement |
| Mounting | 4 rubber gasket shock mounts, removable mounting plate |
| Base Thread | 1/4 inch |
| Compatible Cameras | CV504, CV508, CV566, CV568, CV570, CV574, CV346, CV348, CV366, CV368, CV370, CV374, CV380-CS |
