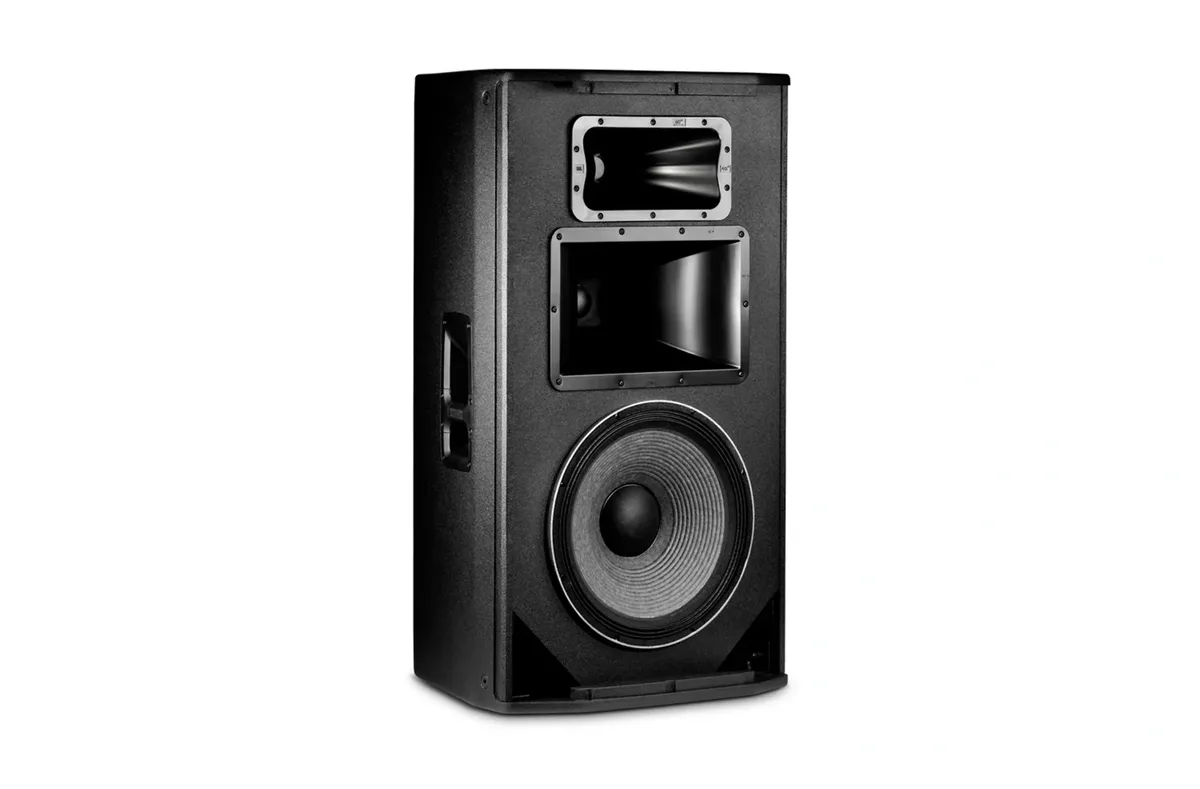

JBL Professional JBL SRX835 Passive 15-inch three-way bass-reflex loudspeaker

The SRX835 is the passive three-way box in the SRX800 line. A JBL 2275F woofer, 2107H midrange and 2432H compression driver cross at 330 Hz and 2.4 kHz behind a tight 60 by 40 degree horn - a narrower pattern than the two-way models, meant for throwing down a room rather than covering a wide front.

It is rated 800 W continuous into 8 ohms at 95 dB sensitivity, reaching 32 Hz at -10 dB. Connection is NL4 in and NL4 loop-through, selectable for passive or bi-amp operation. A single 36 mm pole socket and twelve M10 points cover stand and flown use. An external amplifier is required.

Type	Passive 15-inch three-way bass-reflex loudspeaker
Nominal impedance	8 ohms
System power rating	800 W continuous / 1600 W program / 3200 W peak
Maximum SPL	124 dB continuous, 130 dB peak
Sensitivity	95 dB
Frequency range (-10 dB)	32 Hz - 20 kHz
Coverage pattern	60 x 40 degrees
Transducers	JBL 2275F woofer; JBL 2107H midrange; JBL 2432H compression driver
Crossover frequencies	330 Hz and 2.4 kHz
Inputs	NL4 input and NL4 loop-through, +/-1 or +/-2 selectable; passive or bi-amp
Enclosure	18 mm DuraFlex-coated plywood, Obsidian finish
Mounting	Single 36 mm pole socket, 12 x M10 suspension points
Dimensions (H x W x D)	476 x 544 x 984 mm (18.74 x 21.4 x 38.74 in)
Net weight	43.1 kg (95 lb)
