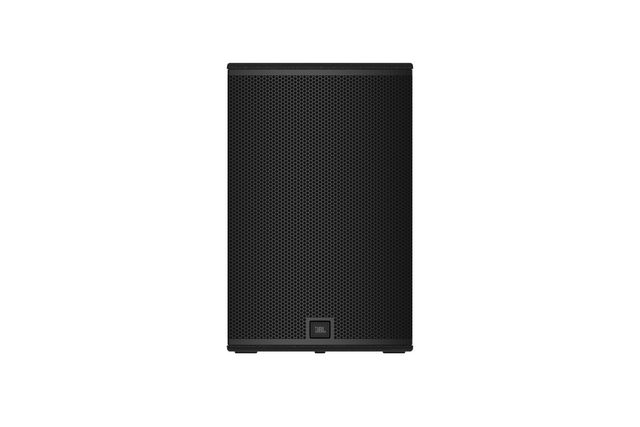

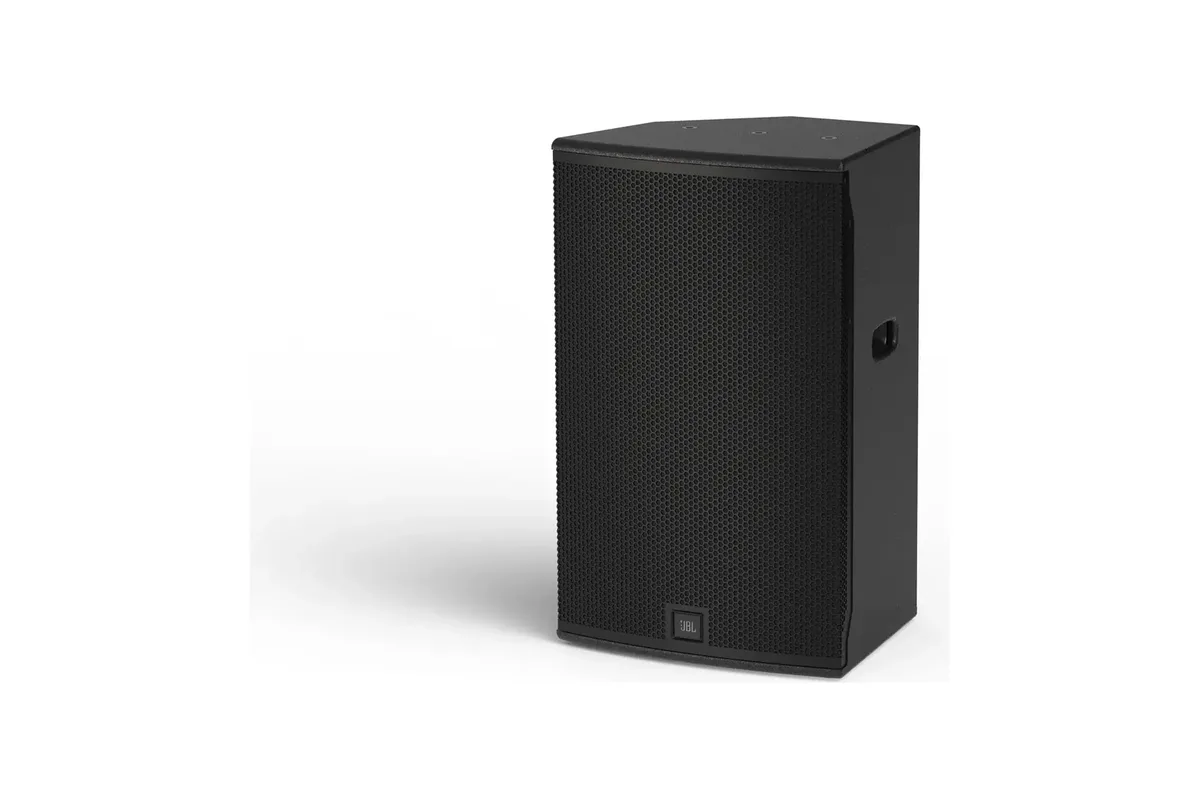

JBL Professional JBL SRX915M Powered two-way point-source loudspeaker / stage monitor

The SRX915M is the higher-headroom point-source box in the SRX900 line. A JBL 275F 15-inch ferrite Differential Drive woofer and a 2408H-1 compression driver sit behind a rotatable 90 by 60 degree Progressive Transition waveguide, giving 134 dB with response to 50 Hz. On its side it provides a 45-degree monitor angle.

Power and DSP are on board: 600 W continuous, a rear LCD, 24 adjustable filters, 2,000 ms of delay and an 80 Hz high-pass preset for use with SRX900 subwoofers. Voicing and phase response are matched to the SRX900 line arrays. Seven QuickLink M10 points are provided for suspension and accessories, and the cabinet is birch plywood in DuraFlex.

Type	Powered two-way point-source loudspeaker / stage monitor
Amplifier design	Class D
Continuous power rating	600 W (LF 400 W / HF 200 W)
Maximum SPL	134 dB
Frequency range (-10 dB)	50 Hz - 20 kHz
Coverage pattern	90 x 60 degrees, rotatable waveguide
LF driver	(1) JBL 275F 15-inch ferrite Differential Drive, dual 2-inch voice coil
HF driver	(1) JBL 2408H-1 1-inch exit neodymium compression driver, 1.5-inch voice coil
Monitor angle	45 degrees
DSP	24 user-adjustable filters, 2000 ms delay, 80 Hz high-pass preset
Suspension	(7) JBL QuickLink M10 points
Enclosure	Exterior-grade birch plywood, DuraFlex finish
Dimensions (H x W x D)	666 x 428 x 367 mm (26.2 x 16.9 x 14.5 in)
Net weight (each)	24.7 kg (55 lb)
