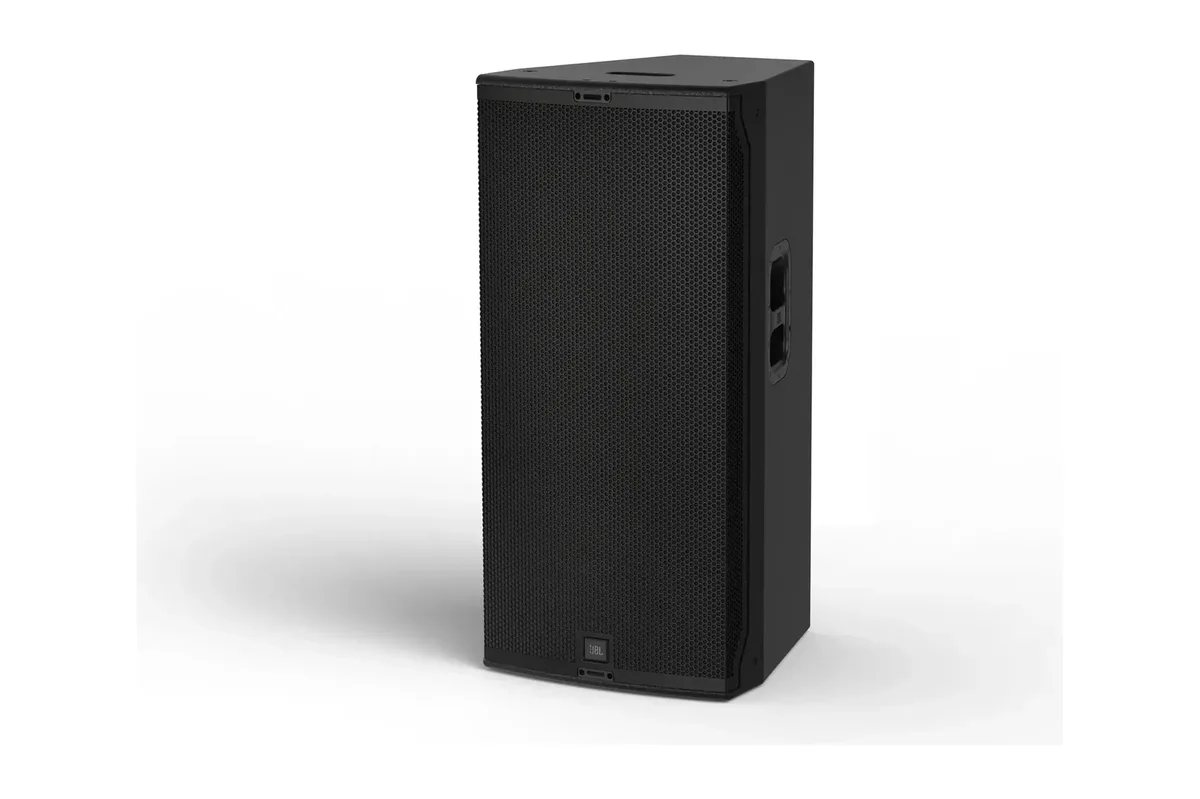

JBL Professional JBL SRX922

The SRX922 is an acoustically three-way, bi-amplified powered box in a trapezoidal cabinet. Two JBL 2273G 12-inch woofers in a symmetrical dipole arrangement flank a horn-loaded 196H-1 6-inch midrange and a 2408H-1 compression driver, on dual 90 by 60 degree Progressive Transition waveguides. Output is 138 dB with response to 40 Hz through four large flared ports.

Splitting the midrange off onto its own horn lets the two 12-inch drivers work in the band where they are most efficient, which is how the cabinet gets more output than a conventional single-15 three-way at a smaller size. Continuous power is 1,100 W, split 550 W LF and 550 W MHF, and eight QuickLink M10 points handle rigging.

Type	Powered point-source, acoustically three-way, bi-amplified
Amplifier design	Class D
Continuous power rating	1100 W (LF 550 W / MHF 550 W)
Maximum SPL	138 dB
Frequency range (-10 dB)	40 Hz - 17.5 kHz
Coverage pattern	90 x 60 degrees
LF drivers	(2) JBL 2273G 12-inch ferrite Differential Drive, dual 3-inch voice coil
MF driver	(1) JBL 196H-1 6-inch ferrite, 1.5-inch voice coil, horn-loaded
HF driver	(1) JBL 2408H-1 1-inch exit neodymium compression driver
Suspension	(8) JBL QuickLink M10 points
Enclosure	Exterior-grade birch plywood, DuraFlex finish
Dimensions (H x W x D)	944 x 440 x 505 mm (37.2 x 17.3 x 19.9 in)
Net weight (each)	45.5 kg (100 lb)
