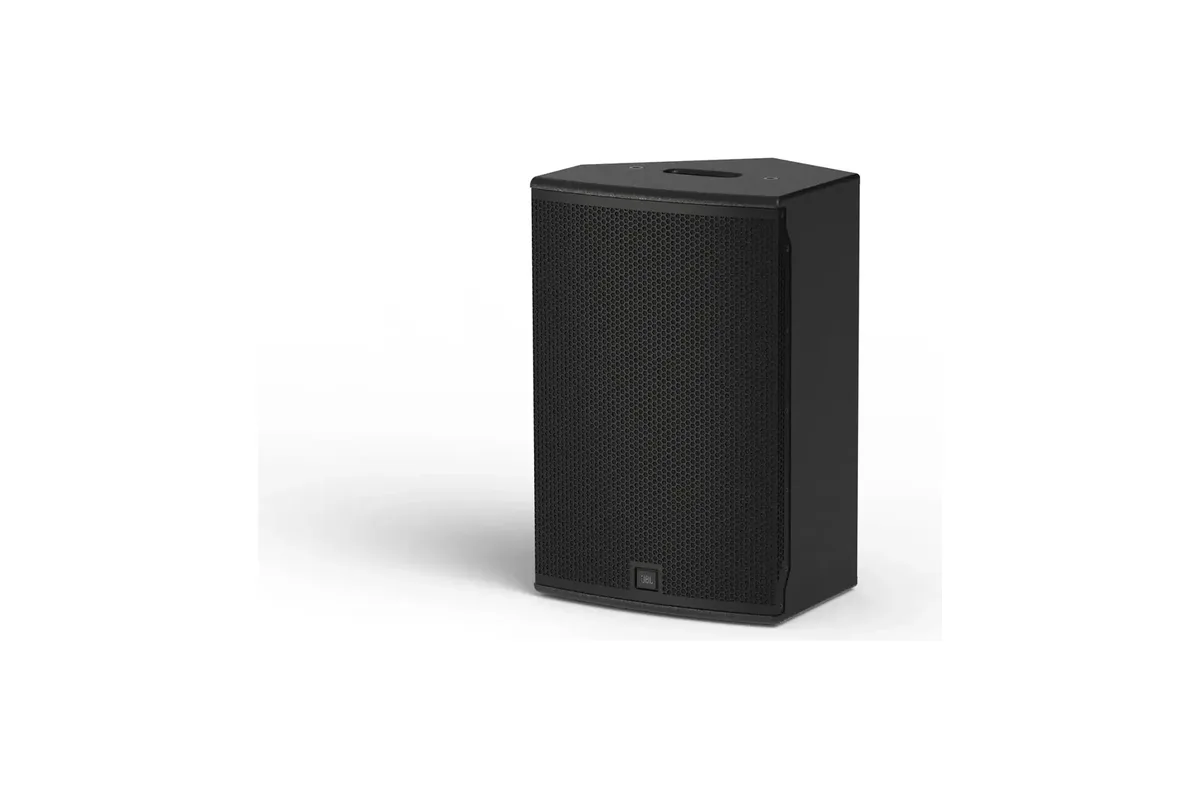

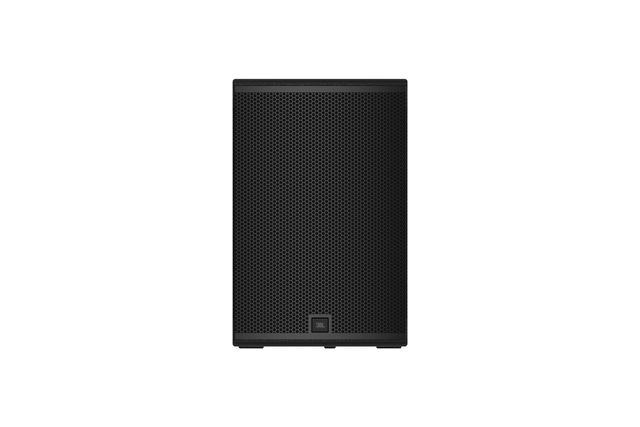

JBL Professional JBL SRX912M Powered two-way point-source loudspeaker / stage monitor

The SRX912M is a two-way powered point-source box that doubles as a wedge. A JBL 272F 12-inch ferrite Differential Drive woofer with dual 2-inch coils meets a 2408H-1 compression driver behind a 90 by 60 degree Progressive Transition waveguide, for 133 dB and low end to 50 Hz. Laid on its side the cabinet presents a 42-degree monitor angle in a low profile.

Amplification and DSP are built in: 600 W continuous, a rear LCD for setup, 24 user-adjustable filters and 2,000 ms of delay. An 80 Hz high-pass preset is there for when SRX900 subwoofers carry the bottom, and the voicing is matched to the SRX900 line-source boxes so mixed rigs stay coherent. Six QuickLink M10 points handle suspension.

Type	Powered two-way point-source loudspeaker / stage monitor
Amplifier design	Class D
Continuous power rating	600 W (LF 400 W / HF 200 W)
Maximum SPL	133 dB
Frequency range (-10 dB)	50 Hz - 20 kHz
Coverage pattern	90 x 60 degrees
LF driver	(1) JBL 272F 12-inch ferrite Differential Drive, dual 2-inch voice coil
HF driver	(1) JBL 2408H-1 1-inch exit neodymium compression driver, 1.5-inch voice coil
Monitor angle	42 degrees
DSP	24 user-adjustable filters, 2000 ms delay, 80 Hz high-pass preset
Suspension	(6) JBL QuickLink M10 points
Enclosure	Exterior-grade birch plywood, DuraFlex finish
Dimensions (H x W x D)	585 x 380 x 341 mm (23.0 x 15.0 x 13.4 in)
Net weight (each)	20.6 kg (45 lb)
