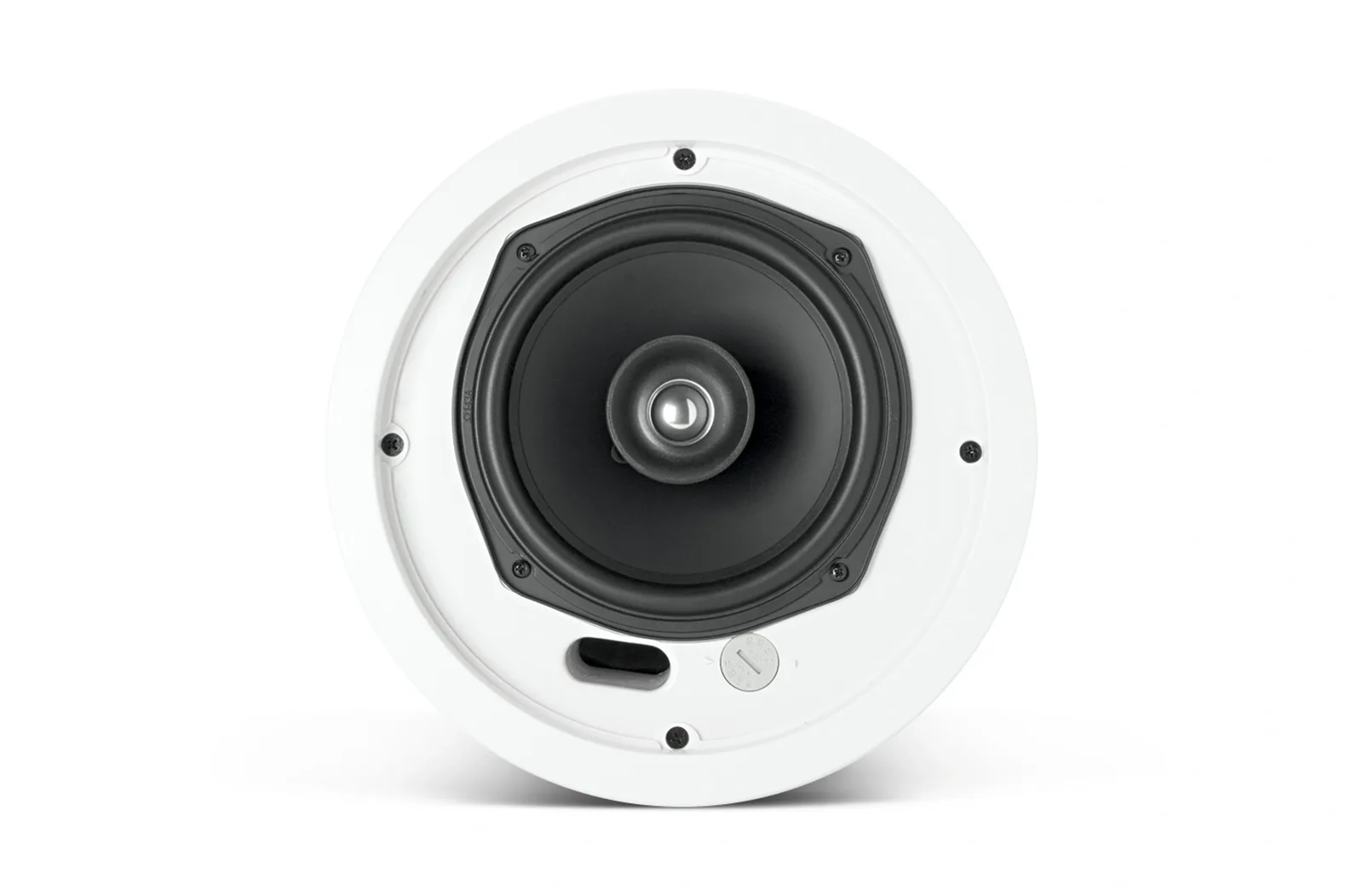

JBL Control 26CT-LS Ceiling Loudspeaker Assembly for Life Safety Applications

The Control 26CT-LS is a ceiling loudspeaker assembly for life safety applications, from the Control Contractor installed range. Transducers are LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in). Nominal coverage is 110 degrees conical. Frequency range is 80 Hz - 20 kHz. JBL rates it at IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs. Maximum SPL at 1 m is 107 dB (top 70V/100V tap).

Transformer taps are 60W, 30W, 15W (& 7.5W @ 70V). Connections are Removable locking connector with screw-down terminals. Net weight is 4.2 kg (10 lb). In the box: C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector - Euroblock.
