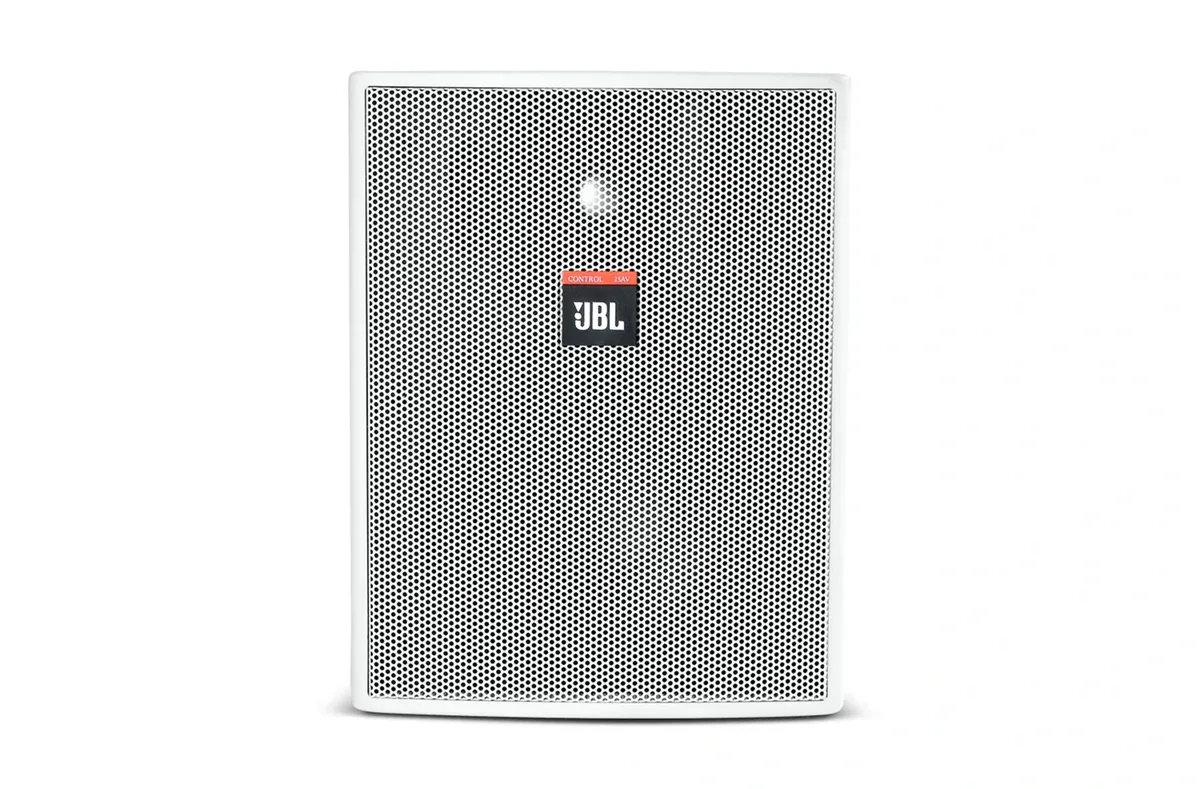

The Control 25AV-LS is a two-way professional compact loudspeaker for Life/Safety applications, from the Control Contractor installed range. Transducers are 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former HF: 20mm (.75 in) titanium coated PEI. Nominal coverage is Frequency (kHz). Frequency range is 90 Hz - 20 kHz. JBL rates it at 200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting). Maximum SPL at 1 m is 107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 92 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured.

The enclosure is ABS, (materials rated UL94-5VA). The grille is Aluminum with polyester powder coating. Transformer taps are 60W, 30W, 15W (& 7.5W @ 70V). Connections are Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm). It measures 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in). Net weight is 3.8 kg (8.4 lbs) ea.

Type	Two-Way Professional Compact Loudspeaker for Life/Safety Applications
Frequency Range (-10dB)	90 Hz - 20 kHz
Power Rating	200 Watts Continuous Program Power (at 8 ohm bypass mode) 100 Watts Continuous Pink Noise (at 8 ohm bypass mode) 60 Watts (at 60W tap setting)
Transformer Taps	60W, 30W, 15W (& 7.5W @ 70V)
Nominal Sensitivity	88dB, 1W at 1m (1kHz - 10kHz, ave., at 8 ohm bypass mode); 76 dB, 1W at 4m per EN54-24 (100 Hz - 10 kHz, ave., 8 ohm bypass mode)
Nominal Coverage	110 degrees H x 85 degrees V (1 kHz to 16 kHz, avg.)
Directivity Factor (Q)	4.8 (500 Hz to 4kHz)
Directivity Index (DI)	6.5dB (500 Hz to 4kHz)
Maximum SPL	107 dB @ 1m (3.3 ft) average, 113 dB peak, at 8 ohms bypass mode, 92 dB at 4 m (13.2 ft.) average, at 60W tap setting, measured
