JBL Professional JBL Control 28-1 Two-way 8-inch surface-mount loudspeaker, indoor/outdoor

The Control 28-1 is the 8-inch member of the Control surface-mount family, for spaces that need more level and low end than the 25-1 can give. A 200 mm woven-fibreglass woofer with a Weather-Edge frame reaches 45 Hz at -10 dB and makes 112 dB continuous average, over 100 by 100 degrees.

The enclosure is glass-filled high-impact polystyrene in UV-resistant paint, rated IP-44, and IP-55 with the optional MTC-28WMG-1 WeatherMax grille. Transformer taps run to 60 W on a 70 or 100 V line, with an 8 ohm through position. The InvisiBall aiming wall mount is included. Recommended protective high-pass is 45 Hz for 8 ohm operation, higher on the larger taps. Price shown is per speaker; JBL pair-packs this model.

Type	Two-way 8-inch surface-mount loudspeaker, indoor/outdoor
Impedance	8 ohms (through setting)
Power rating	240 W continuous program; 120 W (480 W peak) continuous pink noise
Maximum SPL (1 m)	112 dB continuous average pink noise (118 dB peak)
Sensitivity	91 dB, 1 W / 1 m
Frequency range (-10 dB)	45 Hz - 20 kHz
Frequency response (+/-3 dB)	62 Hz - 16 kHz
Coverage angle	100 degrees H x 100 degrees V
Transformer taps	70 V: 60/30/15/7.5 W; 100 V: 60/30/15 W
Recommended high-pass	45 Hz at 24 dB/octave for 8 ohm and the 15 W / 7.5 W taps
Enclosure	Glass-filled high-impact polystyrene; IP-44 (IP-55 with MTC-28WMG-1)

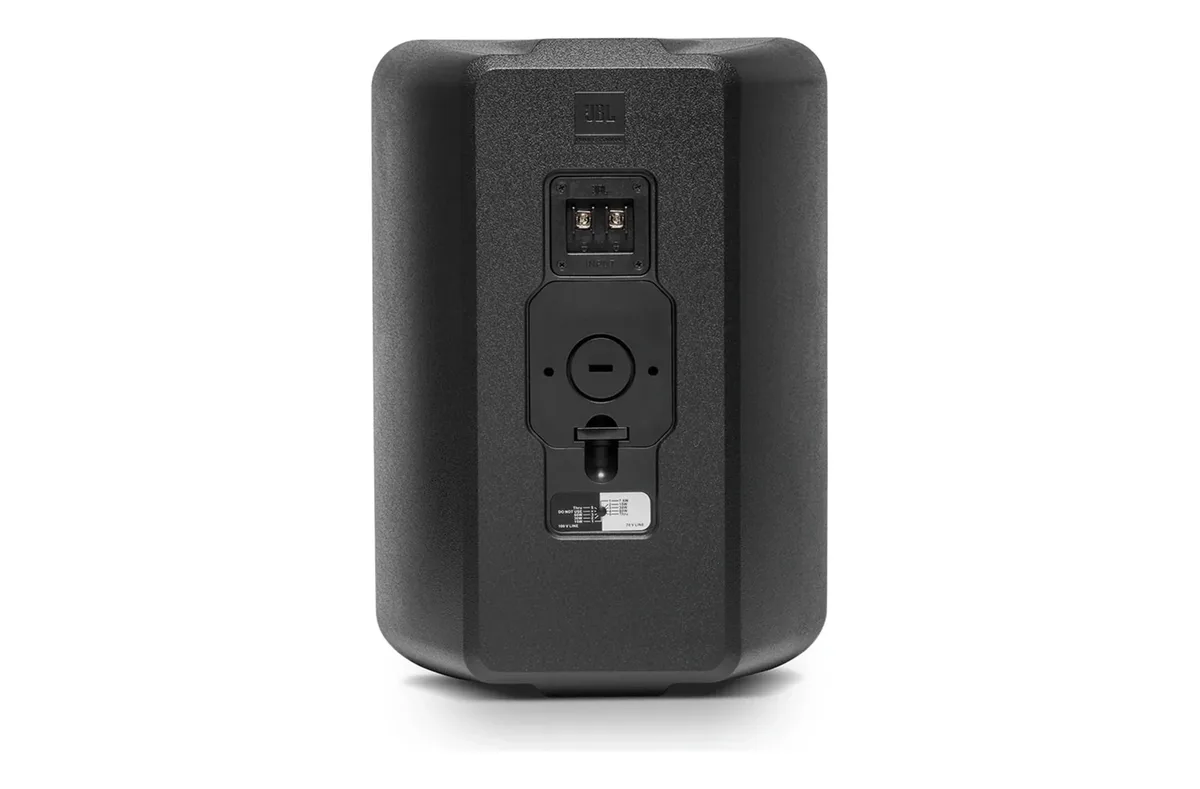

Mounting	InvisiBall wall-mounting system included
Dimensions (H x W x D)	386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in)
Net weight (each)	6.8 kg (15.0 lb)
