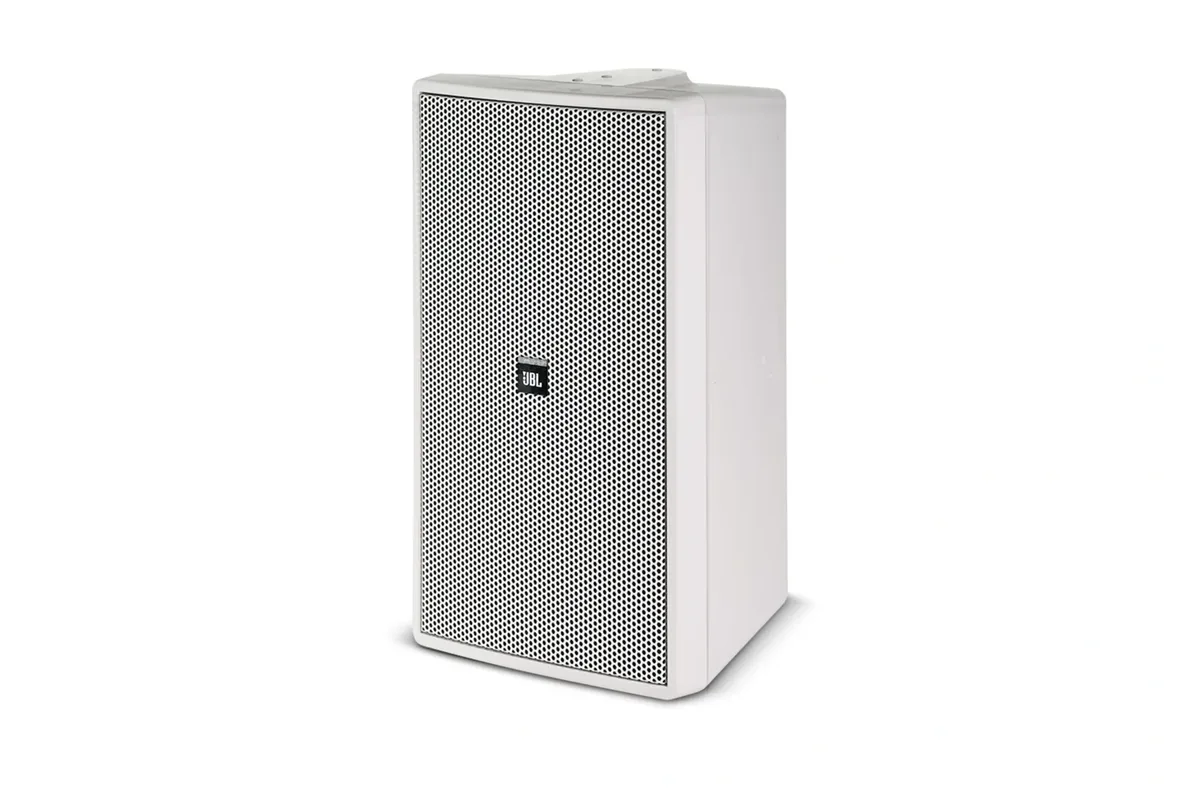

JBL Control 29AV-1 Indoor / Outdoor Monitor Speaker

The Control 29AV-1 is a indoor / outdoor monitor speaker, from the Control Contractor installed range. Nominal coverage is 110 degrees H x 85 degrees V, Rotatable. Frequency range is 37 Hz - 18 kHz (-10 dB). JBL rates it at 300 W Continuous Program Power; 150 W Continuous Pink Noise. Maximum SPL at 1 m is Short-Term: 120 dB; Long-Term: 114 dB. Nominal impedance is 8 ohms.

The enclosure is High impact polystyrene. The grille is Thermoset composite coated steel, WeatherMax multi-layer foam. Transformer taps are 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal. It measures 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.). Net weight is 12.2 kg (26.8 lb.). In the box: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.

Type	Indoor / Outdoor Monitor Speaker
Frequency Range	37 Hz - 18 kHz (-10 dB)
Power Capacity	300 W Continuous Program Power; 150 W Continuous Pink Noise
Transformer Taps	70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal
Frequency Response	45 Hz - 18 kHz ( +/- 3 dB)
Maximum SPL (1m)	Short-Term: 120 dB; Long-Term: 114 dB
Nominal Sensitivity	90 dB (2.83V / 1m)
Coverage Angle	110 degrees H x 85 degrees V, Rotatable
Directivity Factor (Q)	7.2 dB, averaged 500 Hz to 16 kHz
