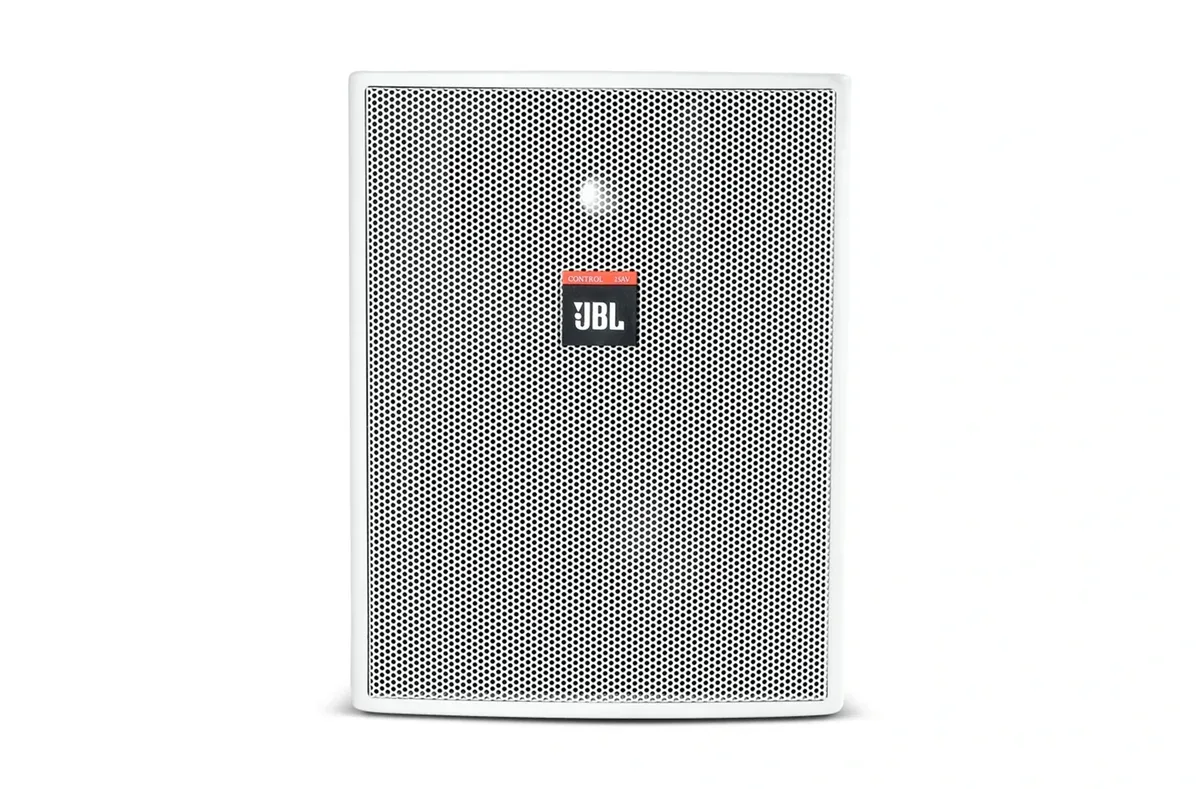

JBL Professional JBL Control 25AV Two-way 5.25-inch surface-mount loudspeaker, video-shielded

The Control 25AV uses a deeper cabinet than the standard compact Control boxes to get smoother response from a two-way 5.25-inch design. It is video-shielded for work next to monitors, and the grille is painted stainless steel for harsh rooms - kitchens, pool decks, anywhere salt or cleaning chemicals are in the air.

Coverage is 100 by 100 degrees, sensitivity 87 dB, with 113 dB continuous peak pink noise. A 60 W transformer serves 70 V or 100 V lines with an 8 ohm bypass. Full-range power limiting and an internal fuse protect the network. It exceeds Mil Spec 810 for humidity, salt spray, temperature and UV, with an IP-X4 splashproof rating. The InvisiBall aiming wall mount is included.

Type	Two-way 5.25-inch surface-mount loudspeaker, video-shielded
Impedance	8 ohms (minimum 6.7 ohms at 230 Hz)
Power capacity	200 W continuous program; 100 W continuous pink noise
Maximum SPL (1 m)	113 dB continuous peak pink noise; 107 dB continuous average
Sensitivity	87 dB SPL, 1 W @ 1 m
Frequency range (-10 dB)	70 Hz - 23 kHz
Coverage angle	100 degrees H x 100 degrees V
Transformer taps	70 V: 60/30/15/7.5 W; 100 V: 60/30/15 W
Grille	Painted stainless steel, black or white, paintable
Protection	Full-range power limiting plus internal fuse
Outdoor capability	Exceeds Mil Spec 810; IEC 529 IP-X4 splashproof
Mounting	InvisiBall aimable wall-mounting system included
Dimensions (H x W x D)	236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net weight (each)	4.0 kg (9 lb)
