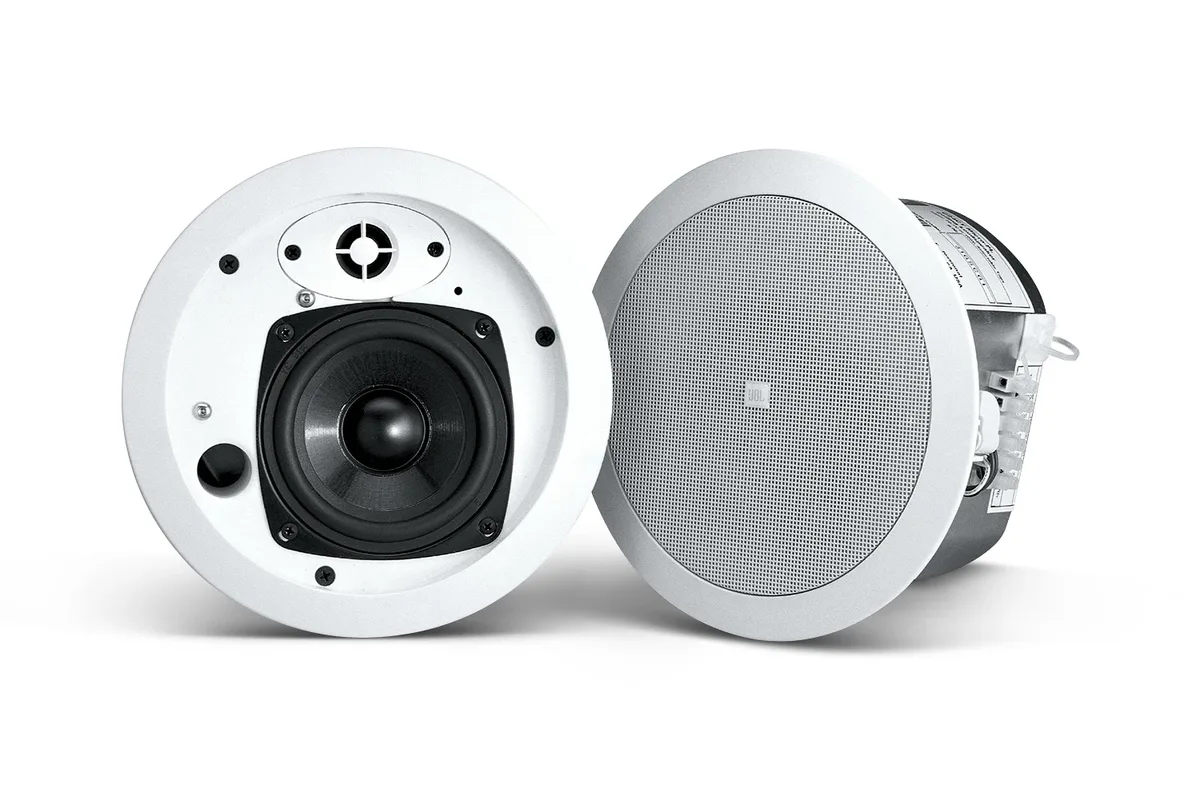

JBL Control 24CT Micro Plus Background Music Ceiling Loudspeaker

The Control 24CT Micro Plus is a background music ceiling loudspeaker, from the Control Contractor installed range. Nominal coverage is 150 degrees conical. Frequency range is 80 Hz - 25 kHz. JBL rates it at 30 W Continuous Program Power; 15 W Continuous Pink Noise. Maximum SPL at 1 m is 99 dB @ 1 m (3.3 ft), 25 W tap.

Transformer taps are 70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps. 150 degrees conical coverage. Smooth frequency response.

Type	Background Music Ceiling Loudspeaker
Frequency Range	80 Hz - 25 kHz
Power Capacity	30 W Continuous Program Power; 15 W Continuous Pink Noise
Transformer Taps	70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps
Nominal Sensitivity	85 dB SPL @ 1 m (3.3 ft)
Coverage Angle	150 degrees conical
Crossover Frequency	3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
Maximum SPL (1m)	99 dB @ 1 m (3.3 ft), 25 W tap
Low Frequency	115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
