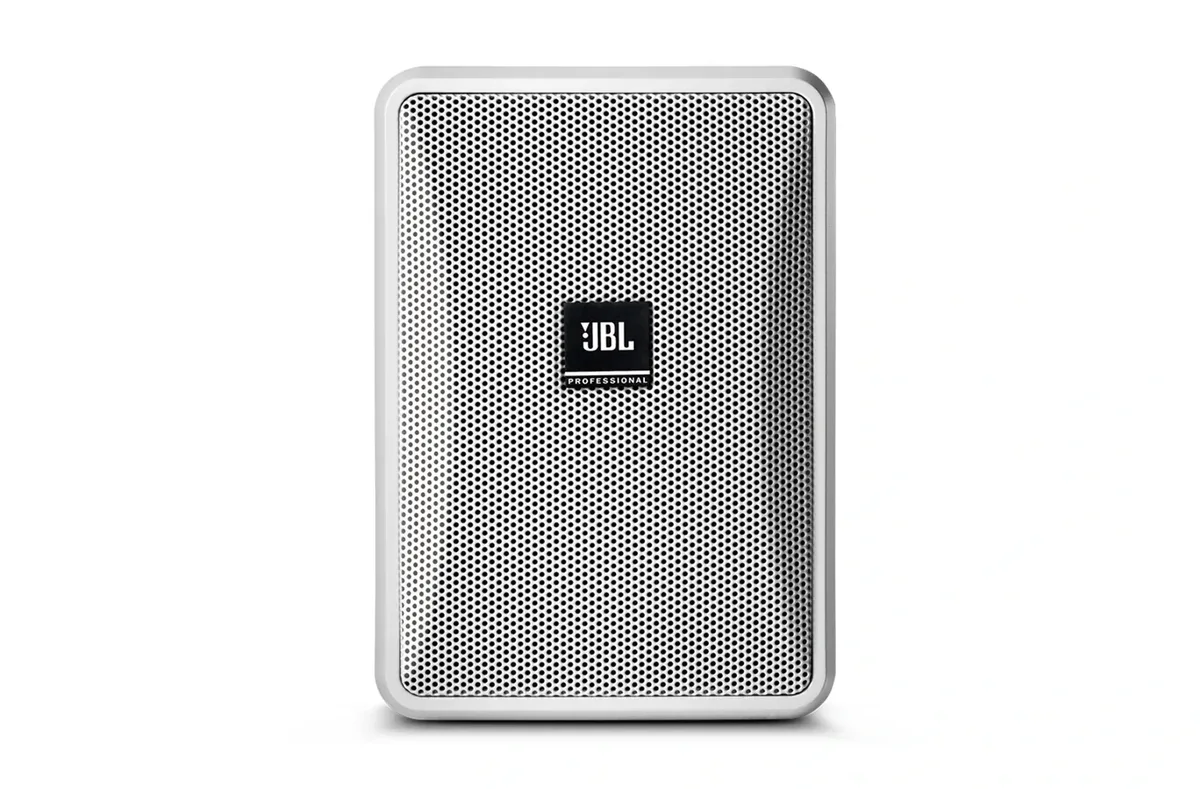

JBL Control 23-1L Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker
The Control 23-1L is an ultra-compact 8-Ohm Indoor/Outdoor Background/Foreground speaker, from the Control Contractor installed range. Nominal coverage is 100 degrees H x 100 degrees V. Frequency range is 70 Hz to 20 kHz. Maximum SPL at 1 m is 103 dB ave. Continuous Pink Noise (109 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression. Nominal impedance is 8 ohms. Sensitivity is 86 dB, 1W/1m (ave. 100 Hz - 10 kHz) *Half-space (on-wall) averaged 100 Hz - 10 kHz, 2.83V.
The enclosure is High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance. The grille is Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax multi-layer foam and tight-weave mesh vapor barrier backing. It measures 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket. *In vertical orientation. Net weight is 1.6 kg (3.4 lbs). In the box: InvisiBall wall-mounting system, 4 mm x 80 mm hex key. Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice.
| Type | Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker |
|---|---|
| Frequency Range (-10dB) | 70 Hz to 20 kHz |
| Frequency Response (+/-3 dB) | 95 Hz - 19 kHz |
| Power Rating | 100W Continuous Program (2 hrs) *Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor. Continuous Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is a conservative expression of the |
| Maximum Input Voltage | 17.2 V RMS (2 hrs), 34.4 V peak |
| Maximum SPL (1m) | 103 dB ave. Continuous Pink Noise (109 dB peak) *Calculated from sensitivity and power handling, exclusive of power compression. |
| Sensitivity | 86 dB, 1W/1m (ave. 100 Hz - 10 kHz) *Half-space (on-wall) averaged 100 Hz - 10 kHz, 2.83V. |
| Coverage Angle | 100 degrees H x 100 degrees V |
| Directivity Factor (Q) | 5.8 (averaged 1kHz - 16kHz) |
