HK Audio PREMIUM PR:O 10 X Passive 10 inch Speaker Monitor
The PREMIUM PR:O 10 X is the dual-purpose ten in the passive PR:O line. A 10-inch cone driver and a 1-inch compression driver on a constant directivity horn give a 90 by 60 degree pattern and 126 dB peak, and the frequency response is deliberately even rather than scooped, which is what keeps it usable as a wedge without ringing at the first open microphone.

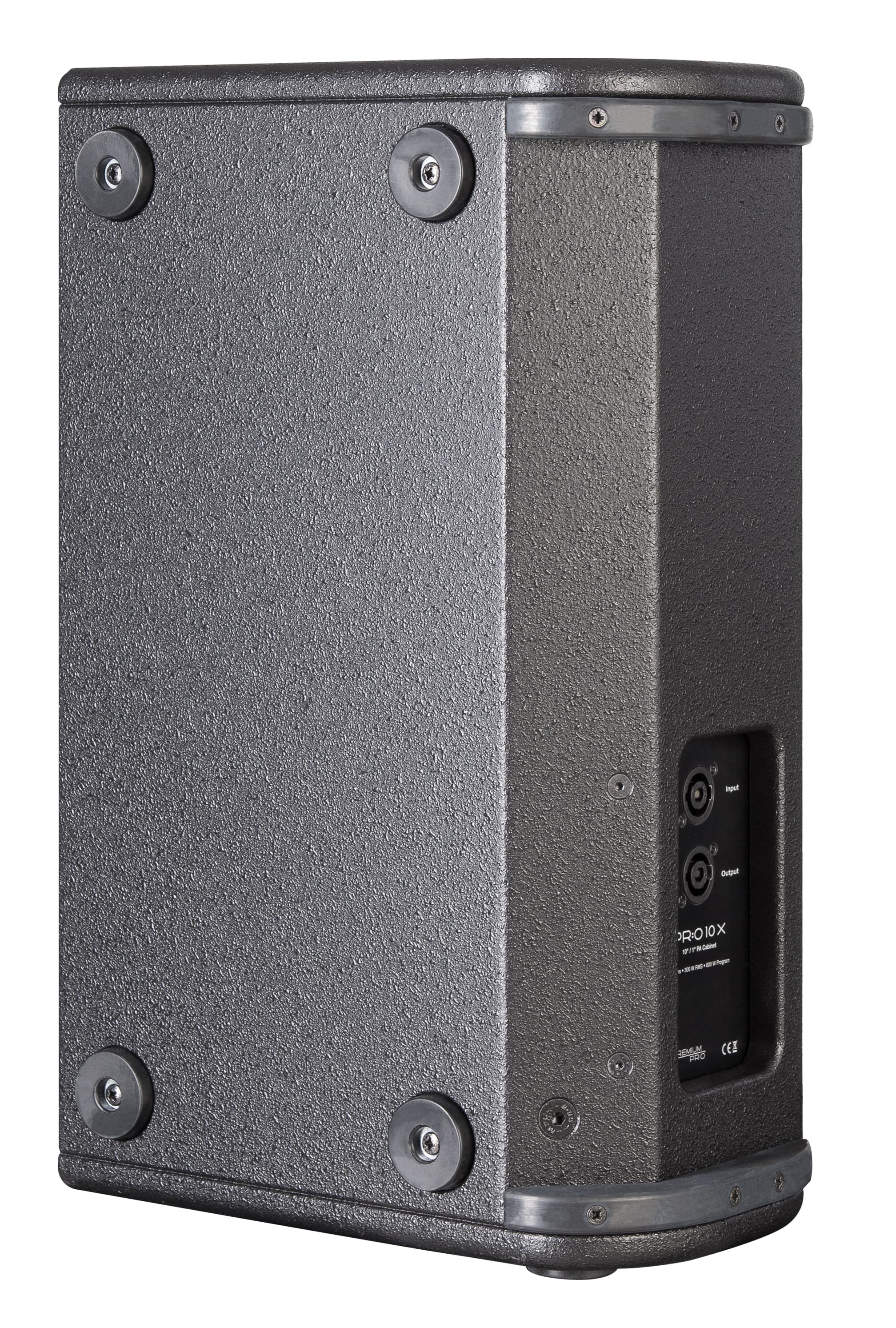

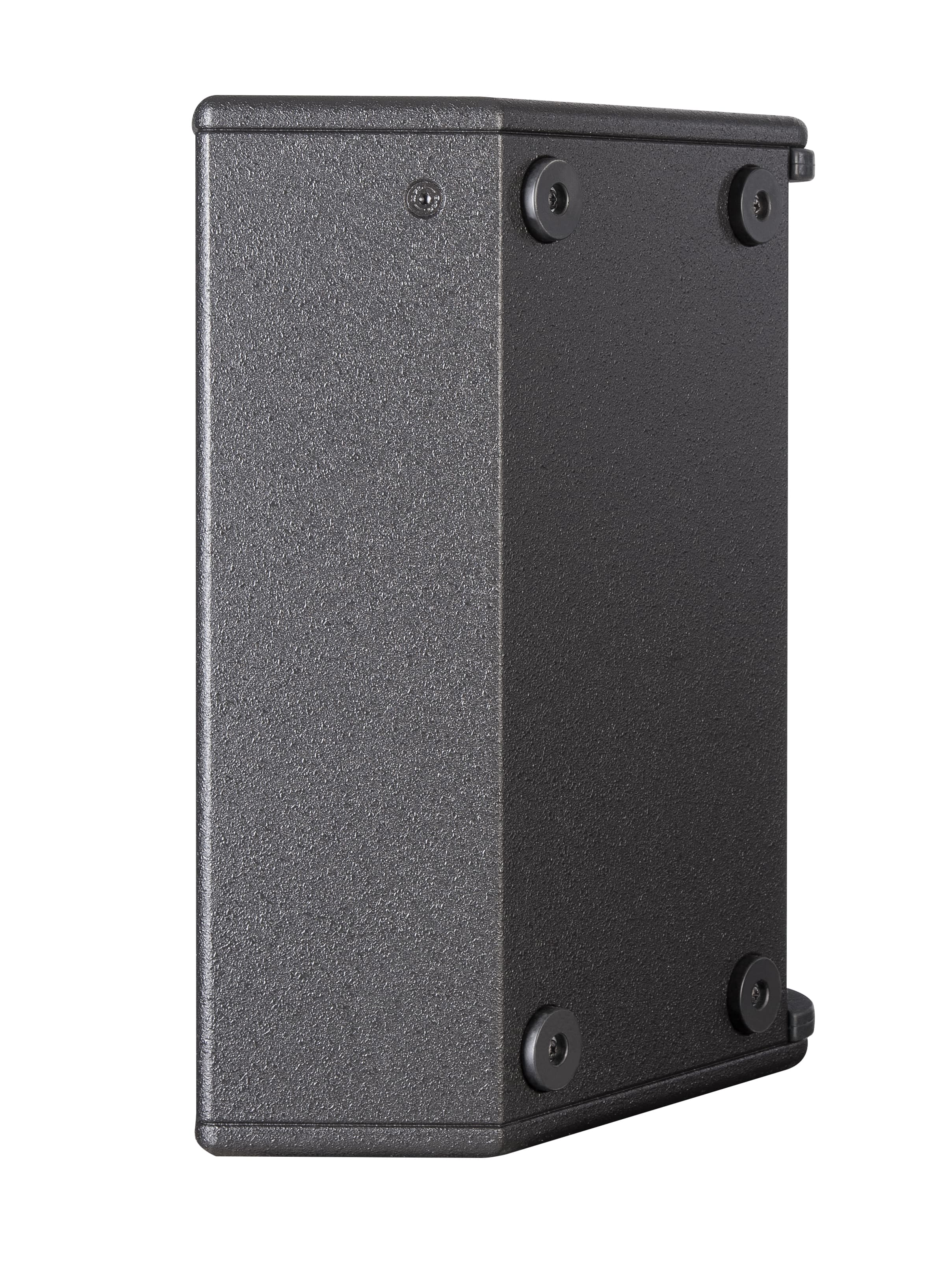

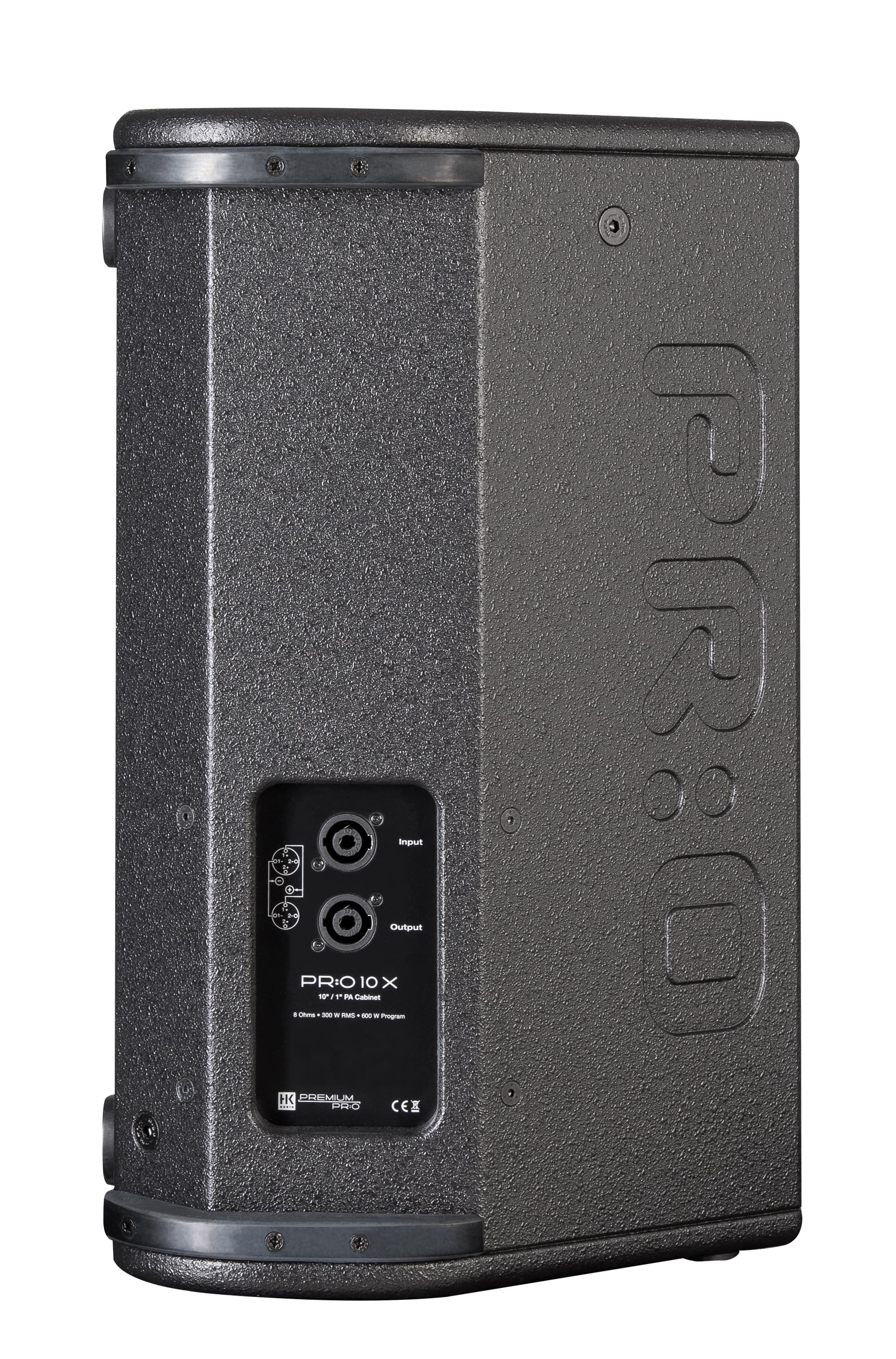

The X cabinet adds a 30 degree monitor angle to the DuoTilt 3 or 7 degree pole socket and three M8 rigging points, so the same box covers stage monitoring, a pole-mounted main, or a flown fill. Power handling is 300 W RMS at 8 ohms with 99 dB sensitivity, and the high frequency driver is protected by a dynamic circuit. NL4 Speakon in and parallel out are pinned 1+/-. Weight is 28.4 pounds.
| Concept | Passive 2-way mid/high unit, bass reflex |
|---|---|
| Power Handling | 300 W RMS / 600 W program / 1200 W peak, 8 ohms |
| Max SPL Peak | 126 dB |
| Sensitivity 1 W / 1 m | 99 dB |
| Frequency Range | 95 Hz - 19 kHz (-6 dB), 80 Hz - 19 kHz (-10 dB) |
| Dispersion | 90 x 60 degrees |
| Cabinet / Rigging | DuoTilt 3/7 degree pole mount, 30 degree monitor angle, 3 x M8 |
| Weight | 12.9 kg (28.4 lb) |
| Order Code | PREM-PRO-10-X-U |
