Hiwatt PEDALSMITH 50 Head

Where the Pedalsmith 30 uses 6V6s, the Pedalsmith 50 keeps the EL34s the DR504 was designed around, and the extra 20 watts go straight into clarity and headroom rather than volume for its own sake.

The circuit is the one heard on records by The Who, Led Zeppelin and Pink Floyd, brought forward with internally jumped inputs and a quiet post-preamp effects loop. Normal and Brilliant channels each take high and low inputs, a Filter switch gives three circuit variations, and oversized transformers hold the low end together up to full output.

Wattage	50W
Channels	Normal, Brilliant
Input	High and Low 1/4" Mono Input

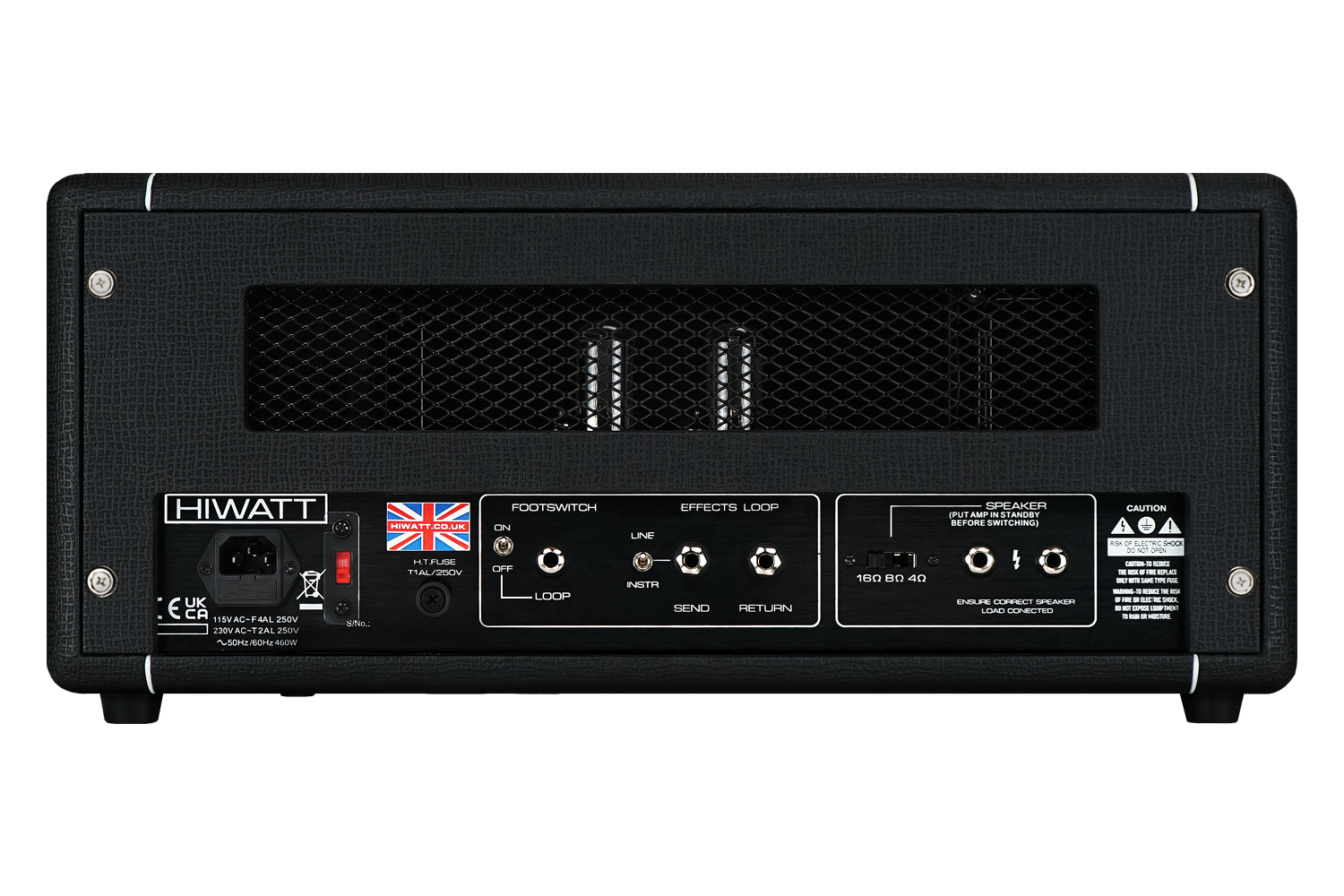

Outputs	2 x 1/4" Speaker, 1/4" Effects Loop Send
Preamp Valves	4 x ECC83 (12AX7)
Output Valves	2 x EL34

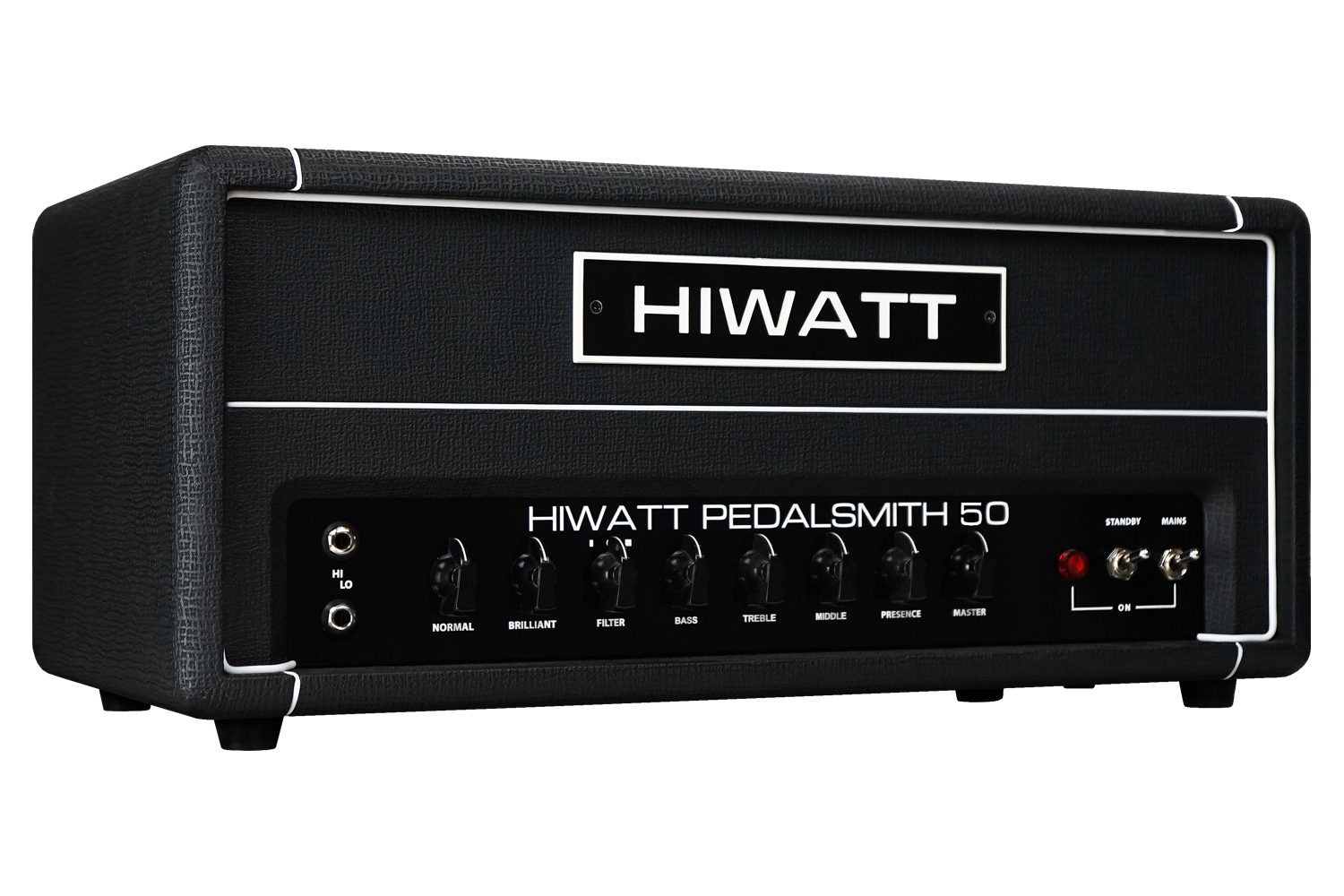

Controls	Normal Volume; Brilliant Volume; Bass; Middle; Treble; Presence; Master Volume
Effects Loop	Post-preamp FX loop
Filter Switch	Three circuit variations for treble and bass response
Transformers	Oversized for extra low end and output before saturation
Construction	Birch ply
