Focusrite RedNet AM2 Stereo Dante Headphone and Line Monitoring Unit

RedNet AM2 is the small box that puts a monitor position anywhere there is a network cable. It takes two channels off a Dante network and presents them on a 1/4 inch stereo headphone jack and a pair of balanced XLR line outputs, with a switchable 0 dBFS reference of +18 or +24 dBu so it lines up with whatever the rest of the plant is calibrated to.

Performance is what the range name implies rather than what the size suggests: 120 dB of A-weighted dynamic range on the line outputs, 118 dB on the headphone amplifier, distortion below -100 dB and 20 Hz to 20 kHz within 0.05 dB. The headphone amp drives 32 to 600 ohm loads from a 5 ohm output. Power is IEEE 802.3af class 0 PoE or a 12 V DC input, drawing 11 W over PoE.

Function	Stereo Dante monitoring: headphone and balanced line outputs
Reference Level	+18 or +24 dBu at 0 dBFS, switchable
Frequency Response	20 Hz - 20 kHz +/-0.05 dB
Dynamic Range	120 dB line, 118 dB headphone, A-weighted typical
THD+N	Below -100 dB (0.001 percent) unweighted at -1 dBFS

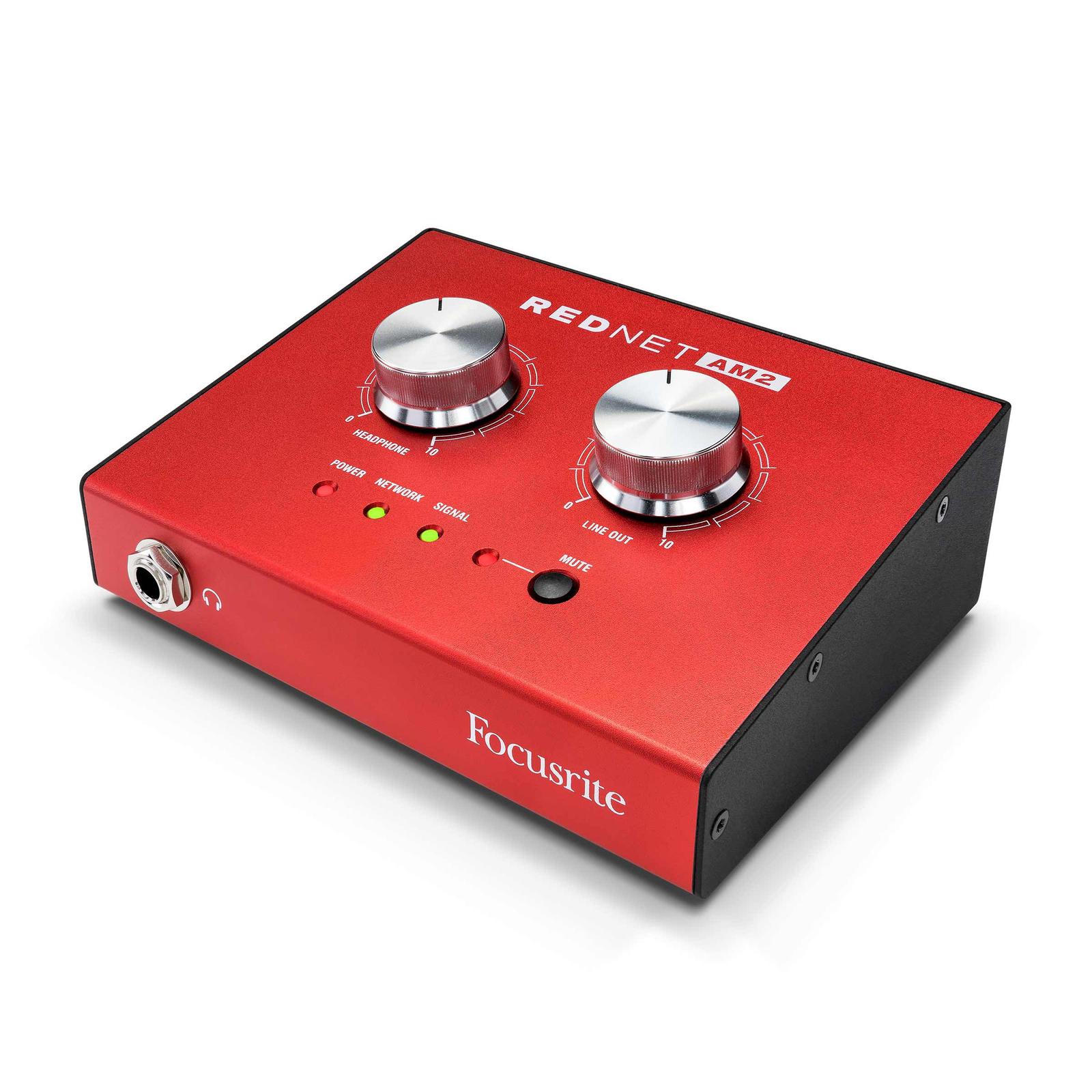

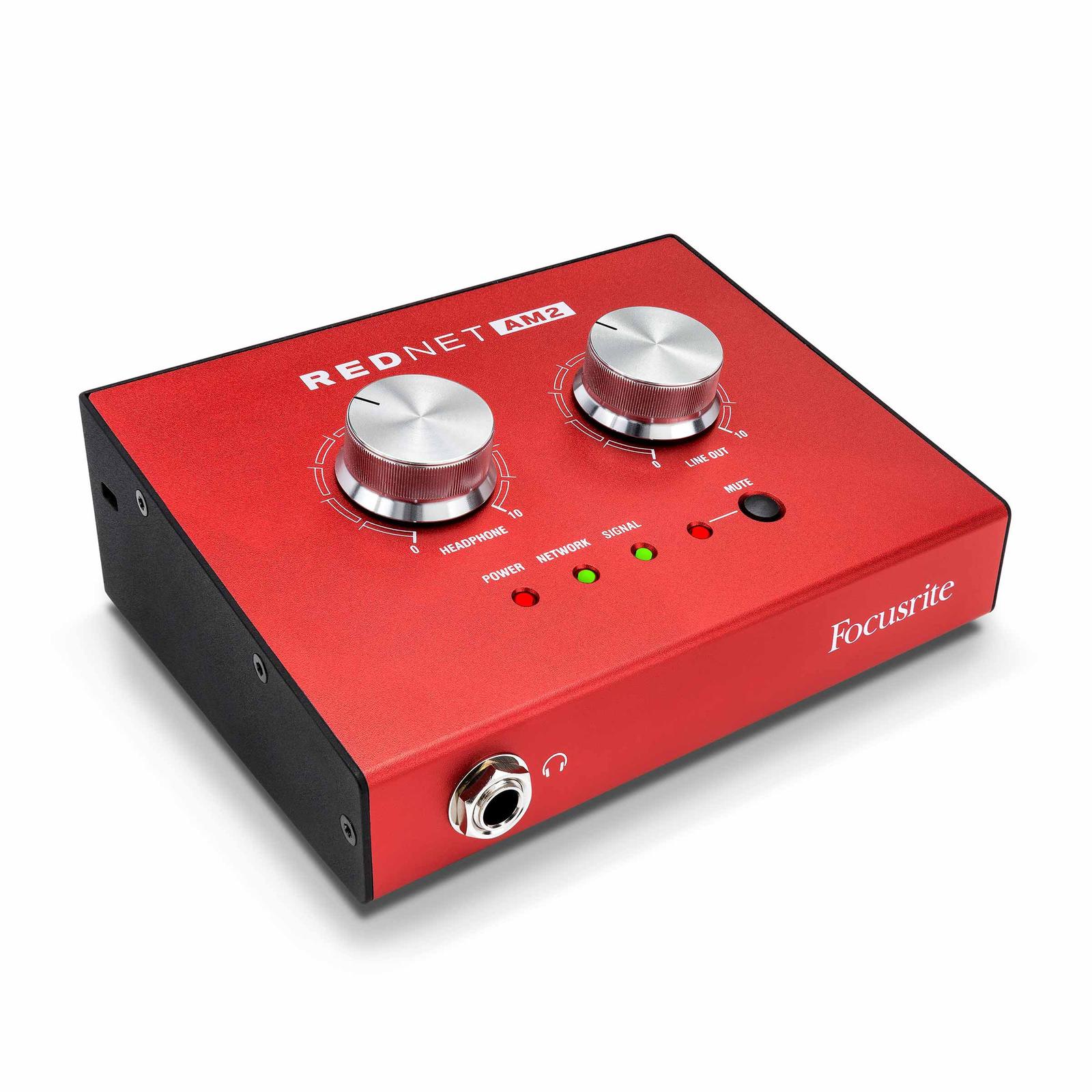

Headphone Output	1 x 1/4 in stereo jack, 5 ohm output, 32 - 600 ohm loads

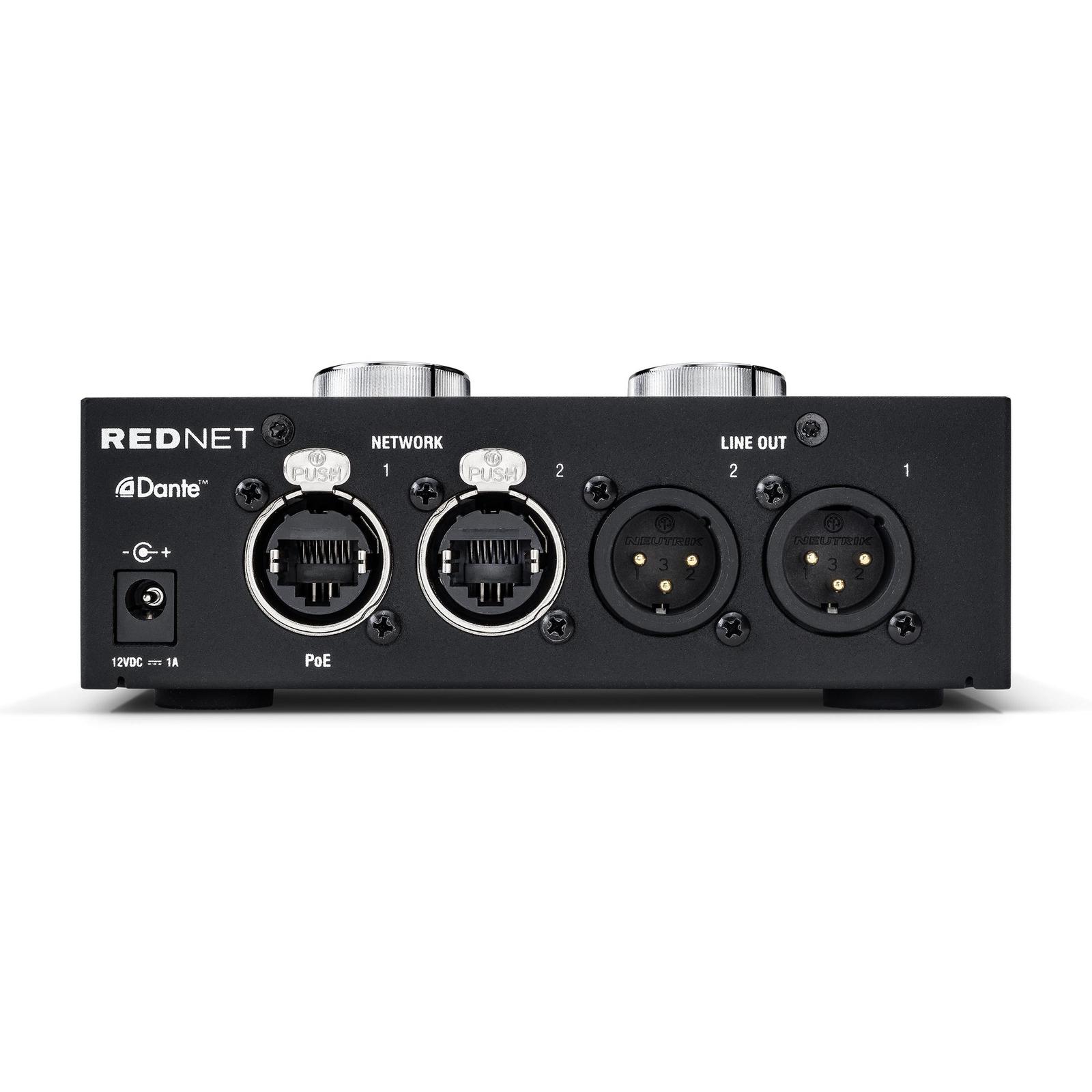

Line Outputs	2 x male XLR
Sample Rates	44.1 / 48 / 88.2 / 96 kHz at 24-bit
Power	PoE IEEE 802.3af class 0 (11.0 W) or 12 V 1.2 A DC (9.8 W)
Manufacturer Part Number	RedNet AM2
