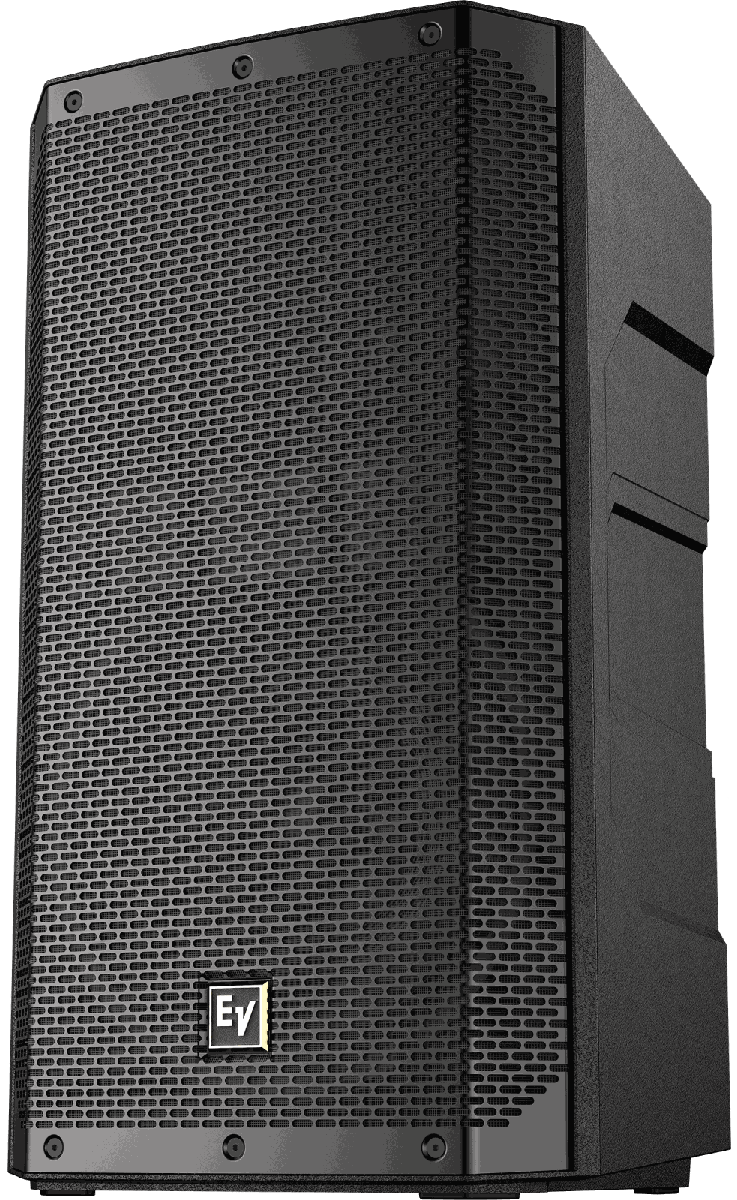

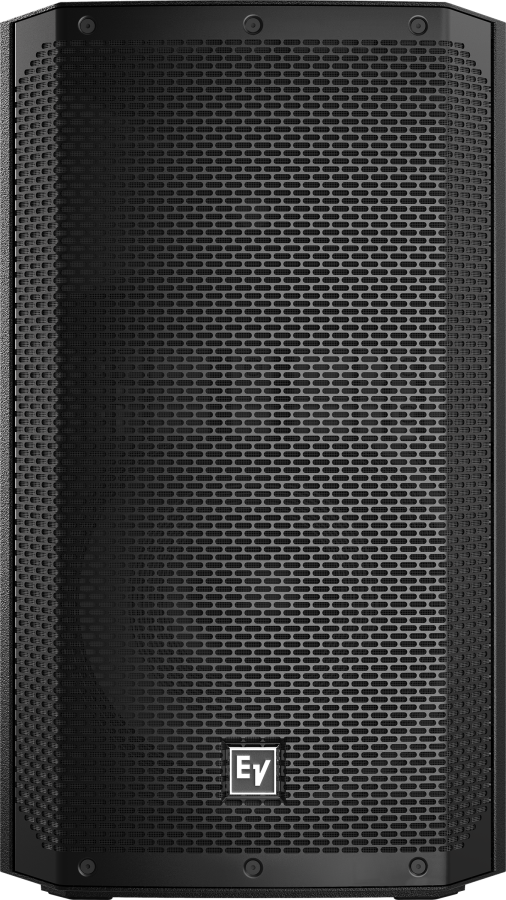

Electro-Voice ELX200-12 12-Inch Two-Way Passive Loudspeaker
The ELX200-12 is the passive 12-inch cabinet in the range: an EVS-12M woofer and a DH-1L titanium compression driver on a 90 by 60 degree horn, crossed at 1.7 kHz, in a polypropylene enclosure that comes in at 15.2 kg. It takes 300 W continuous into 8 ohms and reaches 77 Hz at -3 dB.
Because the enclosure is moulded rather than built from ply, the shape carries integrated handles, a pole socket and a monitor angle without adding hardware. Three M10 points take a wall or truss bracket. Two NL4 connectors let you loop through to a second box. Available in black or white at the same price.
| Type | 12-inch two-way passive loudspeaker |
|---|---|
| Frequency response (-3 dB) | 77 Hz - 17 kHz |
| Coverage (H x V) | 90 x 60 degrees |
| Maximum SPL | 128 dB (calculated at 1 m) |
| Power handling | 300 W continuous / 1200 W peak |
| Nominal impedance | 8 ohms |
| Axial sensitivity | 93 dB SPL, 1 W at 1 m |
| Transducers | EVS-12M 300 mm (12 in) woofer; DH-1L 1-inch titanium compression driver |
| Crossover frequency | 1.7 kHz |
| Connectors | Dual NL4 |
| Enclosure | Polypropylene composite with 18 AWG steel grille |
| Dimensions (H x W x D) | 629 x 363 x 344 mm |
| Net weight | 15.2 kg |
| Rigging | (3) M10 threaded suspension points |
