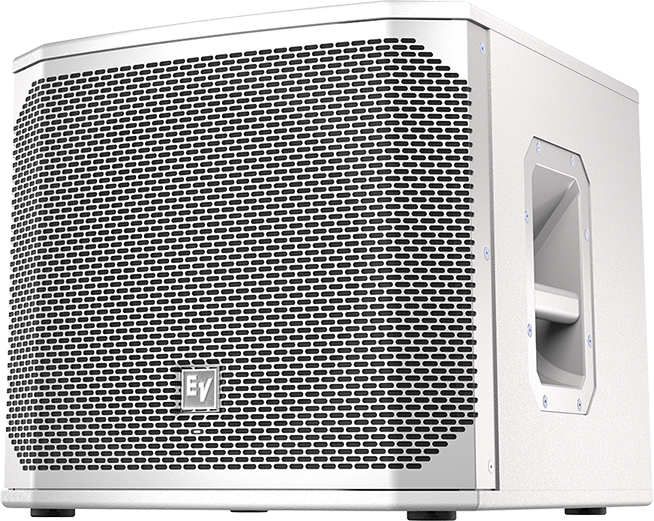

Electro-Voice ELX200-12SP 12-Inch Powered Subwoofer
The ELX200-12SP is the powered 12-inch sub: an EVS-12L driver, a 1200 W Class D amplifier and QuickSmartDSP in a 15 mm plywood cabinet weighing 19.1 kg. It runs to 49 Hz at -3 dB and 129 dB maximum, which is the right amount of bottom for a duo, a DJ in a small room or a corporate rig that needs to sound full rather than loud.
The low-pass point is selectable at 80, 100, 120 or 150 Hz, so you can match it to whatever top is on the pole. Two XLR/TRS combo inputs and two XLR link outputs feed the tops directly. An M20 pole plate is moulded into the top panel. Available in black or white at the same price.
| Type | 12-inch powered subwoofer |
|---|---|
| Amplifier | 1200 W Class D |
| Frequency response (-3 dB) | 49 Hz - 135 Hz |
| Maximum SPL | 129 dB |
| Transducer | EVS-12L 300 mm (12 in) |
| Low-pass frequency | Selectable 80 / 100 / 120 / 150 Hz |
| Processing | QuickSmartDSP |
| Inputs / outputs | (2) XLR/TRS combo jacks, (2) XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat; 18 AWG steel grille |
| Dimensions (H x W x D) | 397 x 445 x 457 mm (16.7 x 17.6 x 18.0 in) |
| Net weight | 19.1 kg (42.2 lb) |
| Pole mount | Integrated M20 threaded pole mount plate |
