Electro-Voice ELX200-18S 18-Inch Passive Subwoofer

The ELX200-18S is the deep one - an EVS-18L 18-inch driver in a ported 15 mm plywood cabinet, taking 400 W continuous into 8 ohms and reaching down to 45 Hz at -3 dB with 133 dB of peak output. Sensitivity is 94 dB, so it does not need an oversized amplifier to make itself heard.

The finish is a polyurea top coat over plywood with a powder-coated steel grille, and the top panel has an integrated M20 pole plate. Dual NL4 connectors handle daisy-chaining a pair. At 26.6 kg it is a two-hand lift but still fits a hatchback. Available in black or white at the same price.

Type18-inch passive subwoofer
Frequency response (-3 dB)45 Hz - 200 Hz
Maximum SPL133 dB peak (at 1 m)
Power handling400 W continuous / 1600 W peak
Nominal impedance8 ohms
Axial sensitivity94 dB SPL, 1 W at 1 m
TransducerEVS-18L 457 mm (18 in)

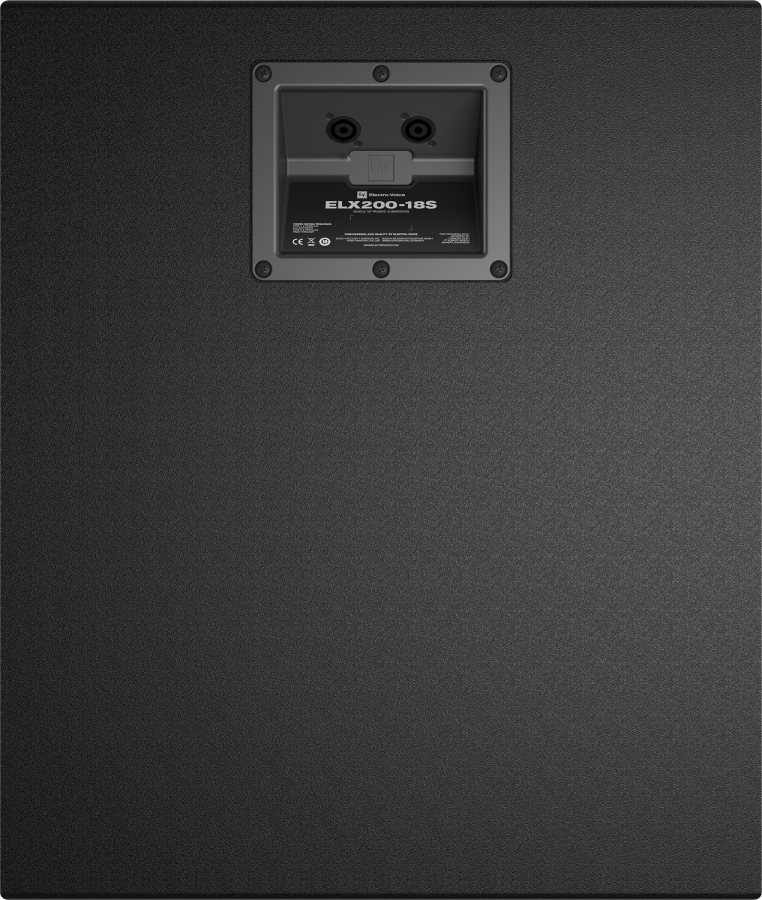

ConnectorsDual NL4
Enclosure15 mm plywood with polyurea top coat; 18 AWG steel grille
Dimensions (H x W x D)600 x 507 x 574 mm
Net weight26.6 kg
Pole mountIntegrated M20 threaded pole mount plate
