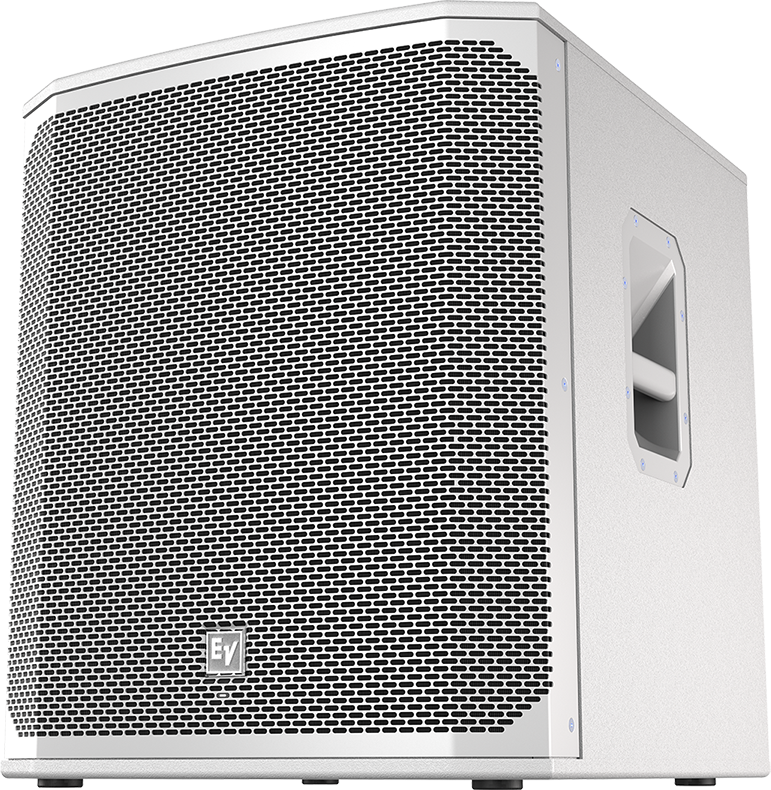

Electro-Voice ELX200-18SP 18-Inch Powered Subwoofer
The ELX200-18SP is the biggest powered box in the range: an EVS-18L 18-inch driver, a 1200 W Class D amplifier and QuickSmartDSP in a ported plywood cabinet. It reaches 47 Hz at -3 dB and 132 dB maximum, which is the point where a mobile rig stops sounding like a PA and starts sounding like a system.
The DSP carries music, live and club presets, an adjustable low-pass crossover at 80, 100, 120 or 150 Hz, three-band EQ and five user memories. Two XLR/TRS combo inputs and two XLR link outputs pass signal on to the tops, and an M20 pole plate is built into the top panel. Available in black or white at the same price.
| Type | 18-inch powered subwoofer |
|---|---|
| Amplifier | 1200 W Class D |
| Frequency response (-3 dB) | 47 Hz - 105 Hz |
| Maximum SPL | 132 dB |
| Transducer | EVS-18L 457 mm (18 in) |
| Low-pass frequency | Selectable 80 / 100 / 120 / 150 Hz |
| Processing | QuickSmartDSP: 3 presets, 3-band EQ, 5 user presets |
| Inputs / outputs | (2) XLR/TRS combo jacks, (2) XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat |
| Dimensions (H x W x D) | 600 x 507 x 574 mm (23.7 x 20.0 x 22.6 in) |
| Net weight | 29.0 kg (64 lb) |
| Pole mount | Integrated M20 threaded pole mount plate |
