Electro-Voice ELX200-12S 12-Inch Passive Subwoofer
The ELX200-12S is the smallest sub in the range and the easiest to lift at 20.2 kg. An EVS-12L 12-inch driver in a ported plywood cabinet takes 400 W continuous into 8 ohms and reaches 42 Hz at -3 dB, which is real low end from a box that fits under a bar or behind a lectern.

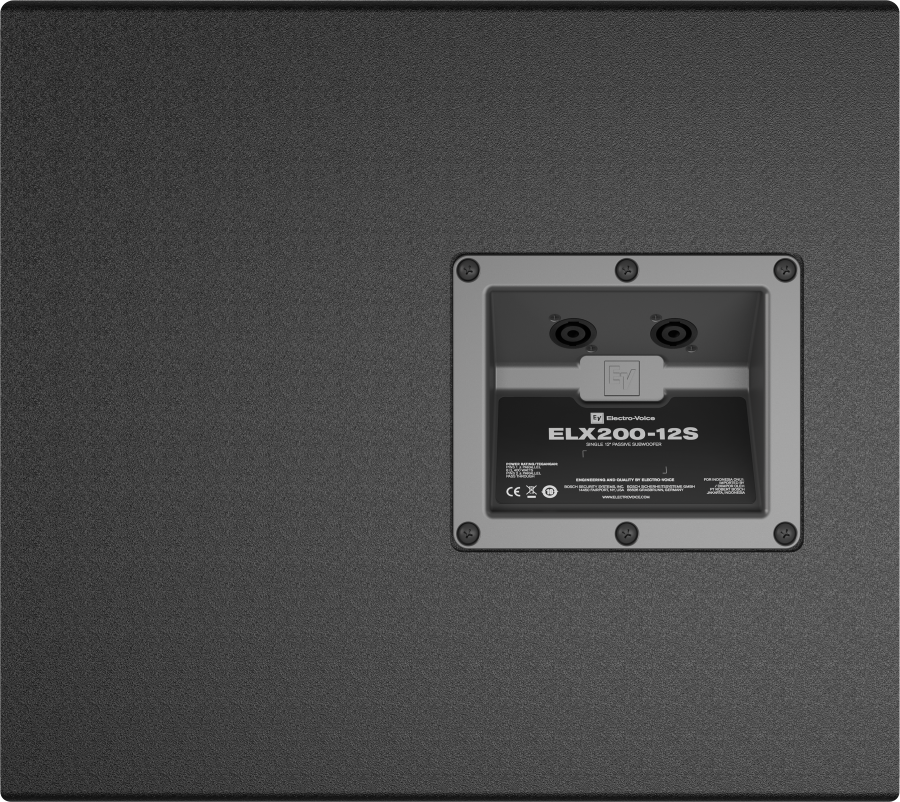

The cabinet is 15 mm plywood with a polyurea top coat and a powder-coated steel grille, and the top panel carries an M20 pole plate so a full-range top sits straight on it. Dual NL4 connectors let a second sub loop off the first. Available in black or white at the same price.
| Type | 12-inch passive subwoofer |
|---|---|
| Frequency response (-3 dB) | 42 Hz - 220 Hz |
| Maximum SPL | 129 dB (calculated at 1 m) |
| Power handling | 400 W continuous / 1600 W peak |
| Nominal impedance | 8 ohms |
| Axial sensitivity | 93 dB SPL, 1 W at 1 m |
| Transducer | EVS-12L 300 mm (12 in) |
| Connectors | Dual NL4 |
| Enclosure | 15 mm plywood with polyurea top coat; 18 AWG steel grille |
| Dimensions (H x W x D) | 397 x 445 x 457 mm |
| Net weight | 20.2 kg |
| Pole mount | Integrated M20 threaded pole mount plate |
