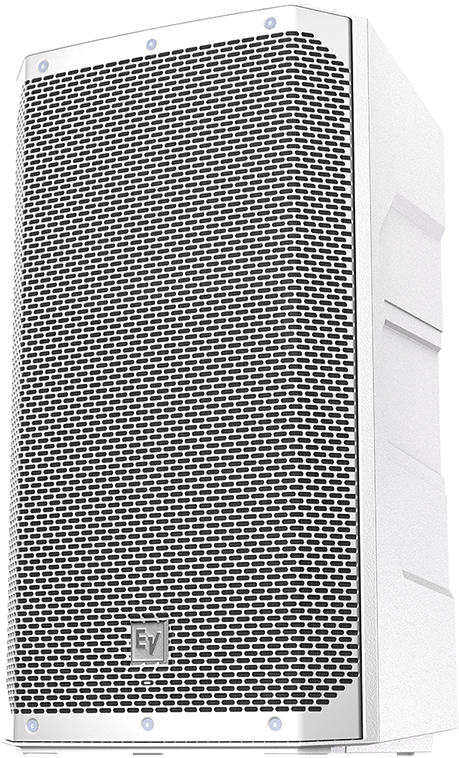

Electro-Voice ELX200-12P 12-Inch Two-Way Powered Loudspeaker

The ELX200-12P is the workhorse of the range - a 1200 W Class D amplifier on an EVS-12M woofer and DH-1L compression driver, in a moulded polypropylene cabinet that weighs 15.6 kg and reaches 57 Hz at -3 dB. One person can carry a pair, and the moulded monitor angle means it doubles as a wedge.

QuickSmartDSP handles voicing, three-band EQ and five user presets, and includes a sub/top system-match setting for pairing with an ELX200 subwoofer. Two XLR/TRS combo jacks, a stereo RCA input and an XLR output cover connection. Three M10 suspension points take brackets or eyebolts. Available in black or white at the same price.

Type	12-inch two-way powered loudspeaker
Amplifier	1200 W Class D
Frequency response (-3 dB)	57 Hz - 16 kHz
Coverage (H x V)	90 x 60 degrees
Maximum SPL	130 dB
Transducers	EVS-12M 300 mm (12 in) woofer; DH-1L 1-inch titanium compression driver
Crossover frequency	1700 Hz
Processing	QuickSmartDSP: 4 presets, sub/top system match, 3-band EQ, 5 user presets
Inputs	(2) XLR/TRS combo, (1) stereo RCA, (1) XLR output
Enclosure	Polypropylene with 18 AWG steel grille
Dimensions (H x W x D)	629 x 363 x 344 mm (24.8 x 14.3 x 13.6 in)
Net weight	15.6 kg (34.4 lb)
Rigging	(3) M10 suspension points; integrated pole mount
