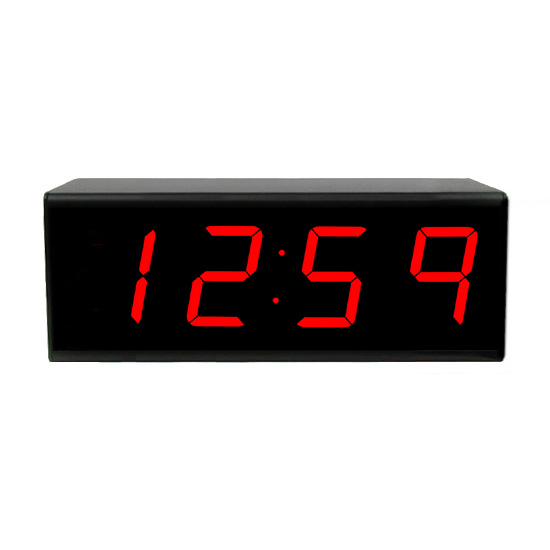

ESE ES-941U Wall-Mount Time Code Remote Display

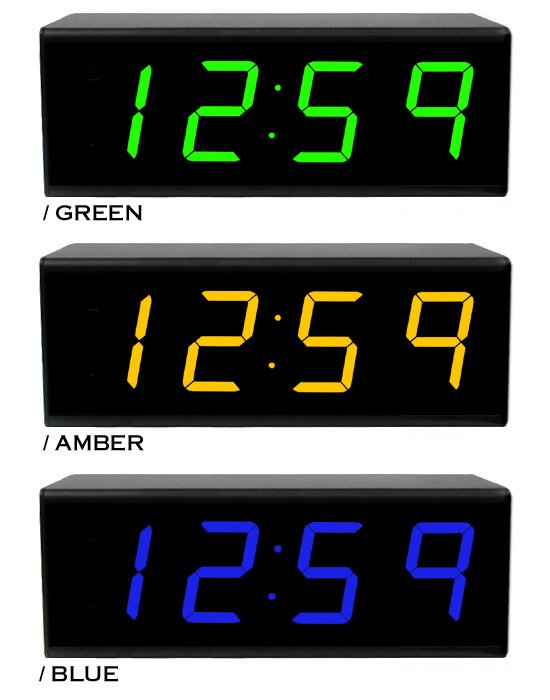

The ES-941U is a wall-mount remote display that slaves to house time code and shows the time across four 4.0" LED digits readable from up to 120 feet. It reads SMPTE/EBU, ASCII, and ESE time code with automatic code detection, so it stays locked to whatever timing reference the facility distributes. Red LEDs are standard, with green, blue, and amber available.

The display switches between 12 and 24 hour formats and can be switched to show the date, with an optional time zone offset for remote sites. An NTP option lets it take time from a network instead of code. It ships for 110-120 VAC standard, with UL approval and 220-240 VAC available.

FunctionWall-mount time code remote display
ReadsSMPTE/EBU, ASCII, ESE time code (auto-detect)
DisplayFour 4.0\" LED digits (red standard; green/blue/amber optional)
Viewing Distance120 ft
FormatSwitchable 12 / 24 hour, or date
Time ZoneOptional offset
NetworkOptional NTP
Power110-120 VAC standard (220-240 VAC / UL optional)
