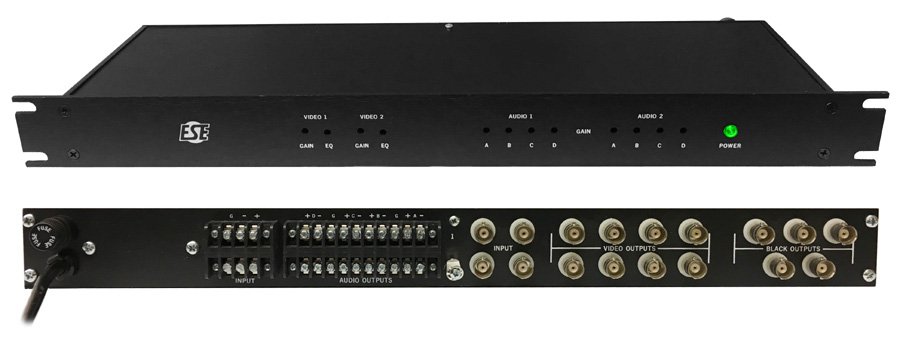

ESE ES2940 Audio/Video Distribution Amplifier

The ES-2940 combines several distribution tools in a single rack unit: two 1x4 video distribution amplifiers with looping inputs, two 1x4 audio distribution amplifiers, and a five-output RS-170A blackburst sync generator. It is aimed at a small facility that needs to split video and audio and supply house sync from one box.

Video connections use BNC and audio uses terminal blocks, with all outputs isolated. Video gain and high-frequency equalization controls tune each video feed, and a gain control is provided for each audio output. It is configured for 110-120 VAC standard, with 220-240 VAC and UL options available.
