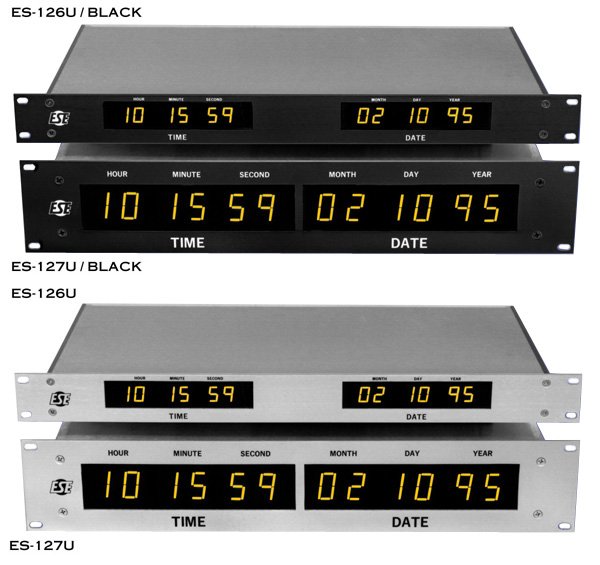

ESE ES-126U Rack-Mount Time and Date Slave Display

The ES-126U is a 1RU time-and-date display that slaves to house time code and shows twelve digits of time and date across .56" amber LED readouts. It reads SMPTE/EBU, ASCII, and ESE time code with automatic code detection, so it locks to whatever timing reference the facility already distributes and stays in step with the master clock.

The display switches between 12 and 24 hour formats and offers an optional time zone offset for satellite or remote sites. It is built on a 19" rack panel and chassis occupying one rack unit, ships standard for 110-120 VAC, and can be ordered with UL approval or 220-240 VAC operation. Viewing distance is roughly 20 feet.
