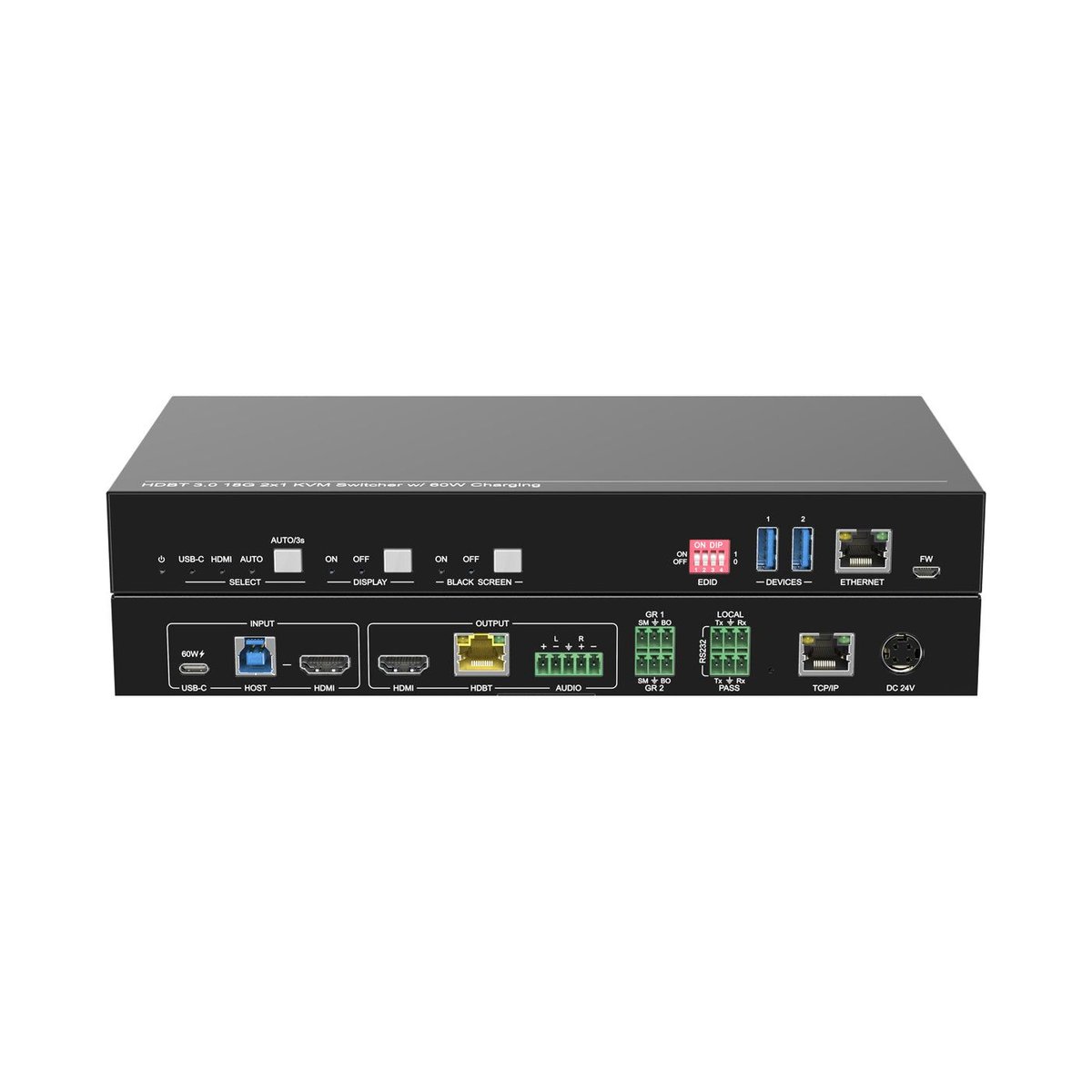

DVDO USBC-HDMI-PS-21-Xtend 4K 2x1 Presentation Switcher / Extender with USB-C & HDMI Inputs

The USBC-HDMI-PS-21-Xtend is DVDO's 4K 2x1 Presentation Switcher / Extender with USB-C & HDMI Inputs, from the presentation switchers line. HDMI 2.0b, HDCP 2.2, HDBaseT 3.0, DP1.4.

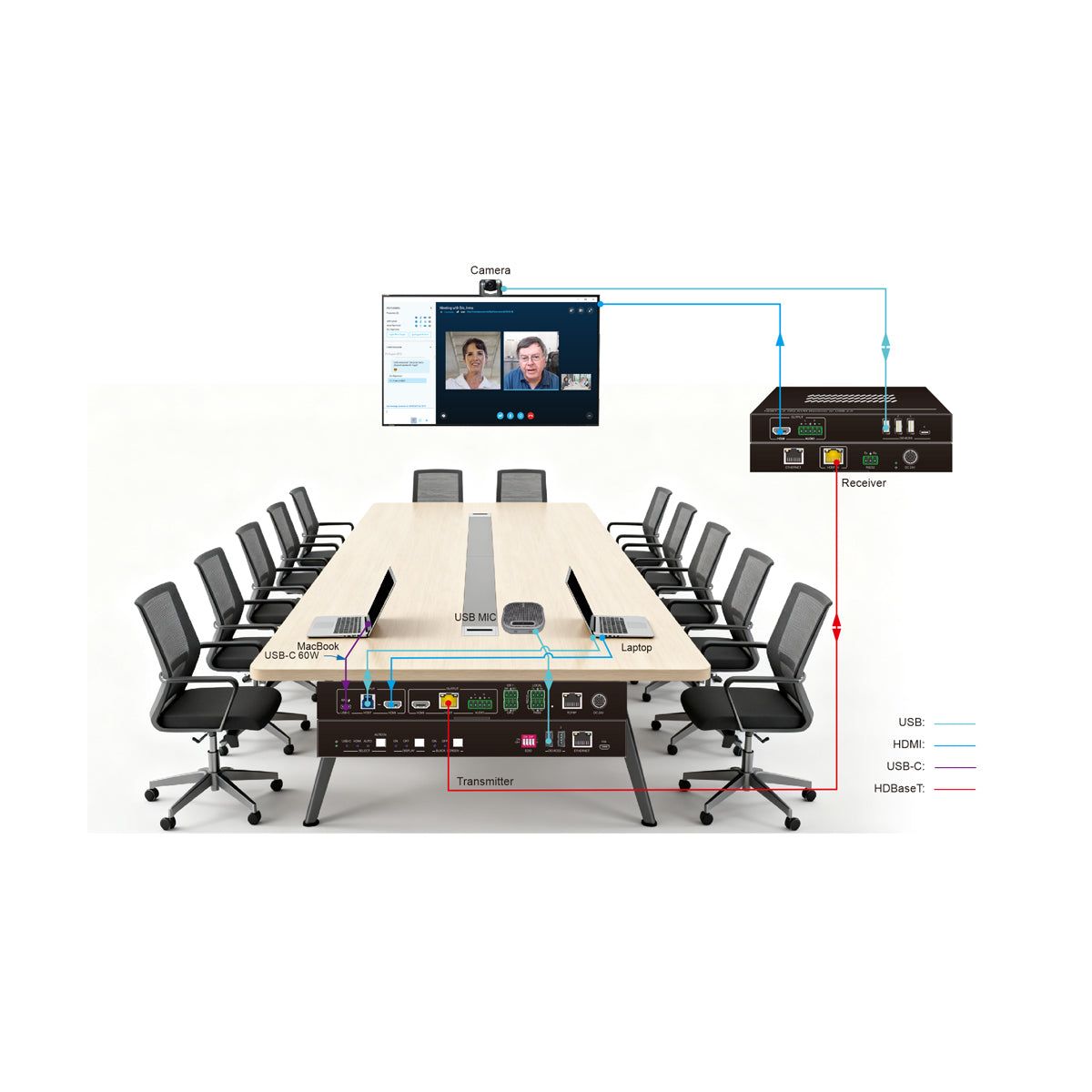

Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps. Transmission of uncompressed 4K & 1080p signals up to 328ft/100m over a single Cat6a or Cat7 cable. Manual & auto switching modes. Inputs: 1 x USB-C + 1 x HDMI. Outputs: 1 x HDMI + 1 x HDBT (Tx) / 1 x HDMI (Rx).

HDCP	HDMI 2.0b, HDCP 2.2, HDBaseT 3.0, DP1.4
Video	Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
Reach	Transmission of uncompressed 4K & 1080p signals up to 328ft/100m over a single Cat6a or Cat7 cable
Signal Handling	Manual & auto switching modes
Connectivity	Inputs: 1 x USB-C + 1 x HDMI

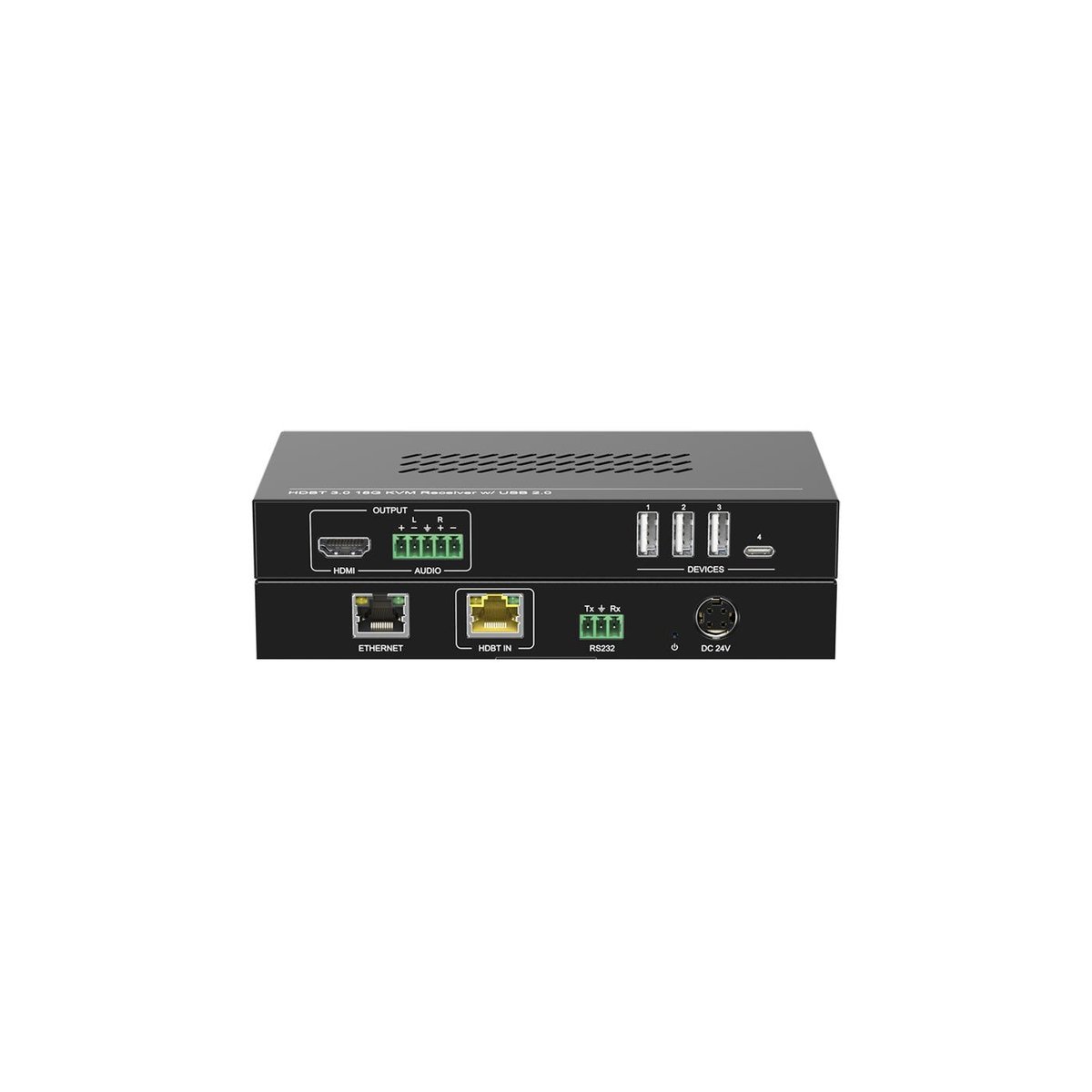

Feature	Outputs: 1 x HDMI + 1 x HDBT (Tx) / 1 x HDMI (Rx)
Performance	USB-C input supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5Gbps and 60W charging
Audio	Audio de-embedding with separate balanced audio outputs on both Tx & Rx
Also	Multiple USB device ports: 2 x USB-A 3.0 on Tx / 3 x USB-A 2.0 + 1 x USB-C on Rx
Optics	Control via front panel buttons, CEC, RS-232, TCP/IP or intuitive web GUI
Product Category	Presentation Switchers
Part Number	DVDO-USBC-HDMI-PS-21-Xtend
