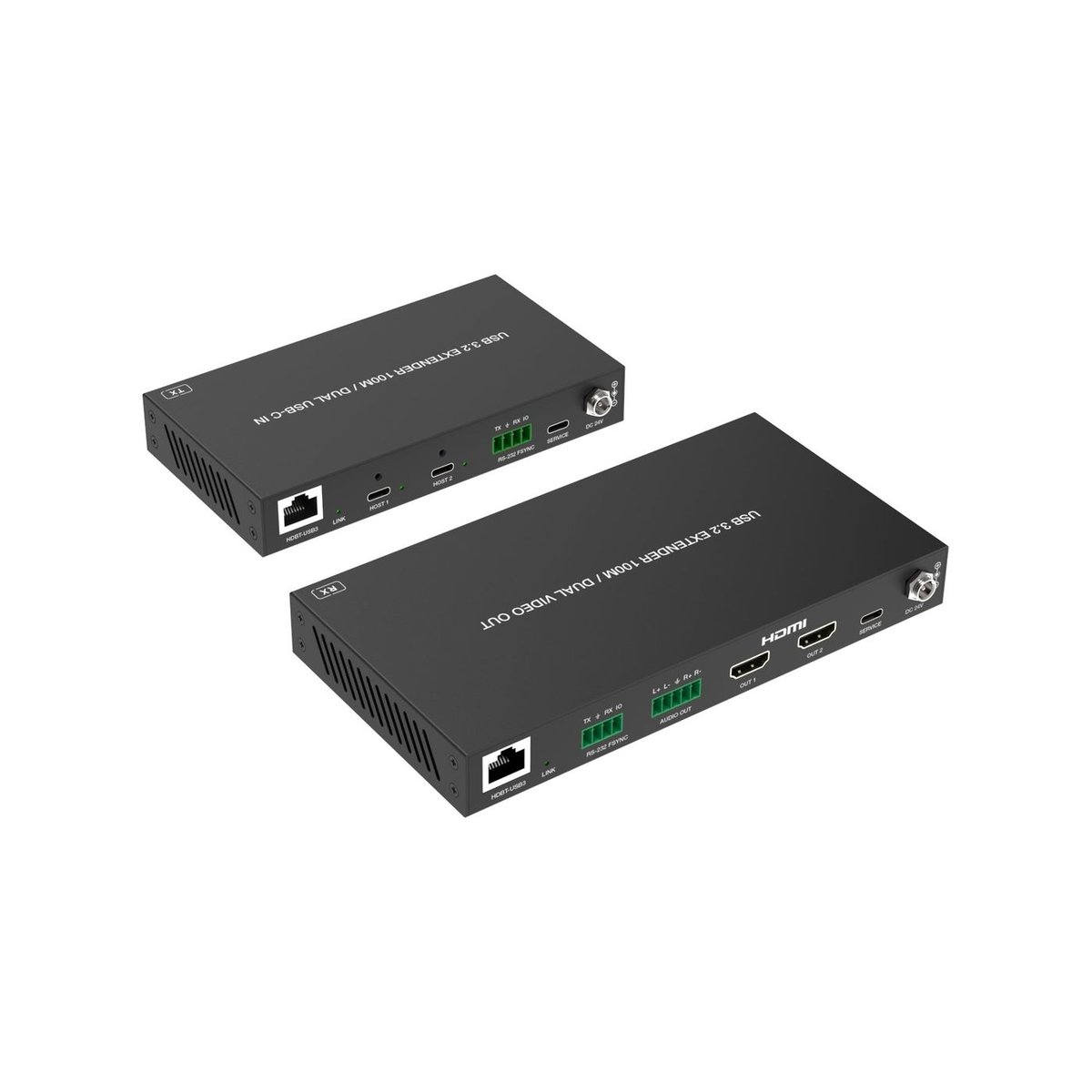

DVDO Xtend-2USBC-2HDMI-100 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT with 2 HDMI Outputs (Tx/Rx)
The Xtend-2USBC-2HDMI-100 is DVDO's 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT with 2 HDMI Outputs (Tx/Rx), from the usb extenders line. Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable.
USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps. Backwards compatible with USB 2.0 and 1.1. Hardware acceleration for isochronous and bulk transfer. Built-in DisplayLink technology for video over USB on dual HDMI outputs, with resolutions up to 4K@60Hz. Tx supports auto and manual switching selectable via switch button or API commands.
| Connectivity | Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable |
|---|---|
| Performance | USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps |
| Feature | Backwards compatible with USB 2.0 and 1.1 |
| Also | Hardware acceleration for isochronous and bulk transfer |
| Video | Built-in DisplayLink technology for video over USB on dual HDMI outputs, with resolutions up to 4K@60Hz |
| Signal Handling | Tx supports auto and manual switching selectable via switch button or API commands |
| Audio | Rx supports audio de-embedding to balanced / unbalanced analog output |
| Control | RS-232 pass-through and API control |
| Product Category | USB Extenders |
| Part Number | DVDO-Xtend-2USBC-2HDMI-100 |
