DVDO Xtend-USBC-HDMI-70 4K60 HDMI & USB-C (DP Alt Mode) 70m Extender Over HDBaseT with USB (Tx/Rx)

The Xtend-USBC-HDMI-70 is DVDO's 4K60 HDMI & USB-C (DP Alt Mode) 70m Extender Over HDBaseT with USB (Tx/Rx), from the hdmi extenders line. Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth & HDBaseT 3.0.

Video resolution up to 4K2K@60Hz (YUV 4:4:4). Uncompressed video transmission up to 230ft/70m for 4K@30Hz & 1080p signals or 131ft/40m for 4K@60Hz signals over a single CAT6A/7 cable. Tx includes 1 x HDMI and 1 x USB-C inputs, 1 x HDBT output, 1 x USB 2.0 host and 3 x USB 2.0 clients. Rx includes 1 x HDMI output, 2x USB 2.0 clients. USB-C and HDMI signal inputs support auto or manual.

HDCP	Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth & HDBaseT 3.0
Video	Video resolution up to 4K2K@60Hz (YUV 4:4:4)
Reach	Uncompressed video transmission up to 230ft/70m for 4K@30Hz & 1080p signals or 131ft/40m for 4K@60Hz signals over a single CAT6A/7 cable

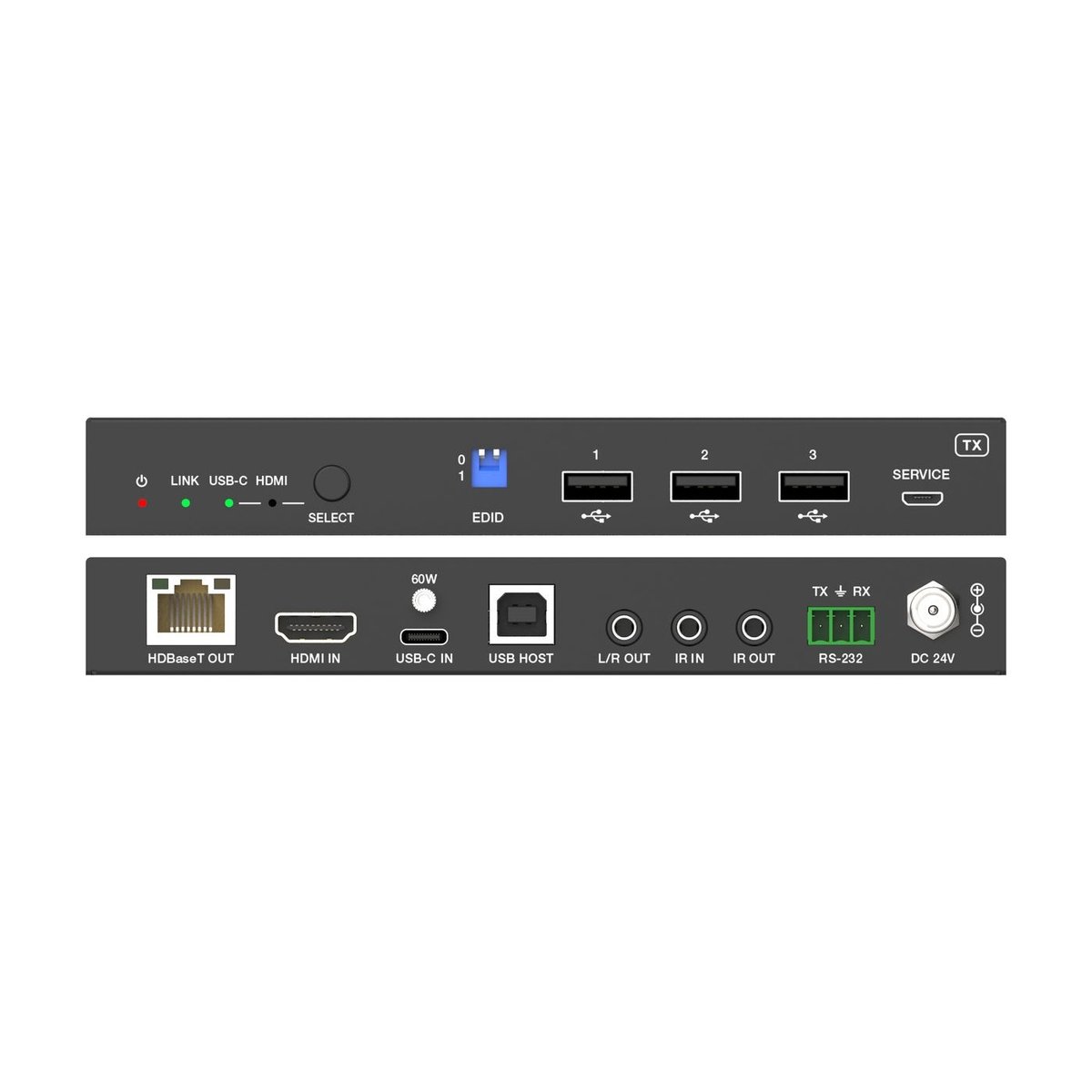

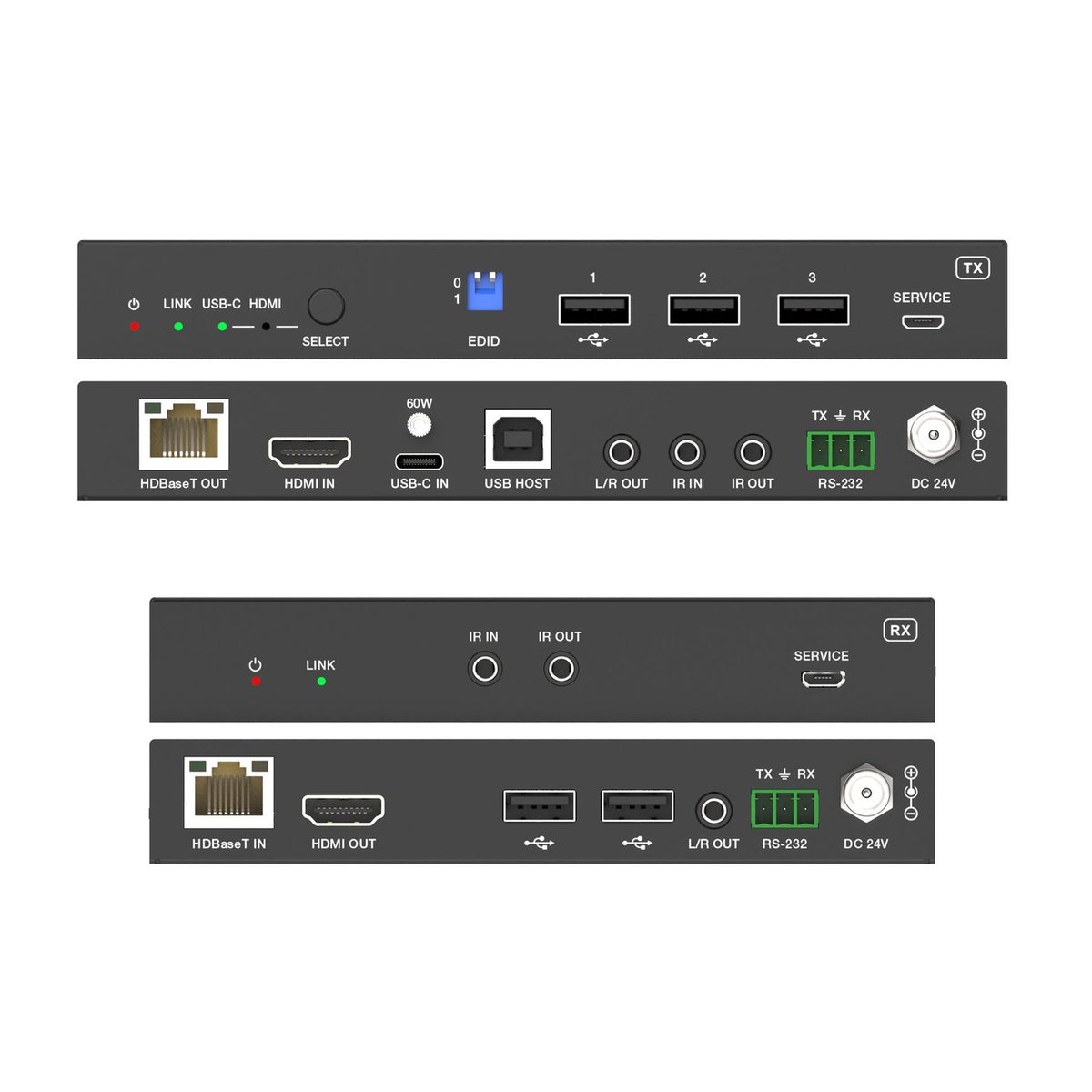

Connectivity	Tx includes 1 x HDMI and 1 x USB-C inputs, 1 x HDBT output, 1 x USB 2.0 host and 3 x USB 2.0 clients

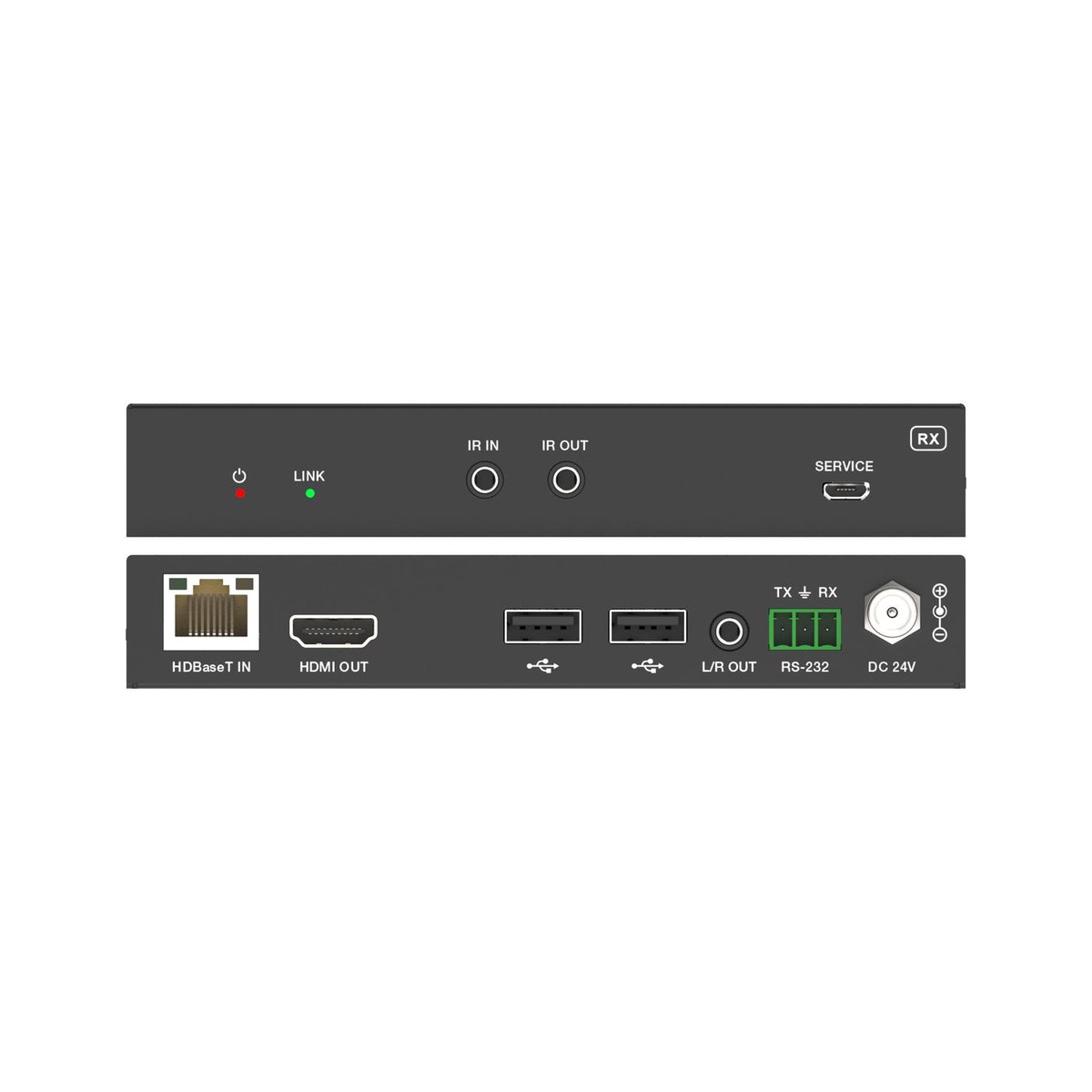

Feature	Rx includes 1 x HDMI output, 2x USB 2.0 clients
Also	USB-C and HDMI signal inputs support auto or manual
Signal Handling	Auto switching supports HDMI 5V or signal detect selection
Power	USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
Audio	HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
Control	RS-232 signal pass-through and guest-mode control
Product Category	HDMI Extenders
Part Number	DVDO-Xtend-USBC-HDMI-70
