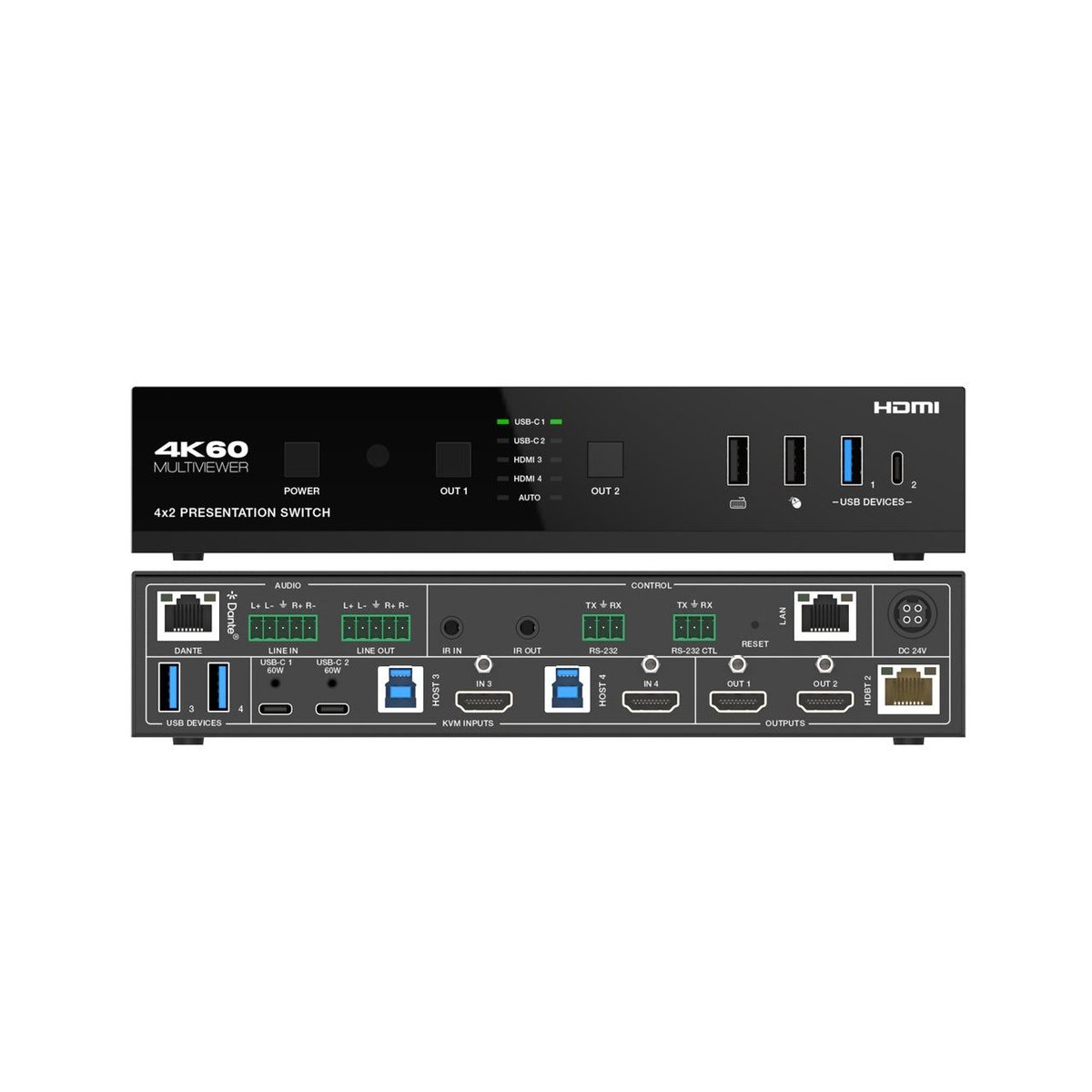

DVDO USBC-HDMI-PS-42-Xtend 4K 4x2 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante

The USBC-HDMI-PS-42-Xtend is DVDO's 4K 4x2 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante, from the presentation switchers line. HDMI 2.0b, HDCP 2.3, HDBaseT 3.0 & DP 1.4 compliant.

Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps. Transmission of uncompressed 4K30 & 1080p signals up to 230ft/70m and 4K60 signals up to 132ft/40m over HDBaseT 3.0 via single Cat6A cable. Multiple multiview display modes: Auto / Single / PIP / PBP / Triple / Quad / Custom. 4x2 seamless switching (single screen) and fast switching (multiview). Manual & auto switching modes.

HDCP	HDMI 2.0b, HDCP 2.3, HDBaseT 3.0 & DP 1.4 compliant
Video	Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
Reach	Transmission of uncompressed 4K30 & 1080p signals up to 230ft/70m and 4K60 signals up to 132ft/40m over HDBaseT 3.0 via single Cat6A cable
Feature	Multiple multiview display modes: Auto / Single / PIP / PBP / Triple / Quad / Custom
Signal Handling	4x2 seamless switching (single screen) and fast switching (multiview)
Also	Manual & auto switching modes
Audio	Inputs: 2 USB-C, 2 HDMI, 1 analog audio, 1 Dante 2ch
Connectivity	Outputs: 1 HDMI, 1 HDMI + 1 HDBT mirrored, 1 analog audio, 1 Dante 2ch
Performance	USB-C supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5Gbps, 1G LAN and 60W charging
Networking	Local USB 3.2 switching and extending USB 2.0 over HDBT 3.0
Control	Built-in DSP with gain, equalizer, volume and delay control
Optics	Control via front panel buttons, IR remote, RS-232, TCP/IP or intuitive Web GUI
Power	Standard PoE from Tx to Rx (TX_PSE, RX_PD)
Product Category	Presentation Switchers
Part Number	DVDO-USBC-HDMI-PS-42-Xtend
