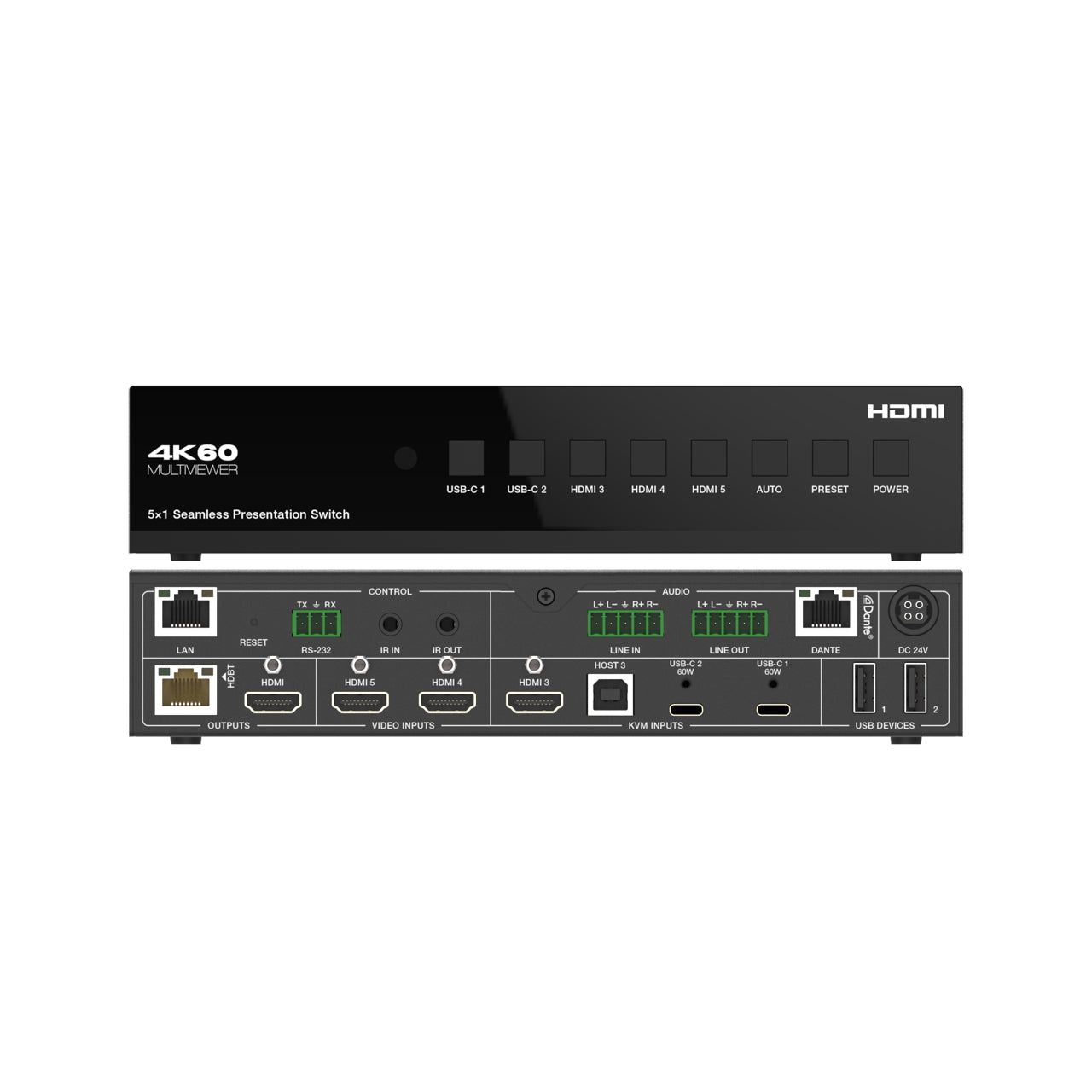

DVDO USBC-HDMI-PS-51 4K 5x1 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante

The USBC-HDMI-PS-51 is DVDO's 4K 5x1 Seamless Presentation Switcher / Extender with USB-C & HDMI Inputs & Dante, from the presentation switchers line. Compliant HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant.

Support video resolutions up to 4K@60Hz 4:4:4 & 18Gbps video bandwidth. Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable. Uncompressed 1080p & 4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable. Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad. 5x1 seamless switching (single screen) and fast switching (multiview) function.

HDCP	Compliant HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
Video	Support video resolutions up to 4K@60Hz 4:4:4 & 18Gbps video bandwidth
Reach	Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable
Feature	Uncompressed 1080p & 4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable
Also	Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad
Signal Handling	5x1 seamless switching (single screen) and fast switching (multiview) function
Audio	Inputs: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
Power	Outputs: 1x HDMI and 1x HDBT (PoE) mirrored, 1x Analog audio, 1x Dante 2ch
Connectivity	USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100m Ethernet and 60W charging
Networking	Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
Optics	Control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI. CEC/RS-232 control external devices ON/OFF
Product Category	Presentation Switchers
Part Number	DVDO-USBC-HDMI-PS-51
