DVDO Matrix-22 4K 2x2 HDMI Matrix Switcher with Audio Outputs and HDR

The Matrix-22 is the smallest useful matrix: two HDMI inputs, two HDMI outputs, and independent routing so each display can show either source at the same time. It runs the full 18 Gbps of HDMI 2.0 at up to 4K2K 50 or 60 Hz in YUV 4:4:4, with HDCP 2.2 and 1.4 and DVI 1.0 compatibility.

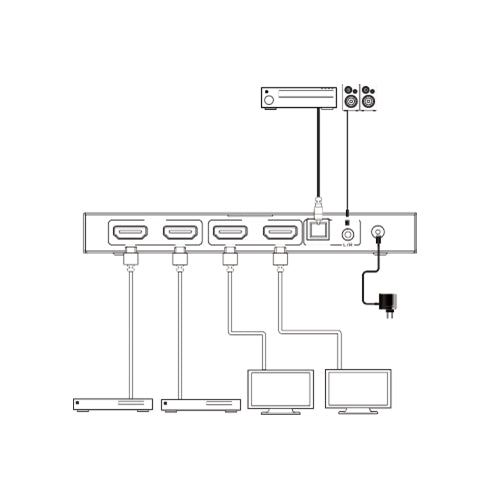

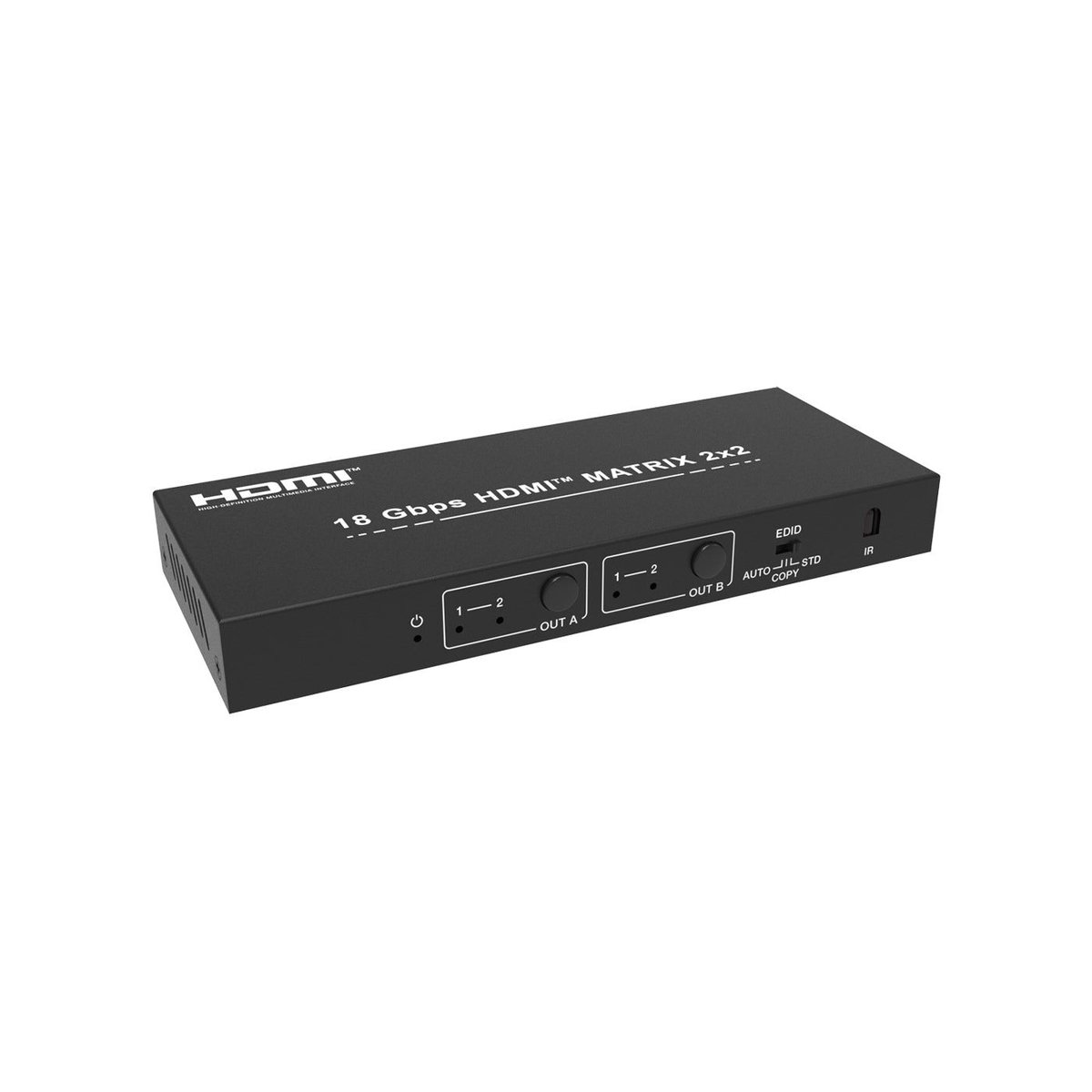

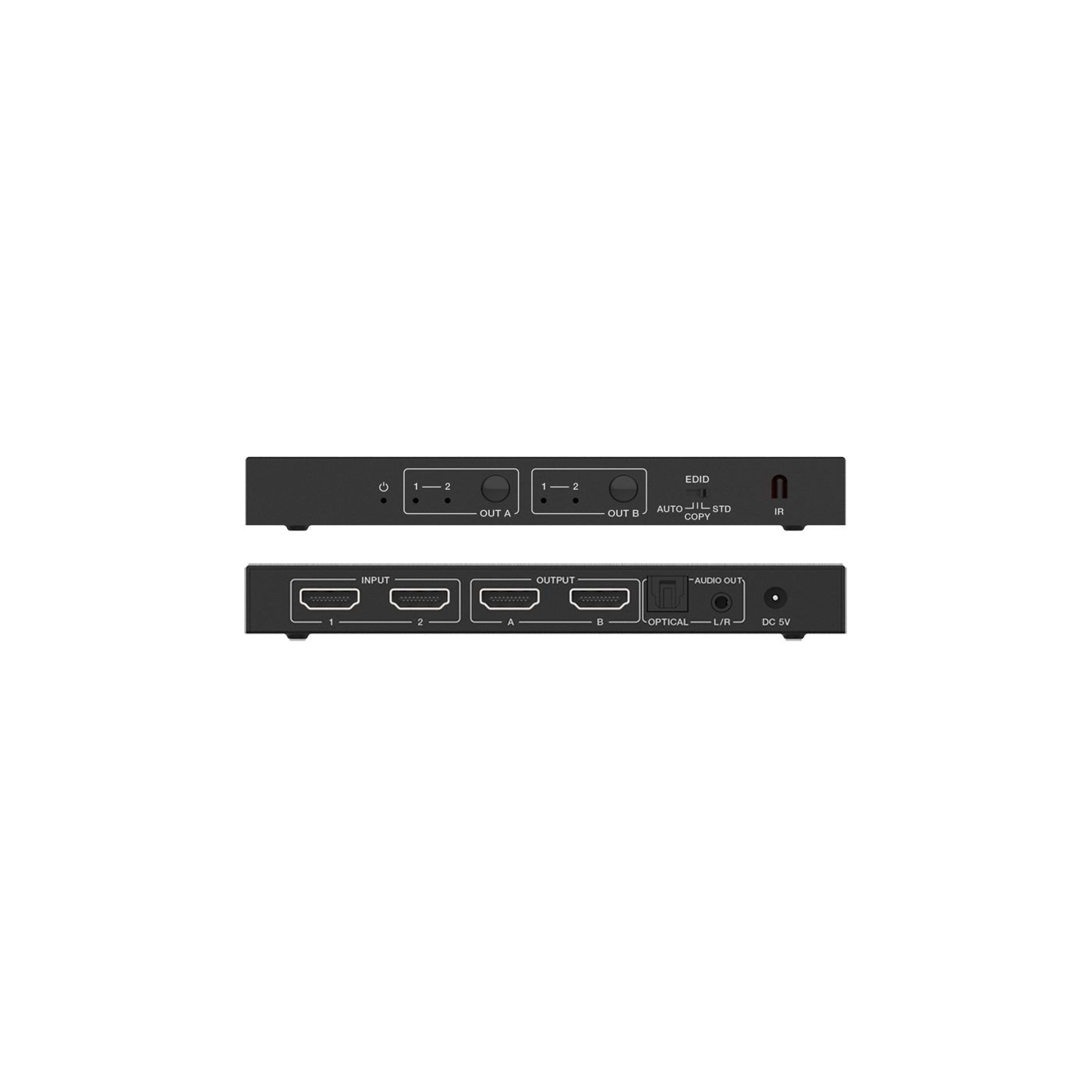

Audio de-embedding is provided on HDMI output A, with separate optical and analog L/R outputs for a soundbar or an amplifier. Dolby Vision, HDR and HDR10+ pass through, and EDID handling offers AUTO, COPY and standard modes for rooms where the two displays are not the same. Control is from the front panel buttons or the supplied IR remote, in a chassis small enough to sit on a shelf or behind a display.

HDMI Compliance	HDMI 2.0, HDCP 2.2 / 1.4, DVI 1.0
Configuration	2 HDMI inputs to 2 HDMI outputs, independently routed
Video Resolutions	Up to 4K2K 50 / 60 Hz (YUV 4:4:4)
Video Bandwidth	18 Gbps
HDR	Dolby Vision, HDR and HDR10+
Audio De-Embedding	From HDMI output A, separate optical and analog L/R outputs
Audio Formats	Analog PCM 2.0; optical LPCM 2.0 / 2.1CH, Dolby 5.1, Dolby TrueHD, Dolby Digital Plus, DTS 5.1, DTS-ES 6, DTS-HD MA 5.1, DTS-HD HRA 5.1
Control	Front panel buttons and IR remote; EDID AUTO / COPY / STD
