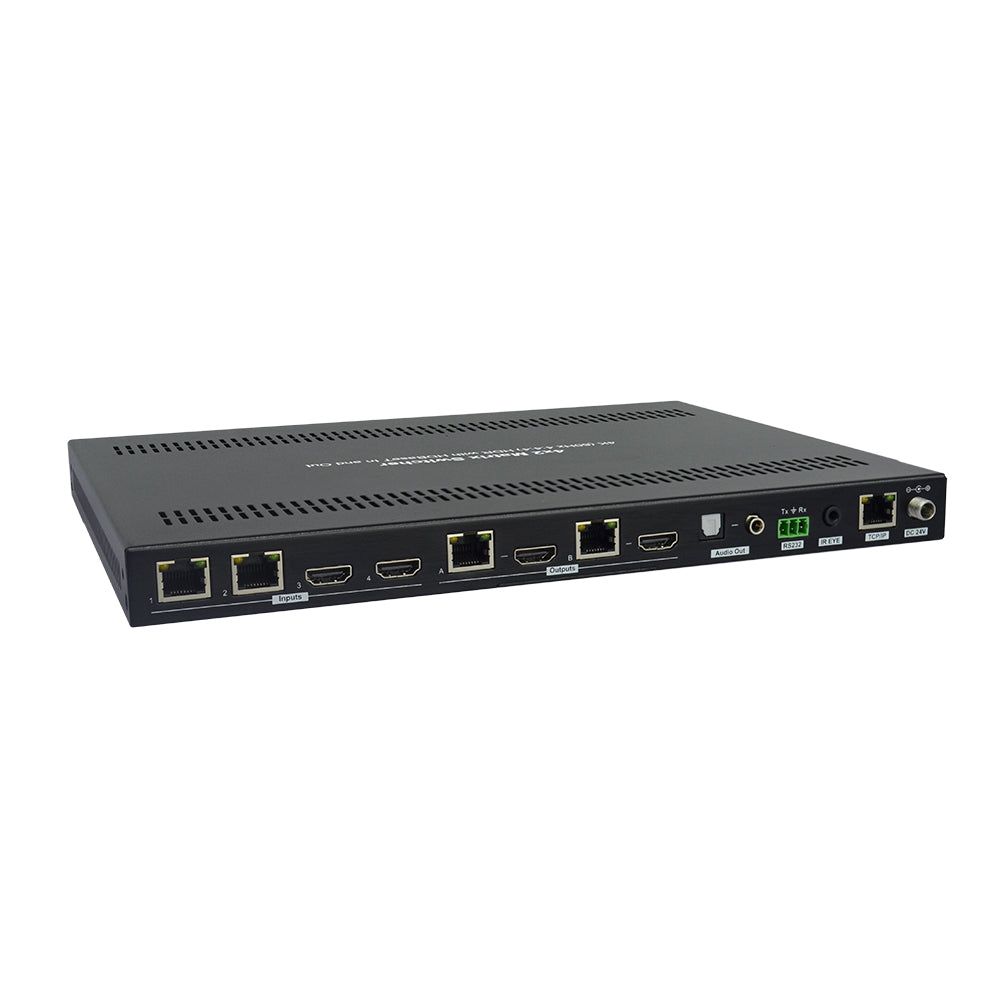

DVDO Matrix-42-HDBT 4K 4x2 Matrix Switcher with HDMI & HDBaseT Inputs & Outputs

The Matrix-42-HDBT is DVDO's 4K 4x2 Matrix Switcher with HDMI & HDBaseT Inputs & Outputs, from the hdmi matrix switchers line. HDMI 2.0, HDCP 2.2.

Video resolutions up to 4K@60Hz 4:4:4 18Gbps. 2 HDMI + 2 HDBaseT inputs & 2 HDMI with 2 mirrored HDBaseT outputs. Individual 4K -> 1080p downscaling for each output. Audio de-embedding with separate S/PDIF optical & analog L/R audio outputs. Supports HDR 10 & Dolby Vision.

HDCP	HDMI 2.0, HDCP 2.2
Video	Video resolutions up to 4K@60Hz 4:4:4 18Gbps

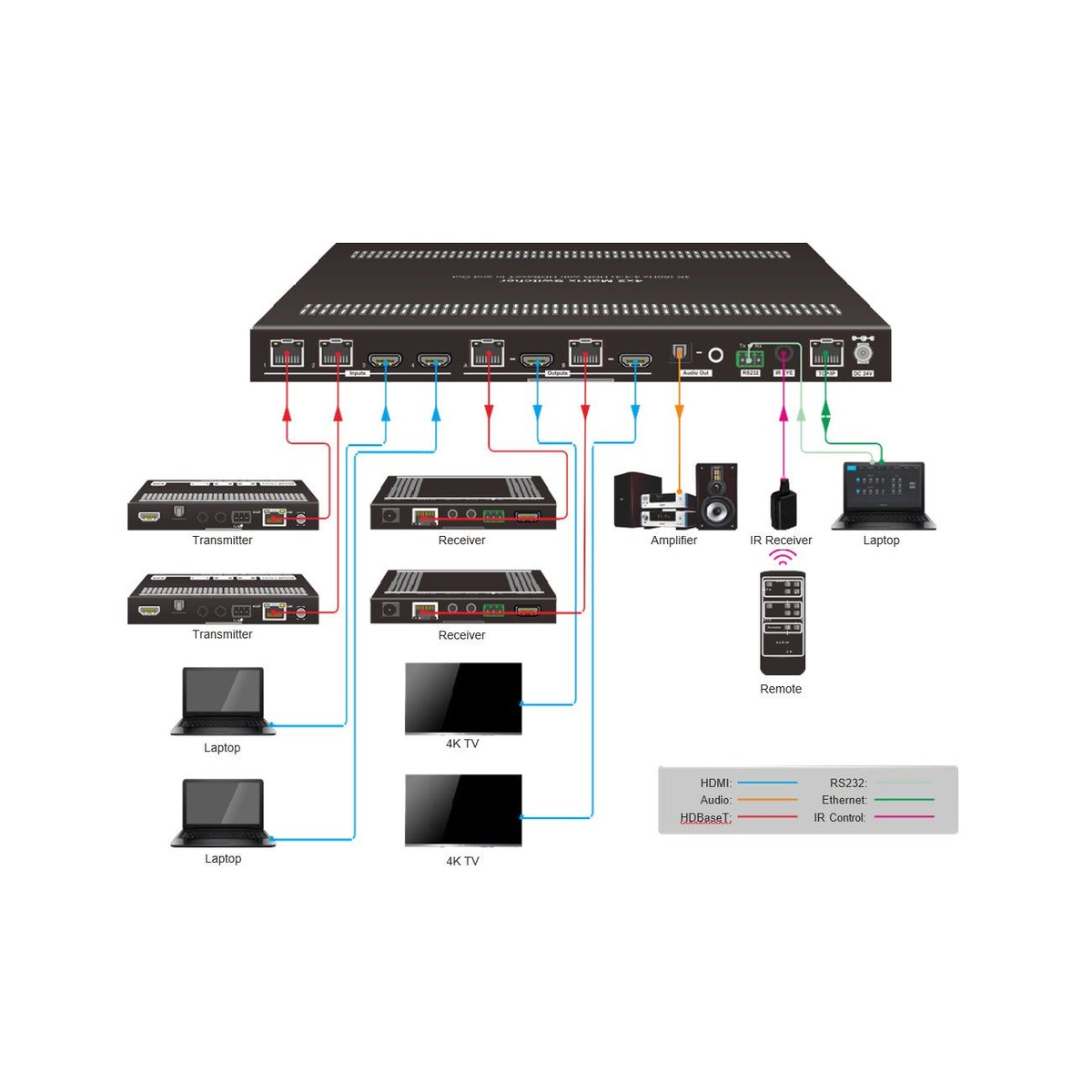

Connectivity	2 HDMI + 2 HDBaseT inputs & 2 HDMI with 2 mirrored HDBaseT outputs
Networking	Individual 4K -> 1080p downscaling for each output
Audio	Audio de-embedding with separate S/PDIF optical & analog L/R audio outputs
Feature	Supports HDR 10 & Dolby Vision
Signal Handling	Advanced EDID management
Optics	Control via front panel buttons, IR, RS232 and IP with intuitive web GUI
Also	HDBaseT inputs and outputs support 48V PoC
Reach	HDBaseT transmission distance: 70m (1080p) / 40m (4K)
Product Category	HDMI Matrix Switchers
Part Number	DVDO-Matrix-42-HDBT
