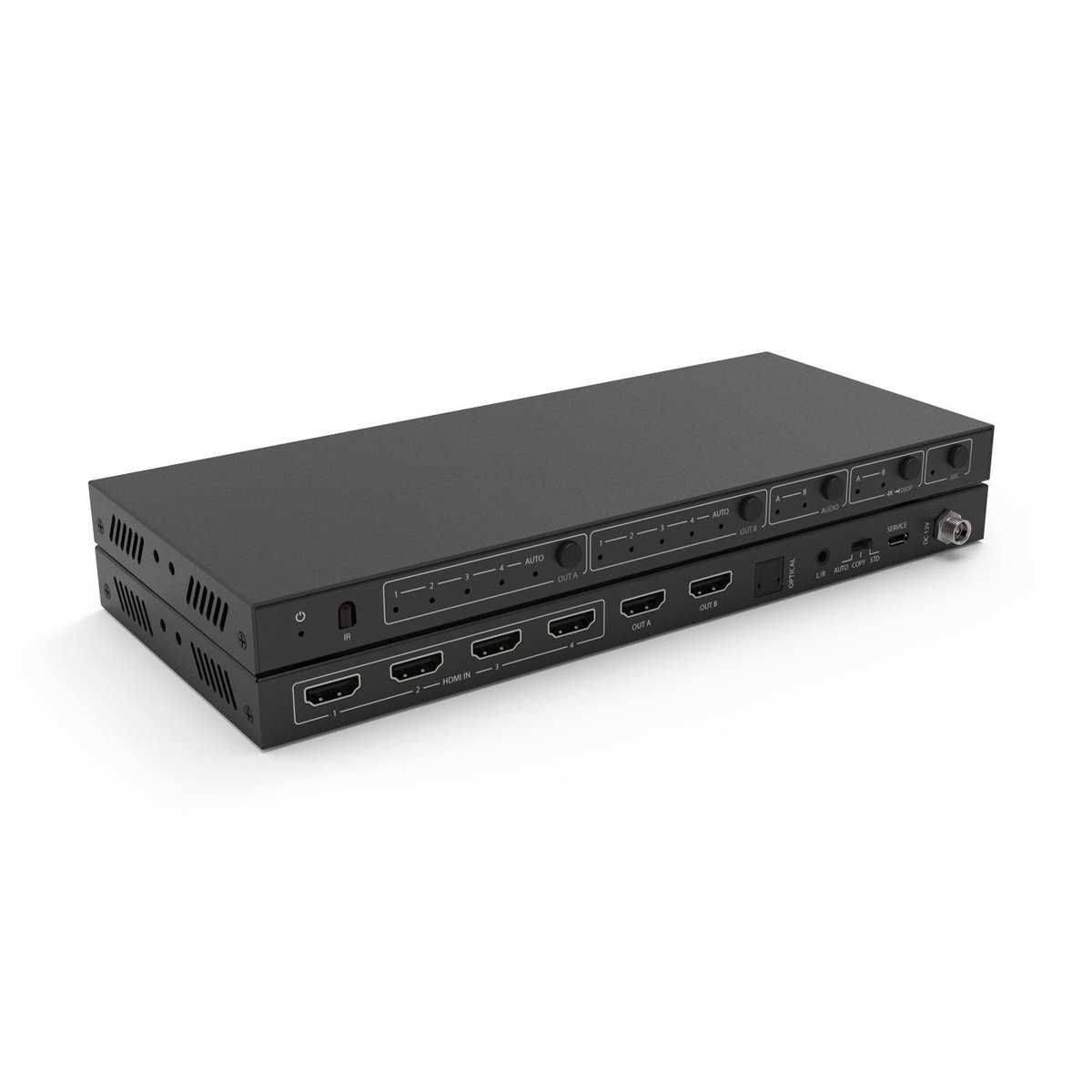

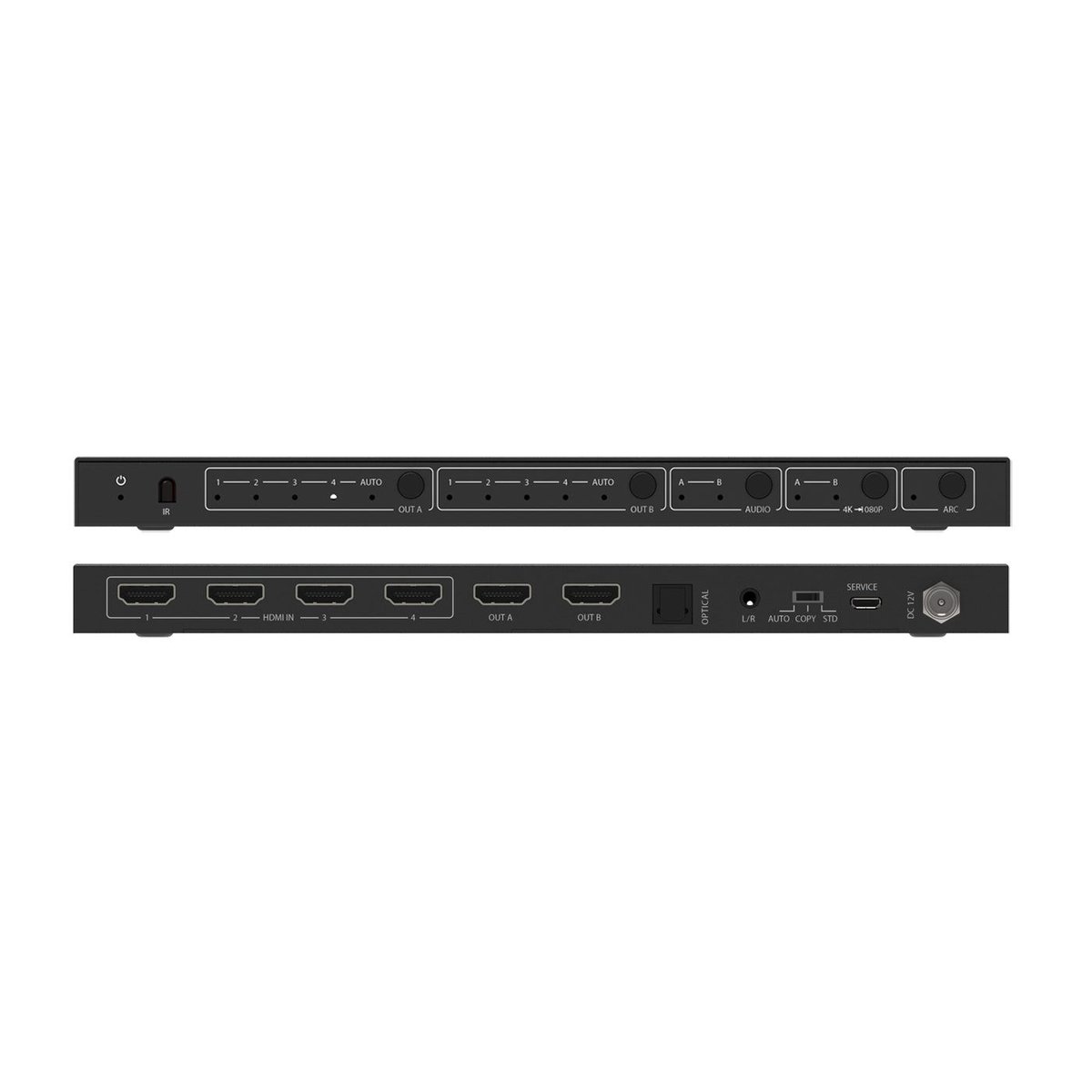

DVDO Matrix-42b 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC

The Matrix-42b is DVDO's 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC, from the hdmi matrix switchers line. HDMI 2.0, HDCP 2.2 / 1.4.

Video resolutions up to 4K2K@60Hz (YUV 4:4:4). Supports 18Gbps video bandwidth. 4K -> 1080p downscaling. Audio de-embedding with optical & analog L/R outputs (both outputting audio from the same HDMI input). ARC (Audio Return Channel).

HDCP	HDMI 2.0, HDCP 2.2 / 1.4
Video	Video resolutions up to 4K2K@60Hz (YUV 4:4:4)
Performance	Supports 18Gbps video bandwidth
Signal Handling	4K -> 1080p downscaling
Audio	Audio de-embedding with optical & analog L/R outputs (both outputting audio from the same HDMI input)
Feature	ARC (Audio Return Channel)
Connectivity	HDMI audio formats include PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Also	Support Dolby Vision, HDR 10+, HLG
Optics	Control via front panel buttons and IR remote control
Form Factor	Compact design for easy and flexible installation
Product Category	HDMI Matrix Switchers
Part Number	DVDO-Matrix-42b
