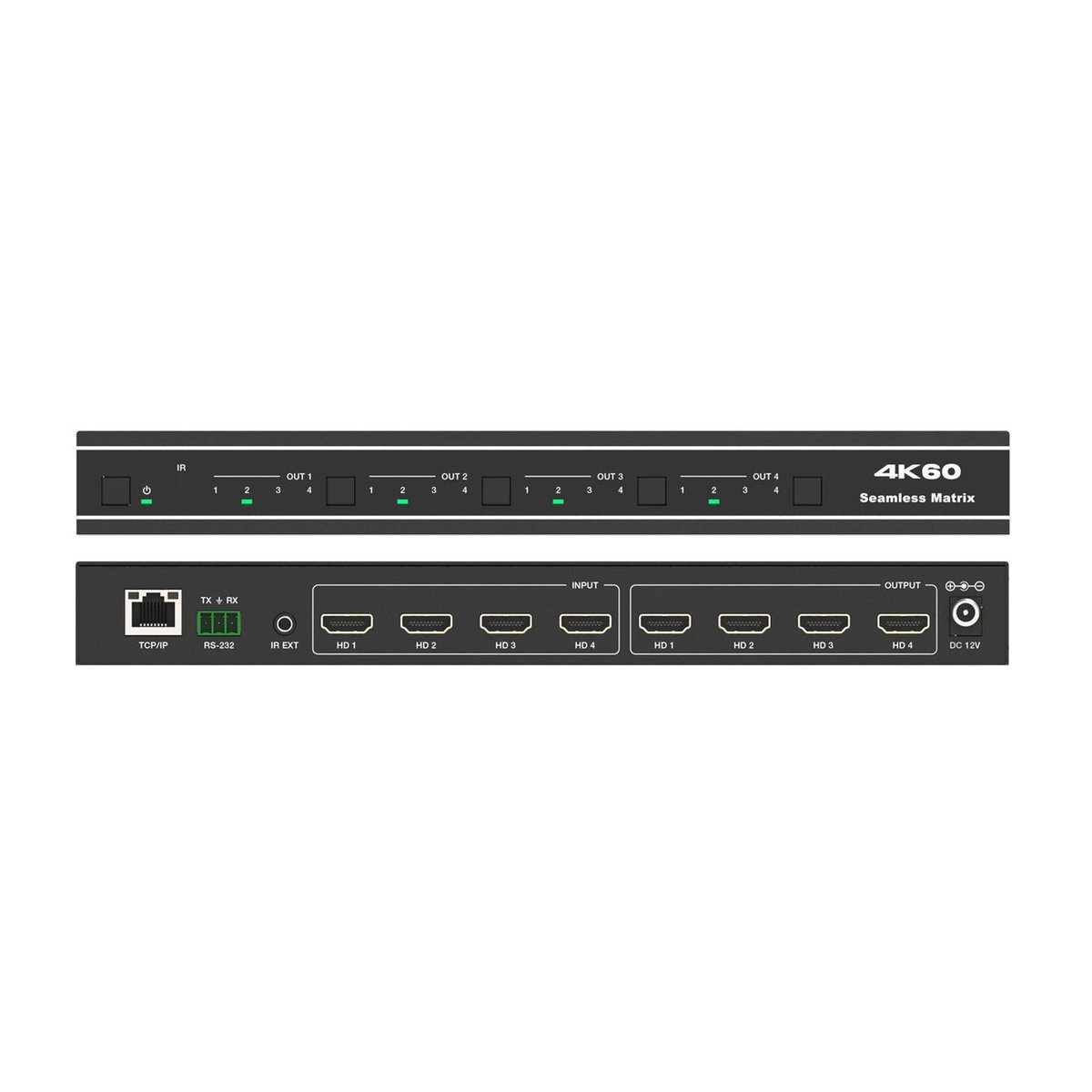

DVDO Matrix-44SS-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller

The Matrix-44SS-VW is DVDO's 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller. Compliant HDCP 2.2 and HDCP 1.4.

Features 2 operational modes. 4 x 4 Matrix (seamless switch). Video wall (2 x 2, 4 x 1 or 1 x 4 configurations). Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920 x 1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4) as specified in HDMI 2.0b. HDMI outputs support upscaling / downscaling to any resolution up to 4096x2160@60Hz 4:4:4.

HDCP	Compliant HDCP 2.2 and HDCP 1.4
Feature	Features 2 operational modes
Signal Handling	4 x 4 Matrix (seamless switch)
Also	Video wall (2 x 2, 4 x 1 or 1 x 4 configurations)
Video	Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920 x 1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4) as specified in HDMI 2.0b
Connectivity	HDMI outputs support upscaling / downscaling to any resolution up to 4096x2160@60Hz 4:4:4
Audio	Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
Control	Web interface module for control and configuration

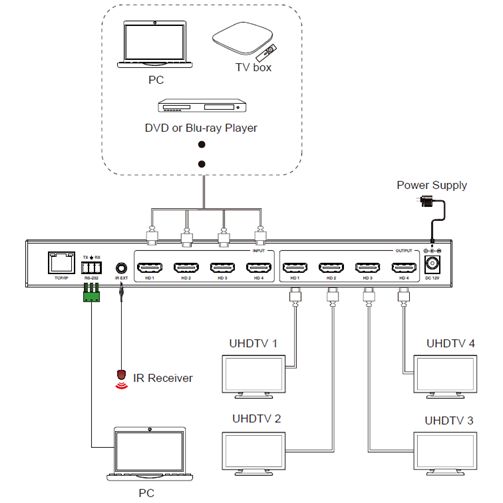

Optics	Control via front panel, IR, RS-232 and TCP/IP
Part Number	DVDO-Matrix-44SS-VW
