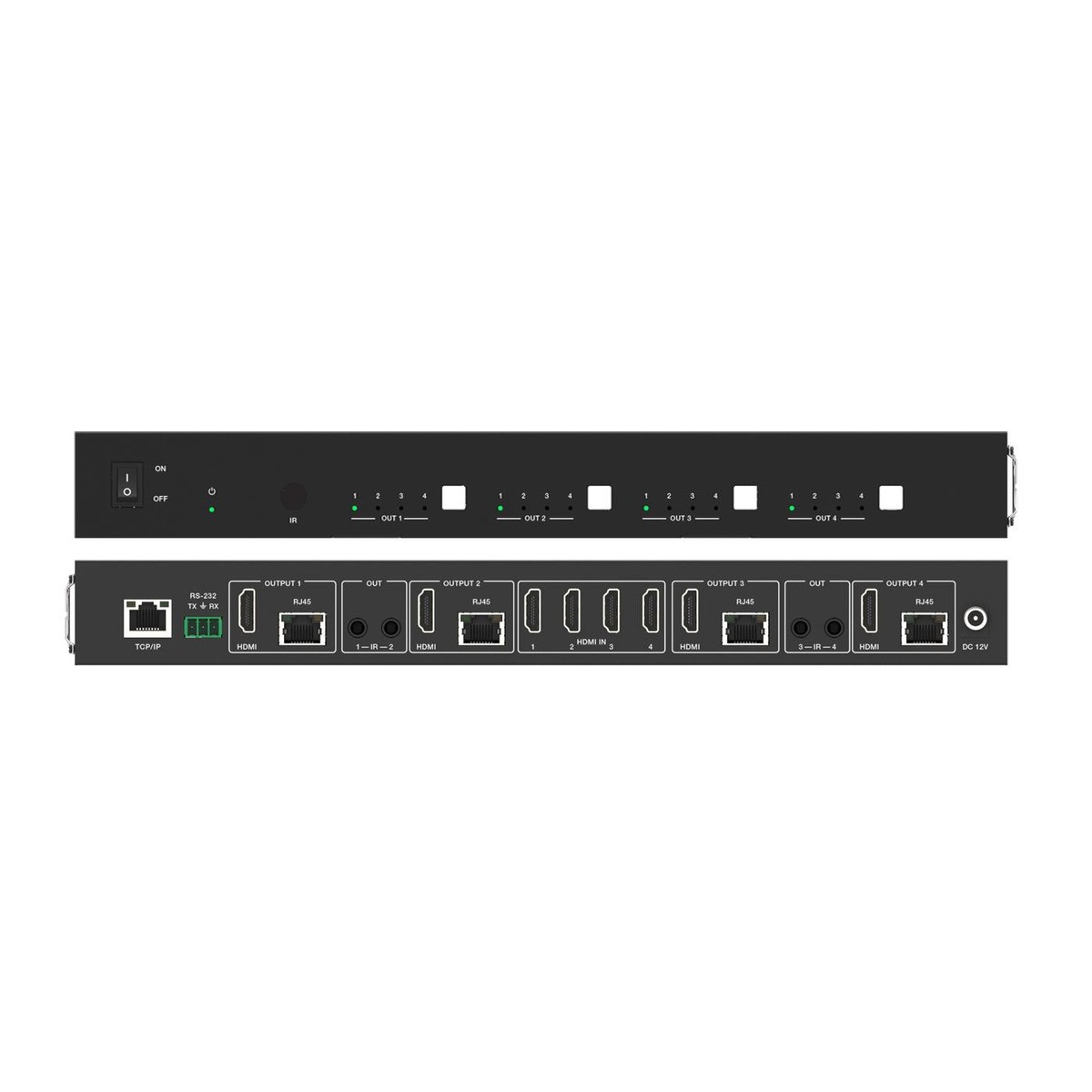

DVDO Matrix-44-CAT 4K 4x4 HDMI Matrix Switcher with Mirrored Category Outputs

The Matrix-44-CAT is DVDO's 4K 4x4 HDMI Matrix Switcher with Mirrored Category Outputs, from the matrix switchers line. HDMI 2.0b and HDCP 2.2/1.x compliant.

Video resolutions up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports. 4 HDMI inputs, 4 HDMI + 4 mirrored CAT outputs. HDMI ports support 18Gbps lossless compressed video bandwidth. HDR, HDR10, HDR10+, Dolby Vision & HLG. CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable.

HDCP	HDMI 2.0b and HDCP 2.2/1.x compliant
Video	Video resolutions up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
Connectivity	4 HDMI inputs, 4 HDMI + 4 mirrored CAT outputs
Performance	HDMI ports support 18Gbps lossless compressed video bandwidth
Audio	HDR, HDR10, HDR10+, Dolby Vision & HLG
Reach	CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
Feature	HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
Control	Advanced EDID management and CEC control
Also	12V POC on all CAT ports
Signal Handling	One-way IR matrix function
Optics	Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Product Category	Matrix Switchers
Part Number	DVDO-Matrix-44-CAT
