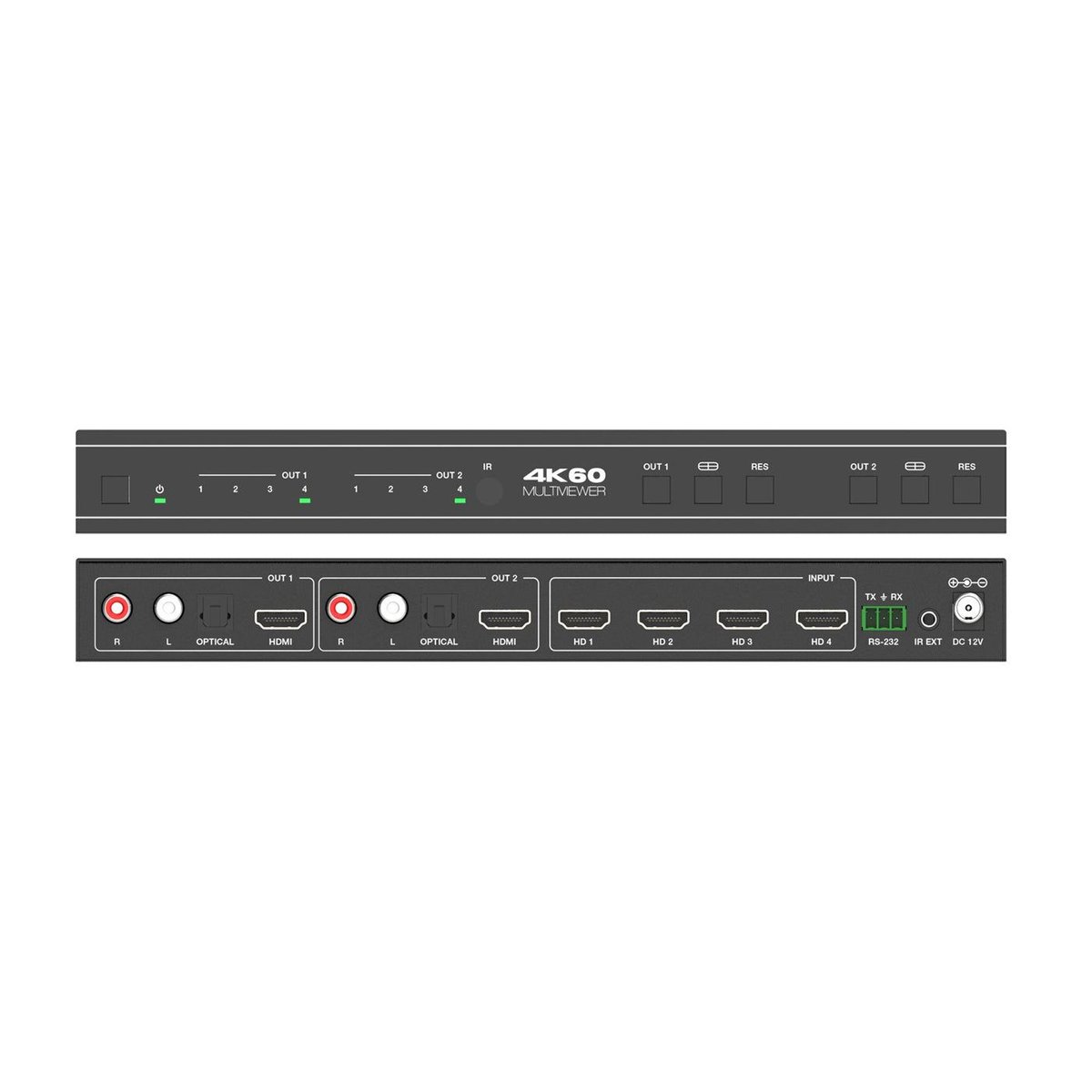

DVDO Matrix-42SS-MV 4K 4x2 Seamless HDMI Matrix Switcher with Multiview

The Matrix-42SS-MV is DVDO's 4K 4x2 Seamless HDMI Matrix Switcher with Multiview. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant.

18Gbps uncompressed bandwidth, input and output resolution up to 4K2K@60 4:4:4. HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through. Seamless switching between inputs. Combined multiple images independent layouts to display on two displays. Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2).

HDCP	HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Video	18Gbps uncompressed bandwidth, input and output resolution up to 4K2K@60 4:4:4
Audio	HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
Signal Handling	Seamless switching between inputs
Feature	Combined multiple images independent layouts to display on two displays
Also	Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
Fiber	Audio de-embedding via analog and optical fiber audio ports
Optics	Control via front panel buttons, IR remote, OSD menu navigation, controller software & RS-232
Part Number	DVDO-Matrix-42SS-MV
