DAS Audio ACTION-M512 Passive Stage Monitor

The DAS Audio ACTION-M512 is a passive stage monitor built around the 12MI low-frequency driver with the M-34 high-frequency driver on a BC-85 waveguide. It covers 63 Hz - 20 kHz, and it reaches 130 dB peak at one metre. Nominal coverage is 80 deg horizontal by 50 deg vertical.

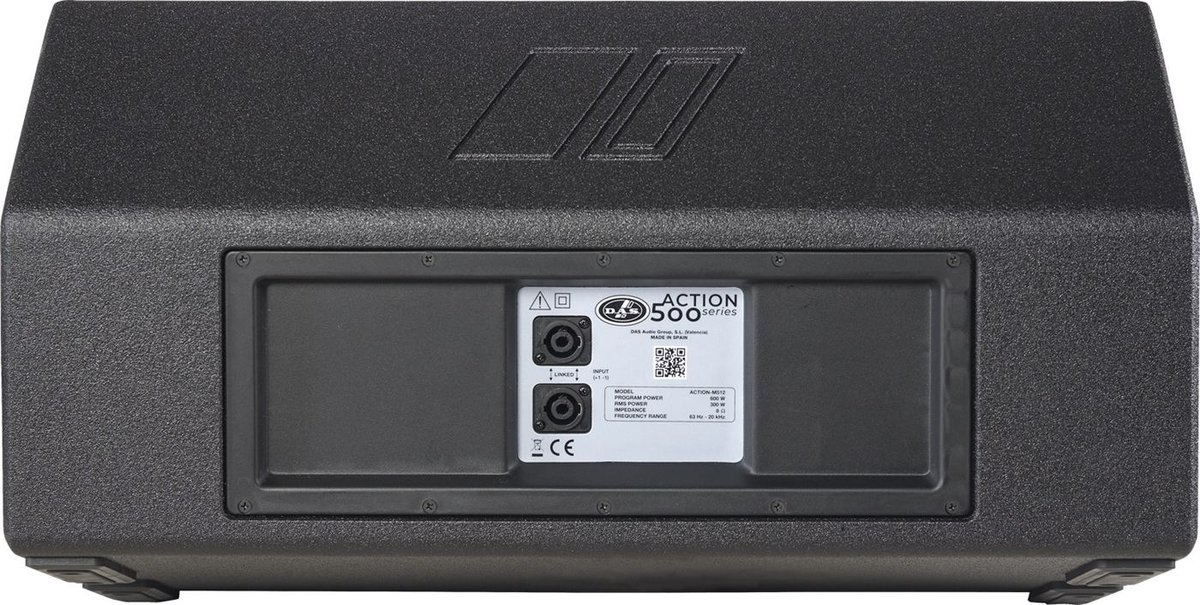

It is a passive box, 8 ohms nominal, handling 300 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Net weight is 17.5 kg (38.5 lb).

Frequency Range (-10 dB)	63 Hz - 20 kHz
Horizontal Coverage (-6 dB)	80 deg
Vertical Coverage	50 deg
Nominal Impedance	8 ohms
RMS Power Handling	300 W
Peak Power Handling	1200 W
On-axis Sensitivity 1W/1 m	95 dB SPL
Maximum Peak SPL at 1 m	130 dB
