DAS Audio ARTEC-510 Passive Loudspeaker

The DAS Audio ARTEC-510 is a passive loudspeaker built around the 10P low-frequency driver with the M-60N compression driver on a BC-115 waveguide. It covers 55 Hz - 20 kHz, and it reaches 128 dB peak at one metre. Nominal coverage is 110 deg horizontal by 50 deg vertical.

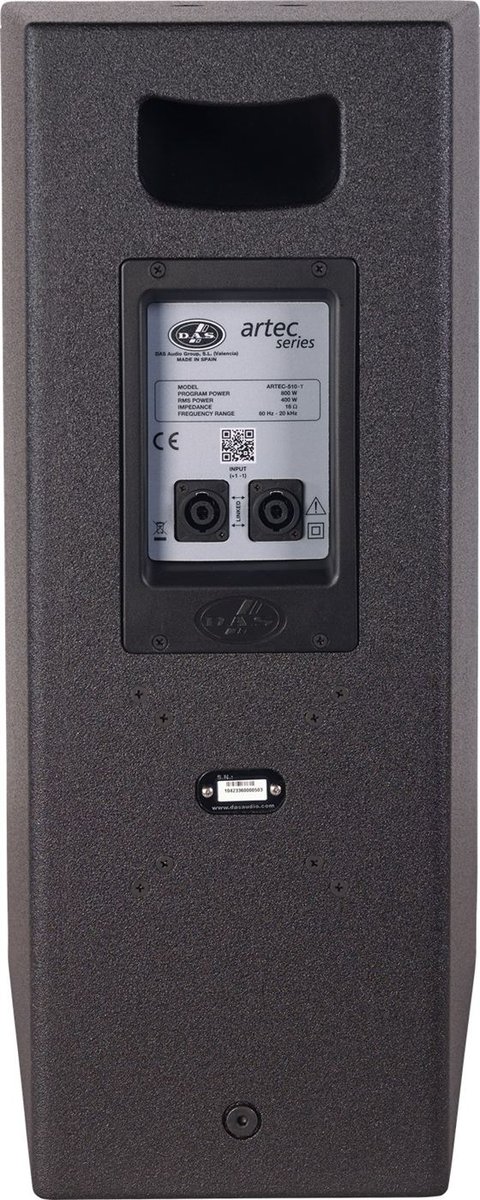

It is a passive box, 8 ohms nominal, handling 400 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 19.0 kg (41.9 lb).

Frequency Range (-10 dB)	55 Hz - 20 kHz
Horizontal Coverage (-6 dB)	110 deg
Vertical Coverage	50 deg
Nominal Impedance	8 ohms
RMS Power Handling	400 W
Peak Power Handling	1600 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	128 dB
