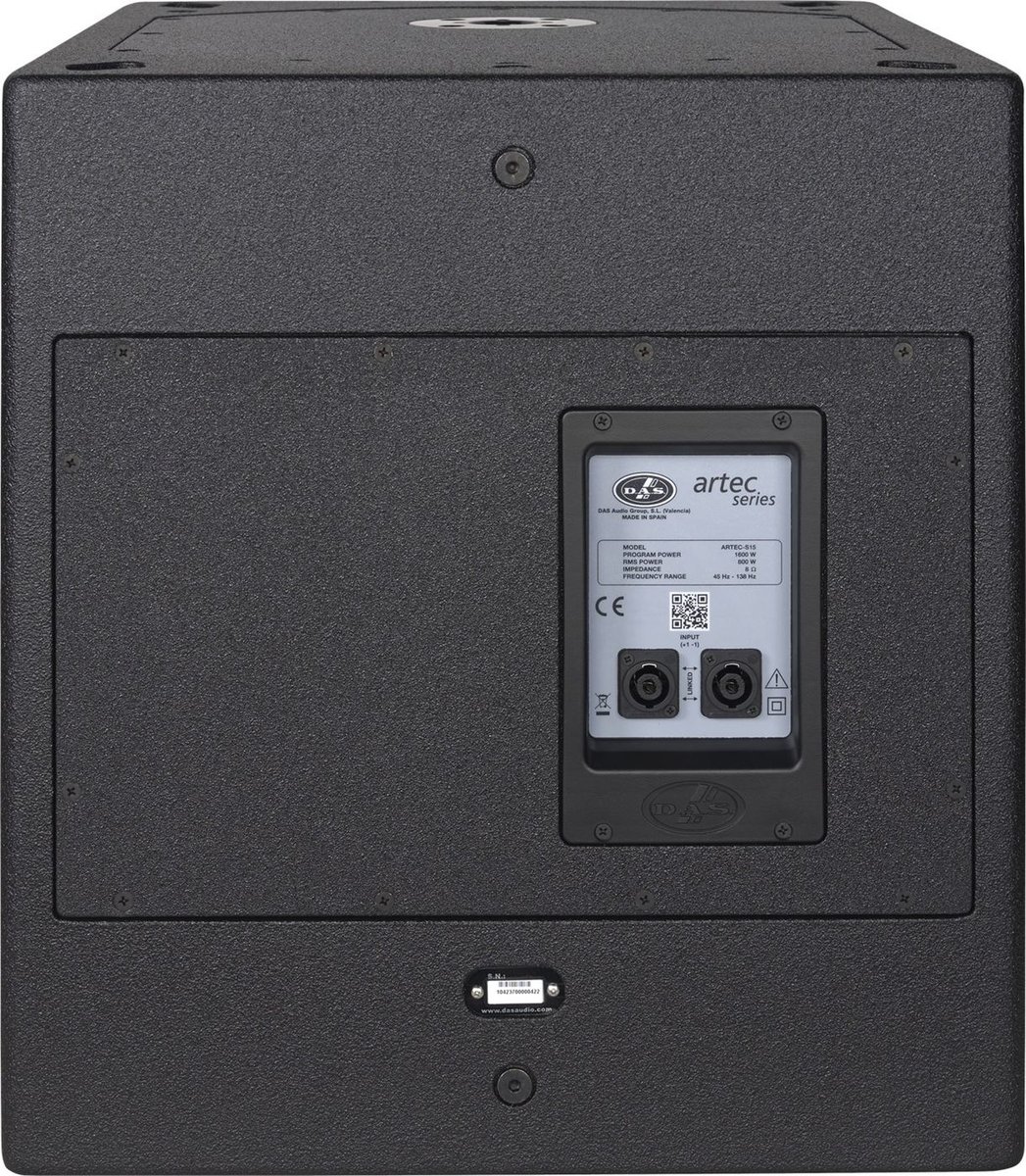

DAS Audio ARTEC-S15 Passive Subwoofer

The DAS Audio ARTEC-S15 is a passive subwoofer built around the 15LXN low-frequency driver. It covers 45 Hz - 138 Hz, and it reaches 137 dB peak at one metre.

It is a passive box, 8 ohms nominal, handling 800 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 32.0 kg (70.6 lb).

Frequency Range (-10 dB)	45 Hz - 138 Hz
Nominal Impedance	8 ohms
RMS Power Handling	800 W
Peak Power Handling	3200 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	137 dB
LF Driver	15LXN
Audio Input Connector	1 x speakON NL4
