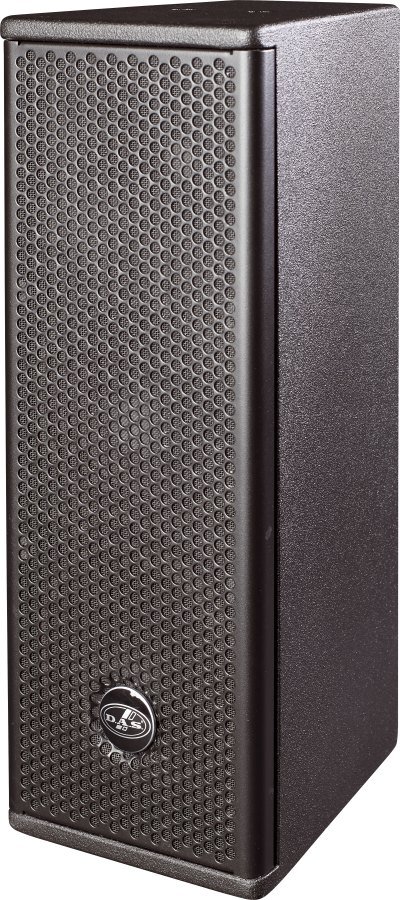

DAS Audio ARTEC-526 Passive Loudspeaker

The DAS Audio ARTEC-526 is a passive loudspeaker built around the 6P low-frequency driver with the M-34 compression driver on a BC-88 waveguide. It covers 60 Hz - 20 kHz, and it reaches 125 dB peak at one metre. Nominal coverage is 80 deg horizontal by 80 deg vertical.

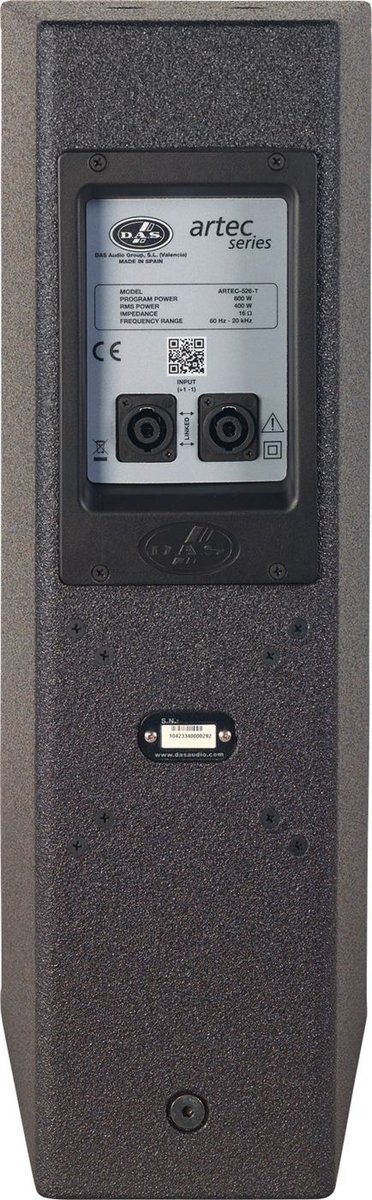

It is a passive box, 16 ohms nominal, handling 400 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 14.5 kg (32.0 lb).

Frequency Range (-10 dB)	60 Hz - 20 kHz
Horizontal Coverage (-6 dB)	80 deg
Vertical Coverage	80 deg
Nominal Impedance	16 ohms
RMS Power Handling	400 W
Peak Power Handling	1600 W
On-axis Sensitivity 1W/1 m	93 dB SPL
Maximum Peak SPL at 1 m	125 dB
