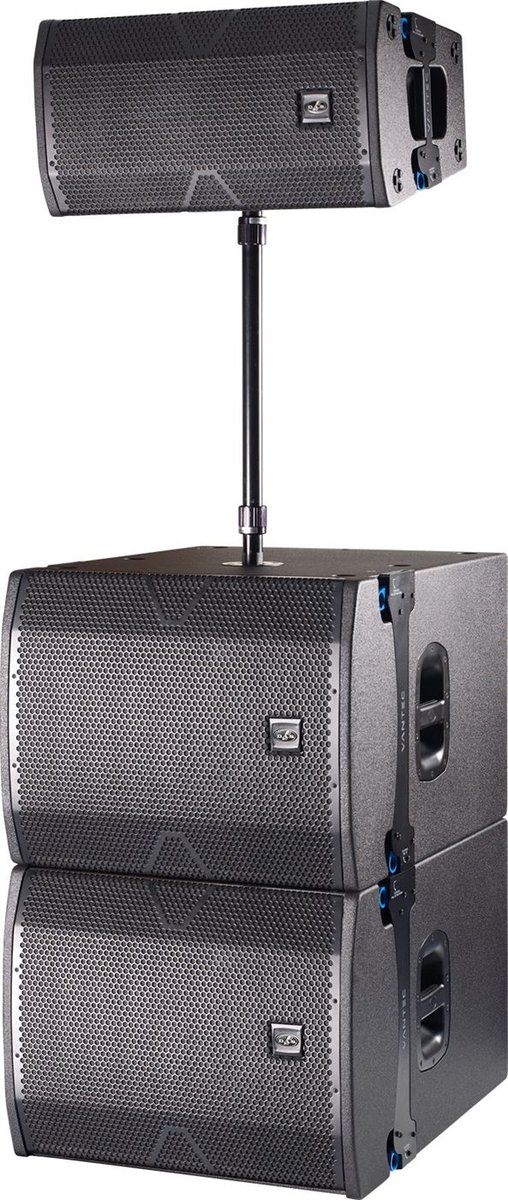

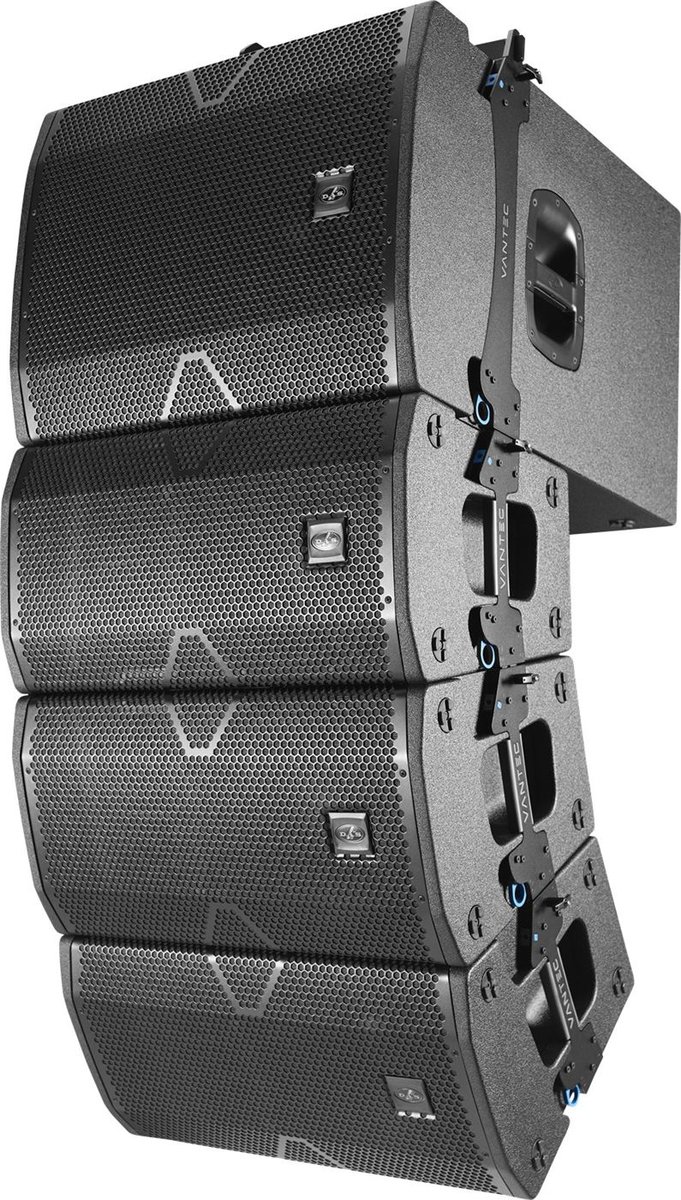

DAS Audio VANTEC-20A Powered Curved-Source Line Array Module

The DAS Audio VANTEC-20A is a powered curved-source line array module built around the 12F4C low-frequency driver with the M-60 compression driver on a BC-915 waveguide. It covers 63 Hz - 20 kHz, and it reaches 135 dB peak at one metre. Nominal coverage is 90 deg horizontal by 15 deg vertical.

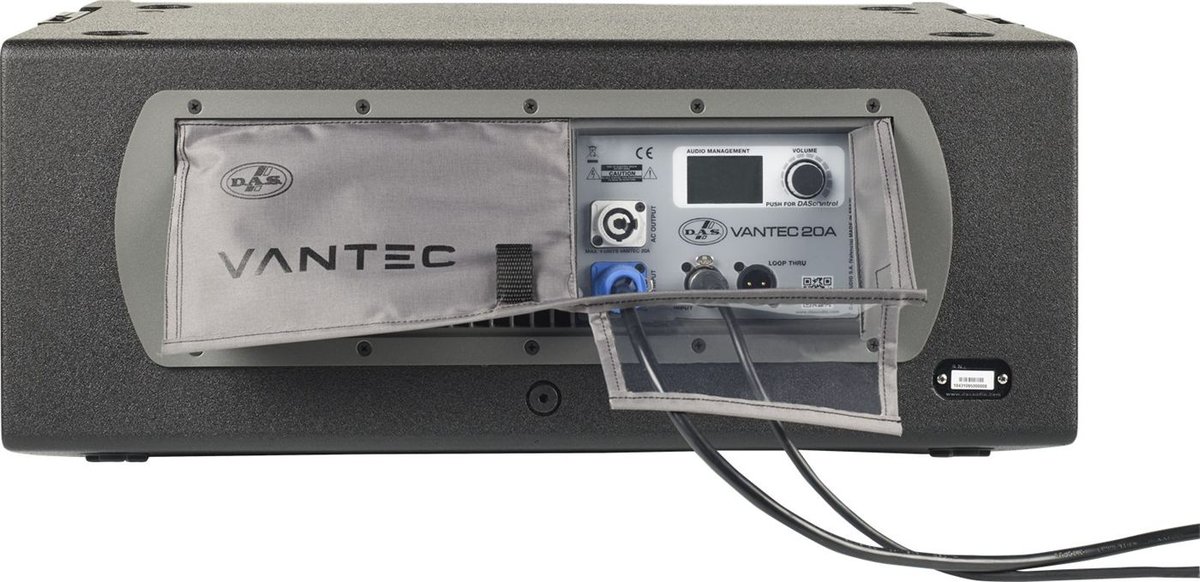

Amplification is on board, rated 750 W continuous and 1500 W peak. Signal comes in on 2 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: Captive Rigging System. Net weight is 28.5 kg (62.8 lb).
