DAS Audio ARTEC-526A Powered Loudspeaker

The DAS Audio ARTEC-526A is a powered loudspeaker built around the 6P4 low-frequency driver with the M-34 compression driver on a BC-88 waveguide. It covers 60 Hz - 20 kHz, and it reaches 125 dB peak at one metre. Nominal coverage is 80 deg horizontal by 80 deg vertical.

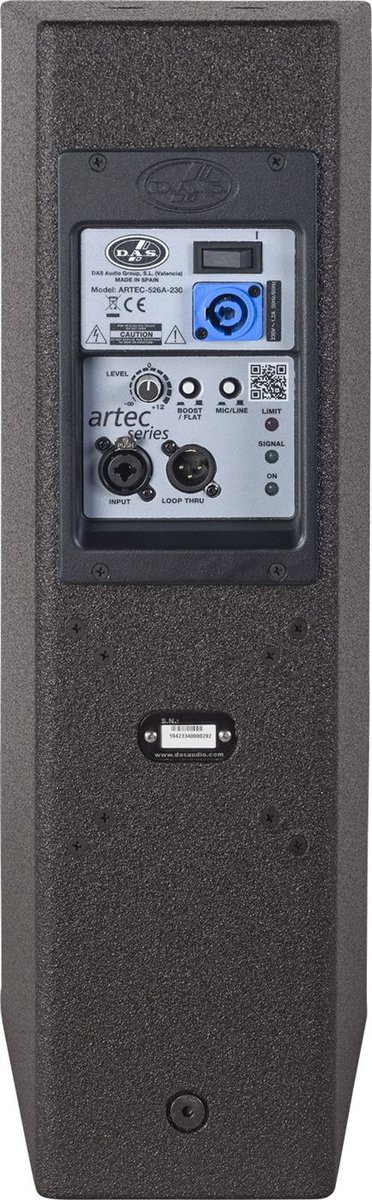

Amplification is on board and split per band: LF at 720 W peak, HF at 360 W peak. Signal comes in on 1 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 11.0 kg (24.3 lb).
