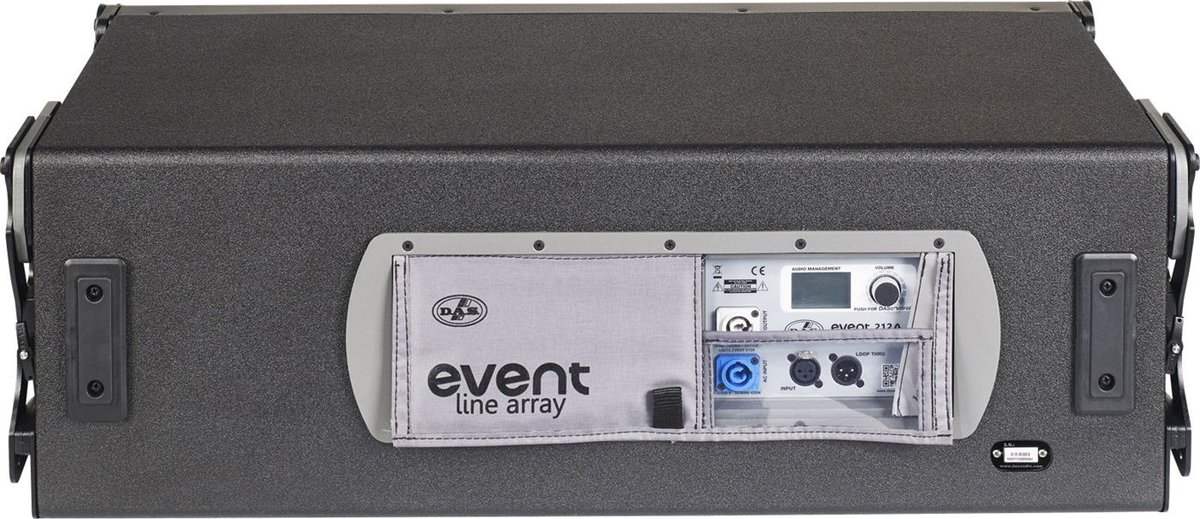

DAS Audio EVENT-212A Powered Line Array Module

The DAS Audio EVENT-212A is a powered line array module built around a 12-inch 12MI4 low-frequency driver with the M-75 compression driver on a BPS-90VNT waveguide. It covers 60 Hz -20 kHz, and it reaches 136 dB peak at one metre. Nominal horizontal coverage is 90 deg.

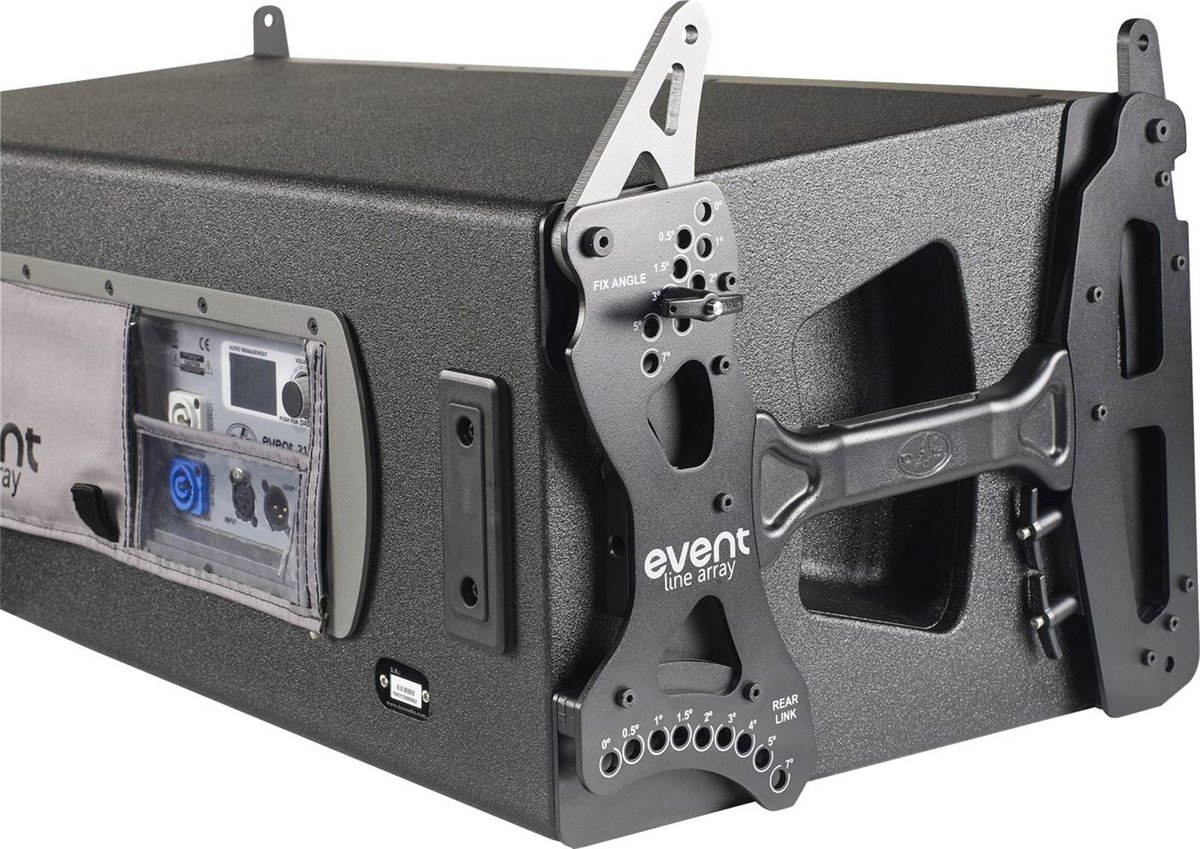

Amplification is on board and split per band: LF at 1000 W peak, MF at 1000 W peak, HF at 1000 W peak. Signal comes in on 1 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: Captive Rigging System. Net weight is 41.0 kg (90.4 lb).

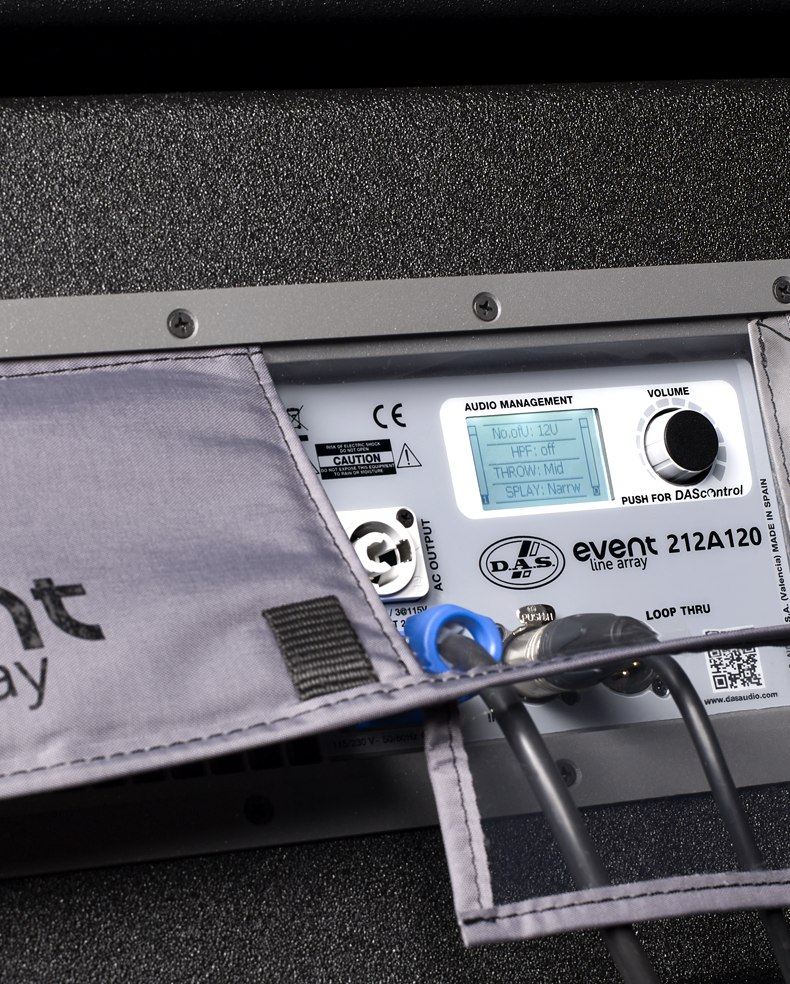

  • Inputs1 x Female XLR
  • Frequency Range (-10 dB)60 Hz -20 kHz
  • Nominal Amplifier Power LF (peak)1000 W
  • Weight41,0 kg ( 90,4 lb )
  • Horizontal Coverage (-6 dB)90 deg
Frequency Range (-10 dB)60 Hz -20 kHz
Horizontal Coverage (-6 dB)90 deg
Vertical CoverageSplay Dependent
Nominal Amplifier Power LF (peak)1000 W
Nominal Amplifier Power MF (peak)1000 W
Nominal Amplifier Power HF (peak)1000 W
Maximum Peak SPL at 1 M136 dB
LF Driver12MI4
Dimensions325 x 855 x 435 mm 12,8 x 33,7 x 17,1 in
Weight41,0 kg ( 90,4 lb )
Inputs1 x Female
