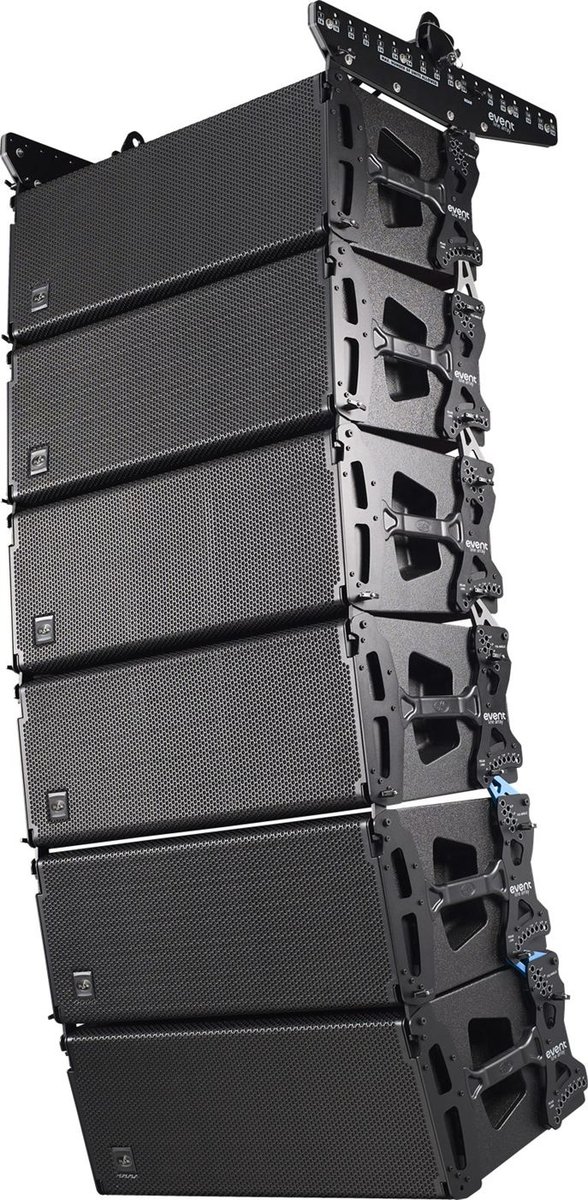

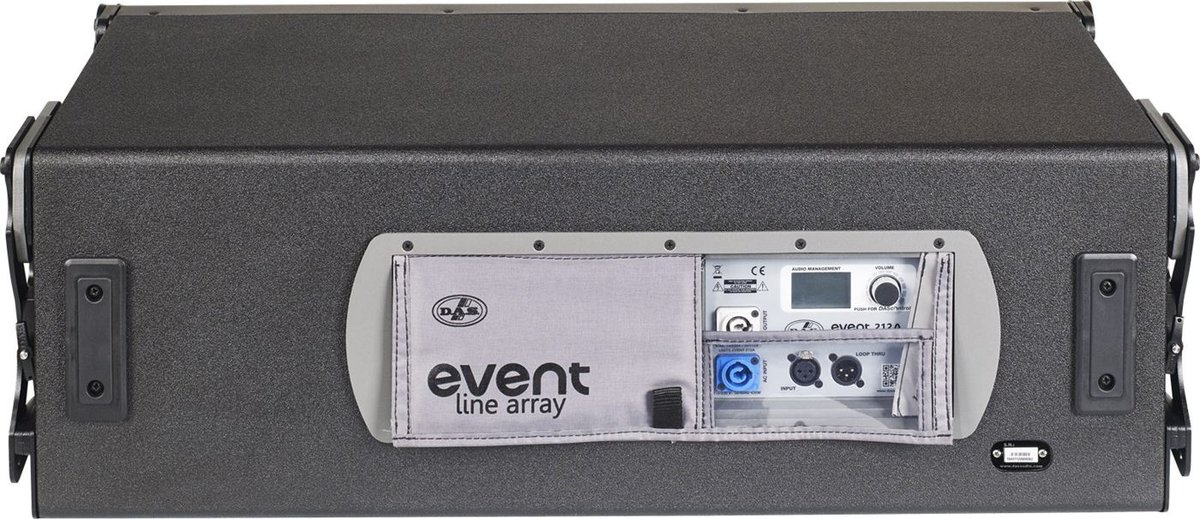

DAS Audio EVENT-212.120A Powered Line Array Module

The DAS Audio EVENT-212.120A is a powered line array module built around a 12-inch 12MI4 low-frequency driver with the M-75 compression driver on a BPS-120EV00 waveguide. It covers 60 Hz -20 kHz, and it reaches 136 dB peak at one metre. Nominal horizontal coverage is 120 deg.

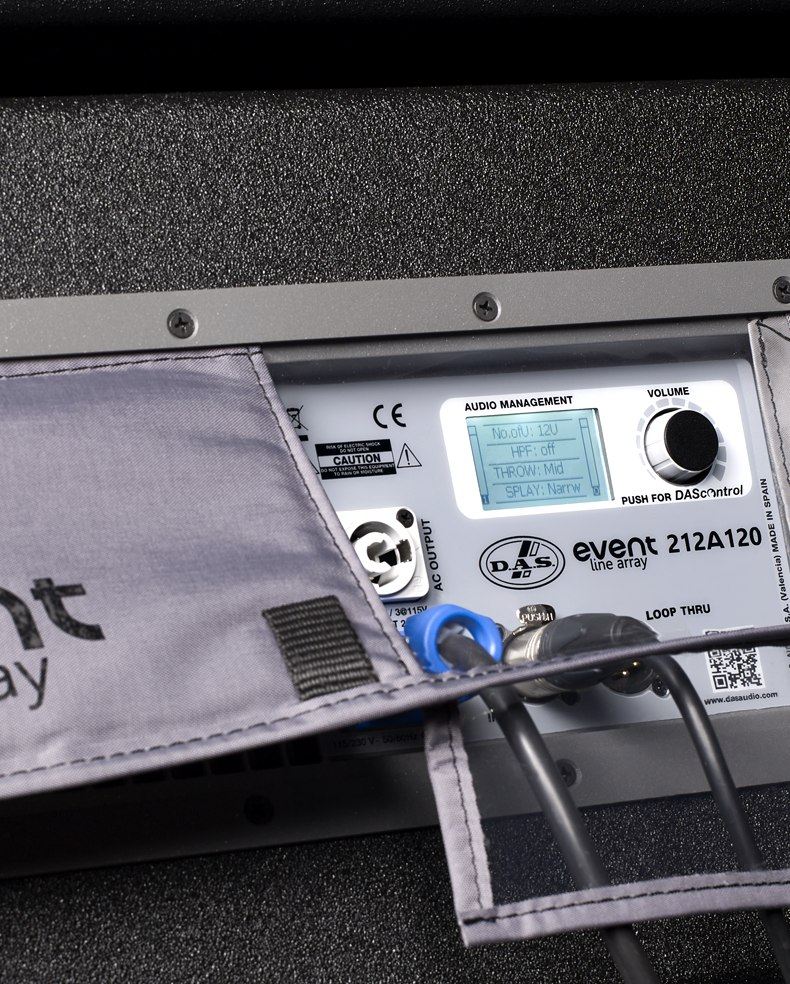

Amplification is on board and split per band: LF at 1000 W peak, MF at 1000 W peak, HF at 1000 W peak. Signal comes in on 1 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: Captive Rigging System. Net weight is 41.0 kg (90.4 lb).
