Crestron TSW-1070-RMB-4 Retrofit Mounting Bracket for TSW-1070 Series

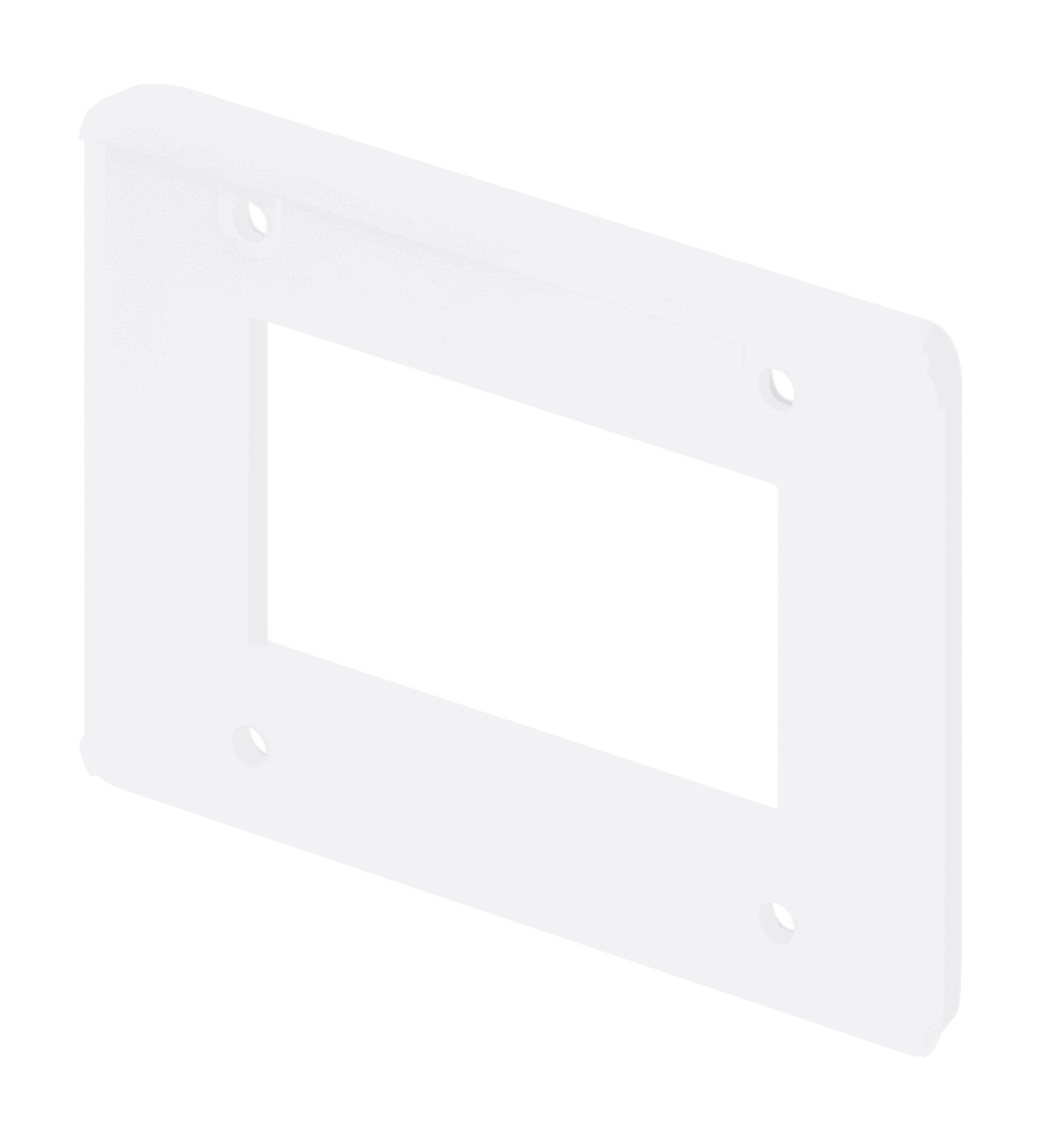

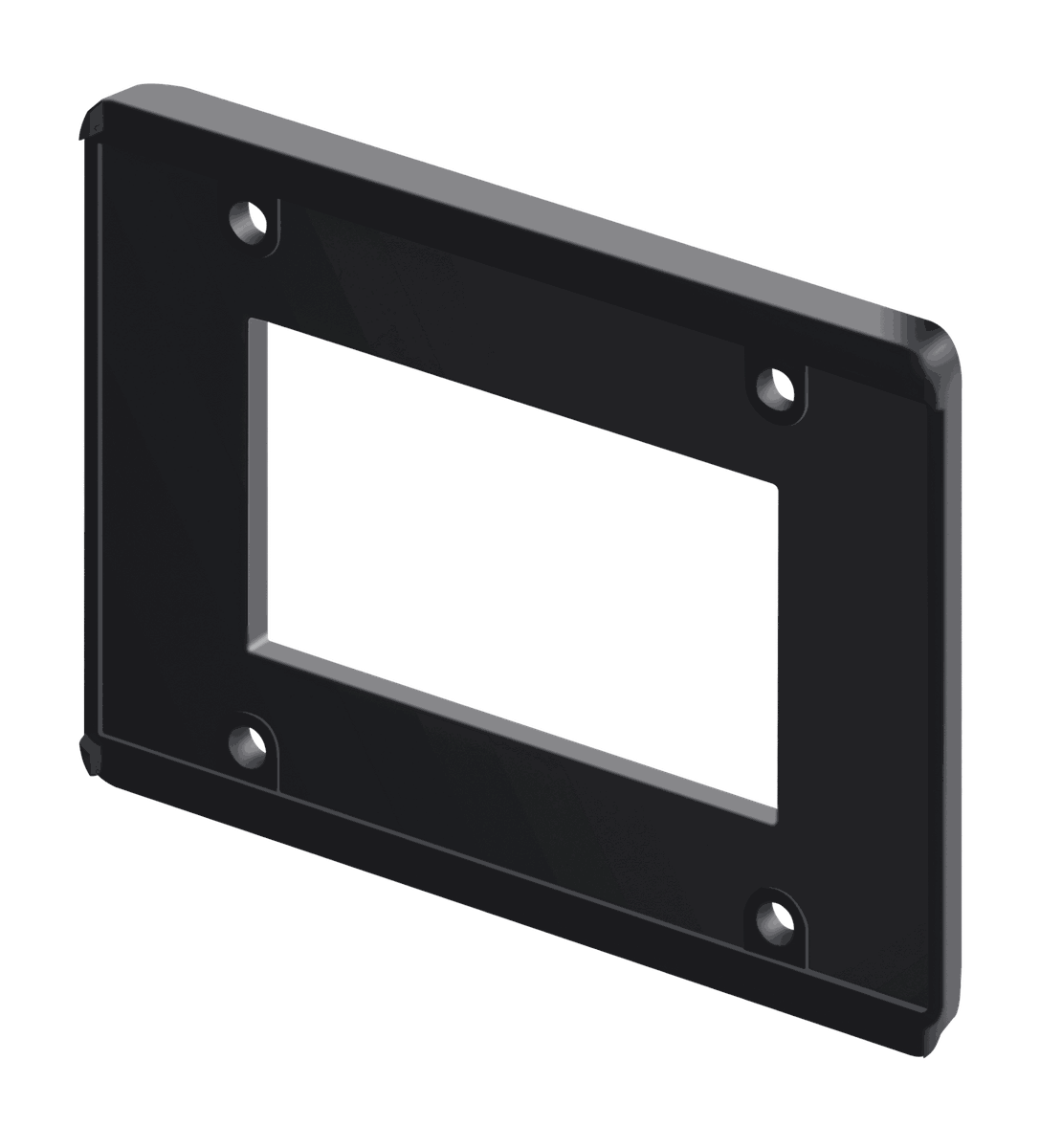

The TSW-1070-RMB-4 handles the specific case of a TSW-1060 or TSS-10 panel already mounted on a TSW-760/1060-MSMK multisurface kit, usually stuck to a glass wall. Rather than peeling the old adhesive mount off the glass and starting again, this plastic bracket installs into the existing MSMK with the provided hardware and accepts a current TSW-1070 or TSS-1070 series panel.
It is small and light, 4.33 by 5.94 in. and 0.31 in. thick at 1.44 oz, because all it does is bridge two generations of mounting pattern. Order it in black or white to match the panel that is going in.
| Function | Retrofit bracket adapting a TSW-760/1060-MSMK mount to a TSW-1070 or TSS-1070 panel |
|---|---|
| Material | Plastic bracket |
| Mounting | Installs into a TSW-760/1060-MSMK multisurface mount kit using provided hardware |
| Height | 4.33 in. (110 mm) |
| Width | 5.94 in. (151 mm) |
| Depth | 0.31 in. (8 mm) |
| Weight | 1.44 oz (41 g) |
