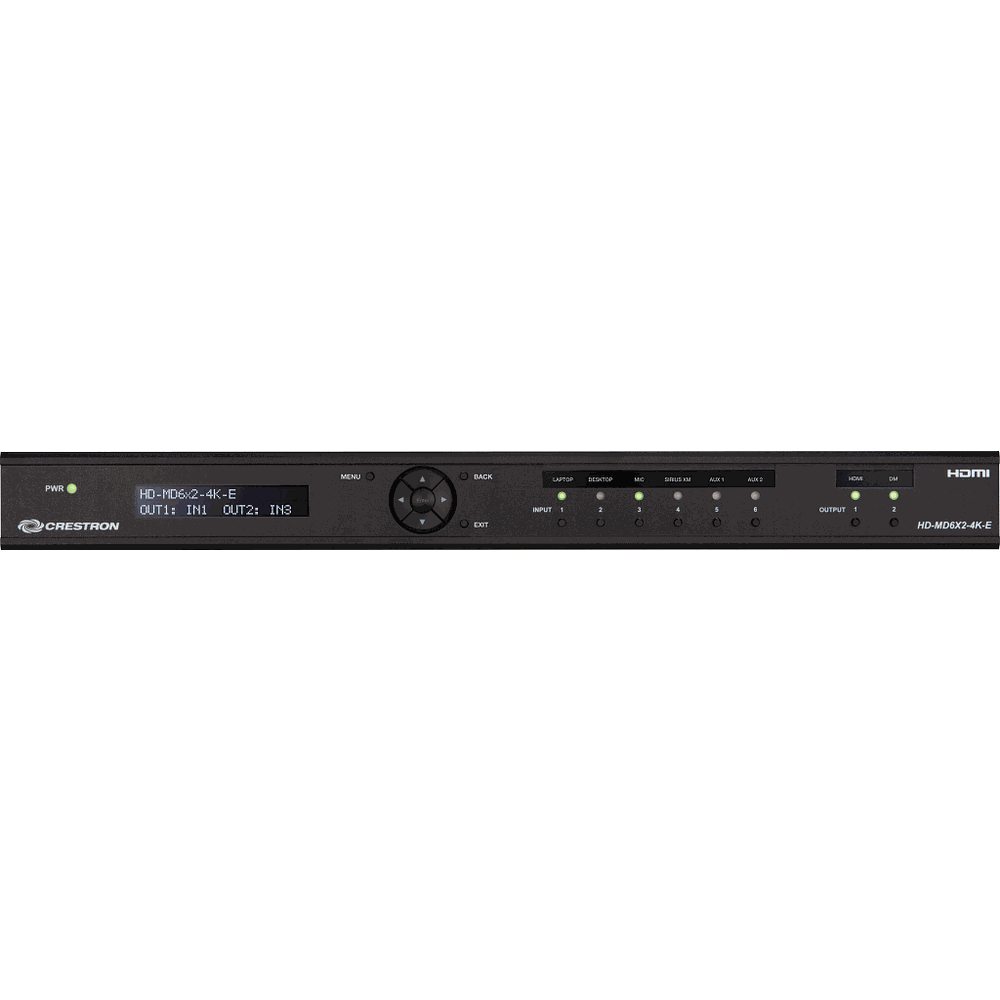

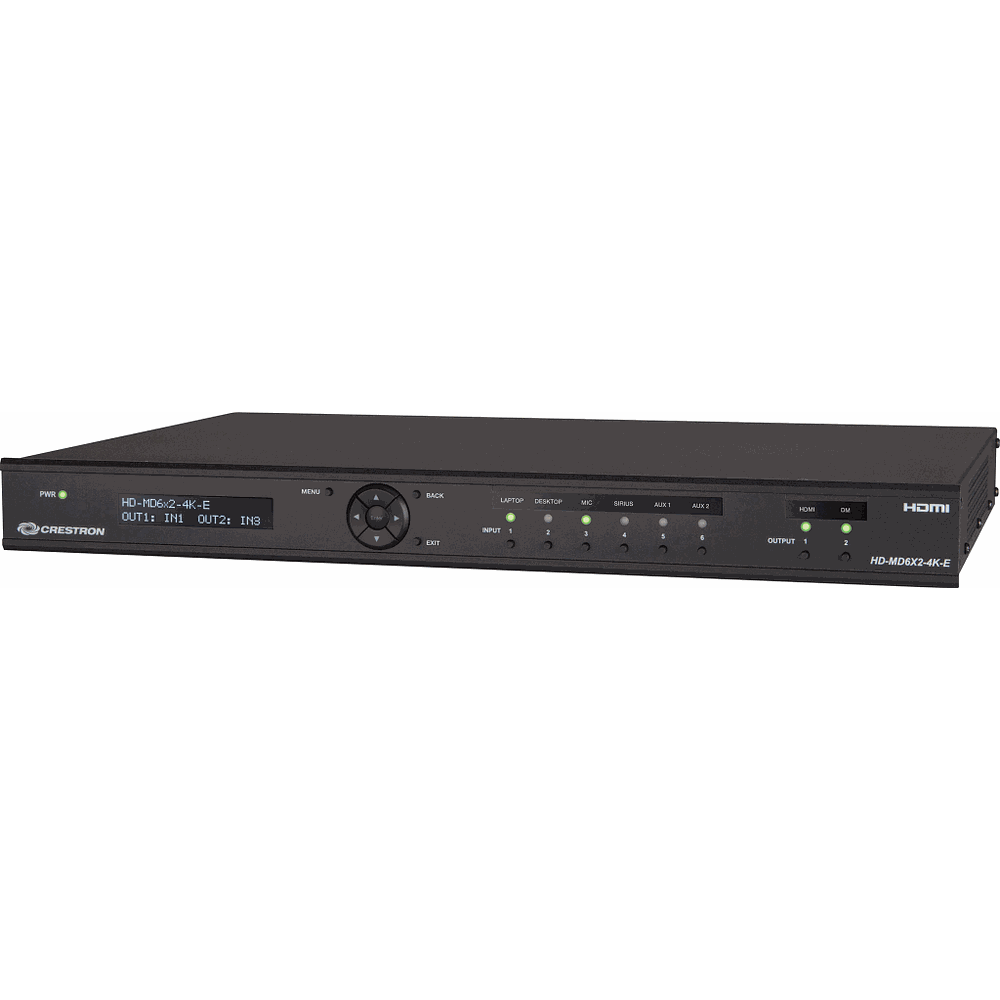

Crestron HD-MD6X2-4K-E 6x2 4K HDMI Switcher

The HD-MD6X2-4K-E switches six HDMI inputs to two HDMI outputs, handling Full HD 1080p, 2K, Ultra HD and 4K with HDCP, 3D, Deep Color and high-bitrate 7.1 audio. It is the straightforward answer for a boardroom with more sources than a small switcher can take.

Operation runs from the front panel controls, a web browser, or a Crestron control system, and setup is done through the front panel OLED display or the same browser page. That front panel is the reason it survives in rooms where the control processor is out of service.

Dimensions1.71 in (44 mm) H x 18.96 in (481 mm); 17.29 in (439 mm) without rack ears W x 10.83 in (275 mm) D
Features6x2 digital AV switcher, QuickSwitch HD technology, local or Web browser setup and control, Crestron controllable
Input Signal TypesHDMI w/Deep Color, 3D, & 4K (DVI & DisplayPort Multimode compatible)
Ethernet10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Web browser setup and control, Crestron control system...
OUTPUT 1 - 2(2) 19-pin Type A HDMI female; HDMI digital video/audio outputs; Also supports DVI
Display Type2x20 character alphanumeric OLED
Power Pack0.75 Amps @ 24 Volts DC; 100-240 Volts AC, 50/60 Hz power pack, model PW-2407WU included
Temperature32 deg to 104 deg F (0 deg to 40 deg C)

Resources and support

Compatibility helpCall (201) 791-1400 to confirm signal format, connections, and workflow fit. Crestron product familyContinue browsing the full Crestron range we carry.
