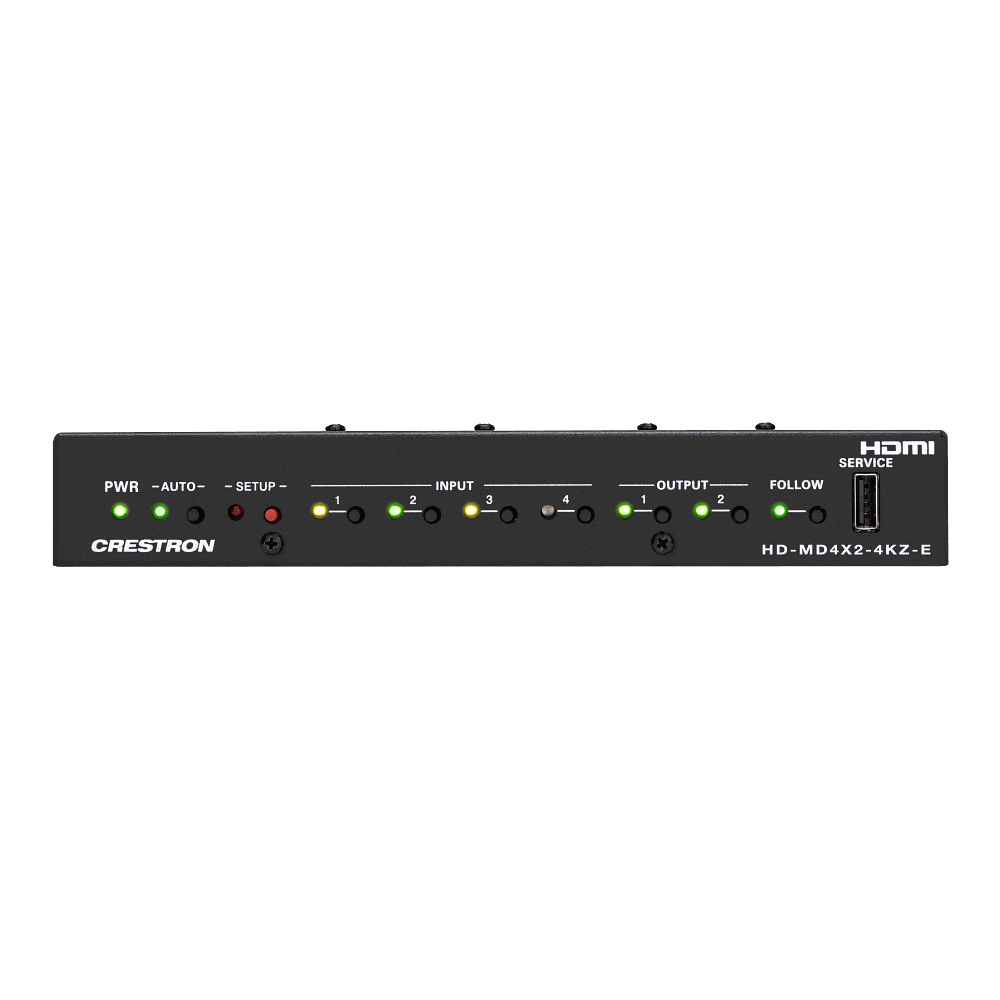

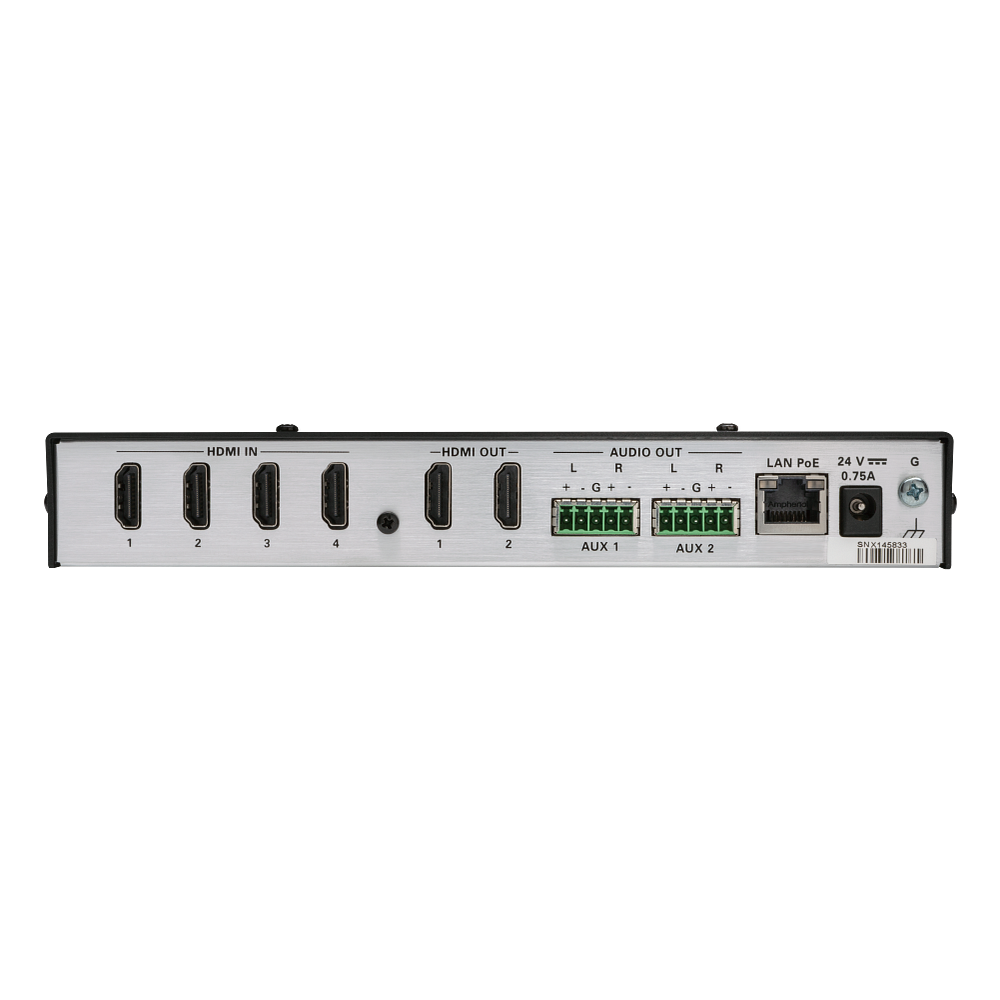

Crestron HD-MD4X2-4KZ-E 4x2 4K60 4:4:4 HDR AV Switcher
The HD-MD4X2-4KZ-E routes four HDMI inputs to two HDMI outputs at up to 4K60 with 4:4:4 color sampling, passing HDR10, HDR10+ and Dolby Vision. Two outputs cover the common cases a 4x1 cannot: a main display plus a confidence monitor, or two screens in a divisible room.
Automatic input switching, EDID management, HDCP 2.3 compliance and enterprise-grade security are standard, and XiO Cloud support brings remote monitoring and firmware updates. Programming is optional rather than required to get the room working.
- Dimensions8.52 in. H x 7.0 in. W x 1.34 in. D
- Output Signal TypesHDMI with HDR10, HDR10+, Dolby Vision, Deep Color
- Input Signal TypeHDMI (Dual-Mode DisplayPort interface compatible)
- Output Signal TypeHDMI
- Output Signal Type/FormatStereo 2-channel
| Dimensions | 8.52 in. (217 mm) H x 7.0 in. (178 mm) W x 1.34 in. (34 mm) D |
|---|---|
| Input Signal Types | with HDR10, HDR10+, Dolby Vision, Deep Color, 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible) |
| Output Signal Types | HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support(DVI compatible) |
| Digital-To-Analog Conversion | 24-bit 48 kHz |
| Input Signal Type | HDMI (Dual-Mode DisplayPort interface compatible) |
| Output Signal Type | HDMI |
| Output Signal Type/Format | Stereo 2-channel |
| Ethernet | 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Web browser setup and control, Crestron control system... |
| Weight | 1.8 lb (0.82 kg) |
| Power | 12 W typical |
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
