Crestron AM-TX3-200 AirMedia Connect Endpoint
The AM-TX3-200 is the AirMedia Series 3 Connect endpoint: the puck on the table that a presenter plugs into and presses. It accepts HDMI or DisplayPort Alt Mode over USB-C, streams to a paired AirMedia Series 3 receiver over dual-band Wi-Fi 6 or wired Ethernet, and needs no client software on the guest machine.
Range is up to 70 ft at 80 Mbps depending on the site, and a USB-C port on the endpoint passes room peripherals back through to the connected computer. Windows 10 and 11 and macOS 11 or newer are supported. Sources are scaled to whatever output resolution the paired receiver is set to.
| Wi-Fi | Dual-band Wi-Fi 6, 802.11a/b/g/n/ac/ax (2.4 GHz and 5 GHz), up to 70 ft (23 m) at 80 Mbps |
|---|---|
| Ethernet | 100/1000 Mbps, 802.3at compliant |

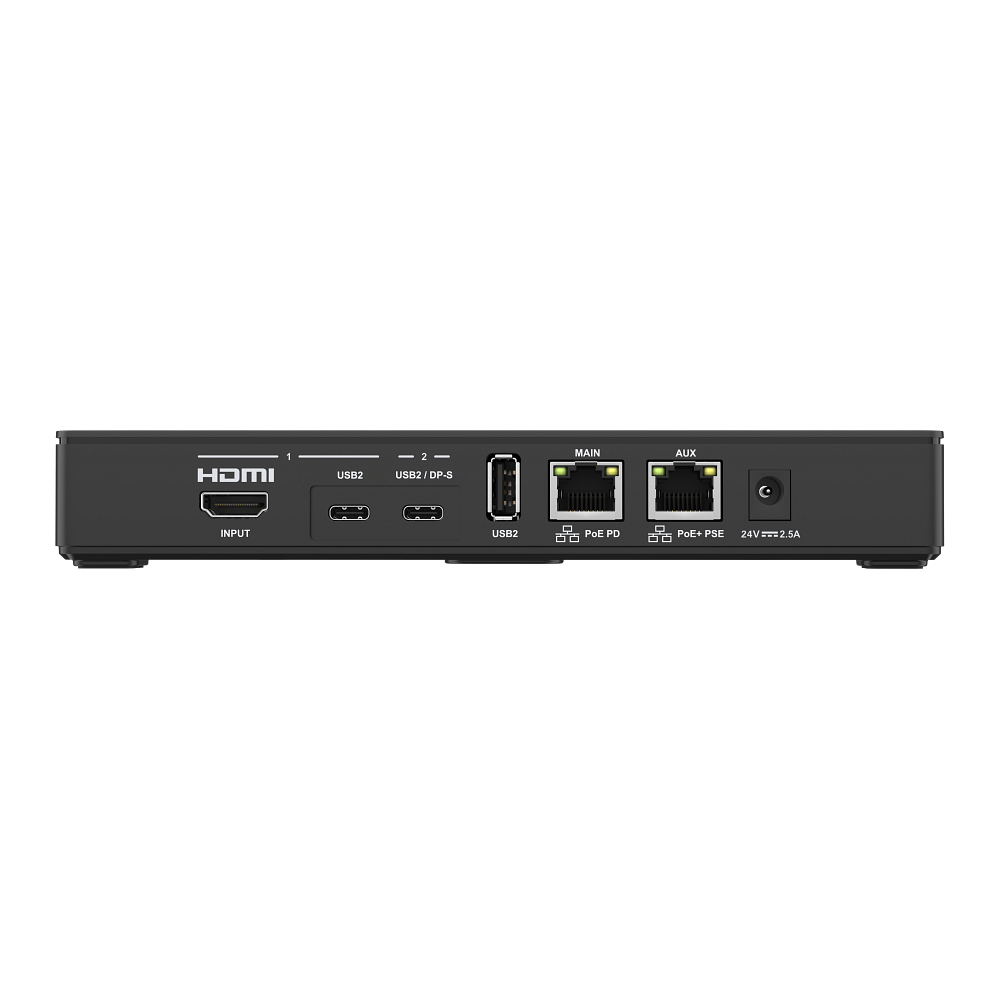

| Input Signal Types | HDMI; DisplayPort Alt Mode over USB-C |
| Maximum Resolution | 3840x2160@30Hz (2160p30) |
| Audio Format | 2 channel LPCM |
| Peripheral Pass-Through | (1) USB-C connector, USB 2.0, provides access to room peripherals |
| OS Support | Windows 10, Windows 11, macOS 11 or newer |
